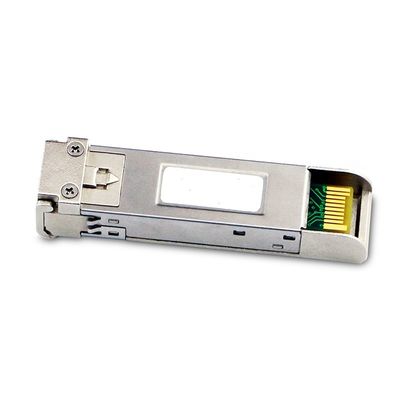

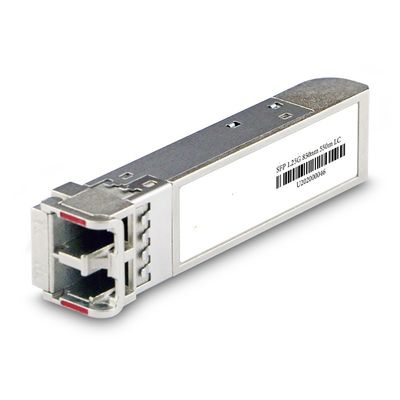

4.25G SW MMF Fiber Channel SFP Module Transceivers 850nm 300m With LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 50000 per month |
|
Detail Information |
|||
| Part Number: | SFP-FC4G | Vender Name: | OEM |
|---|---|---|---|
| Data Rate: | 4.25G | Wavelength(nm): | 850nm |
| Highlight: | 4.25G Fiber Channel SFP,SW Fiber Channel SFP,MMF SFP Module 850nm |
||
Product Description
Fiber Channel Sfp Transceivers 4.25G SW MMF 850nm 300m With Lc Connector
ColorOptics’ transceiver modules are high performance, cost effective modules supporting data rate of 4.25Gbps. Link lengths at 4.25Gbps:150 m with 50 um MMF, 70 m with 62.5 um MMF. Link lengths at 2.125Gbps: 300 m with 50 um MMF, 150 m with 62.5 um MMF. Link lengths at 1.0625Gbps:500 m with 50 um MMF, 300 m with 62.5 um MMF. The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photo diode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Product Details
| Part No. | SFP-4G | Form Factor | SFP |
| Data Rate | 4.25Gb/s | Distance | 300m |
| Wavelength | 850nm | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | MMF | DDM | Yes |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | .-9.0~0dBm | Receiver Sensitivity | <-15dBm |
| Protocols | MSA Compliant | Warranty | 3 years |
Key Features
Supports up to 4.25Gbps bit rates Hot-pluggable SFP footprint 850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
Application
4.25Gbps Fibre Channel operation for FC-PI 400-M5-SN-I and 400-M6-SN-I
2.125Gbps Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
1.0625Gbps Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I Other Optical links
