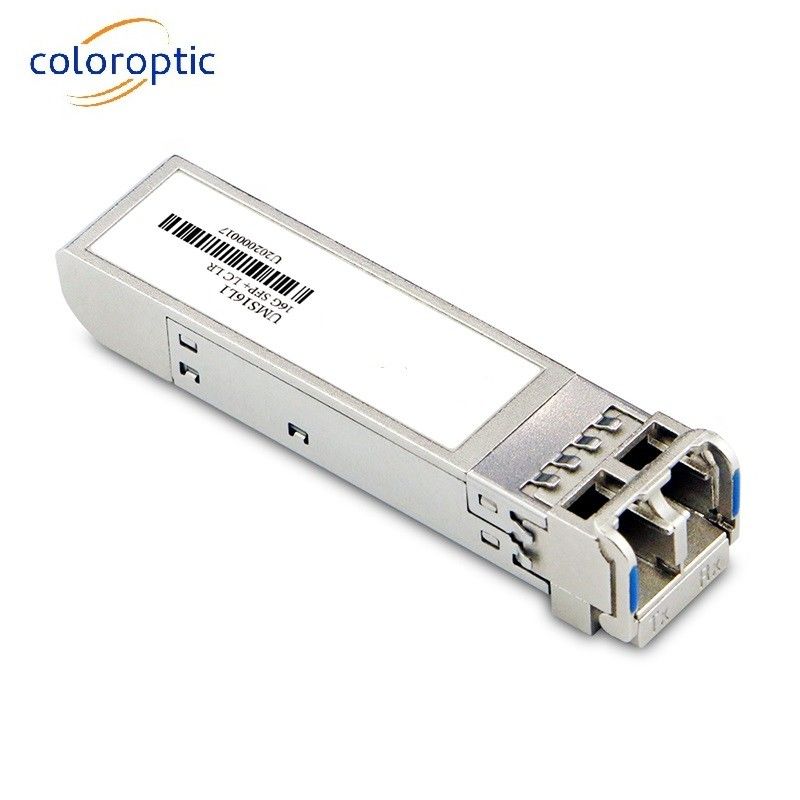

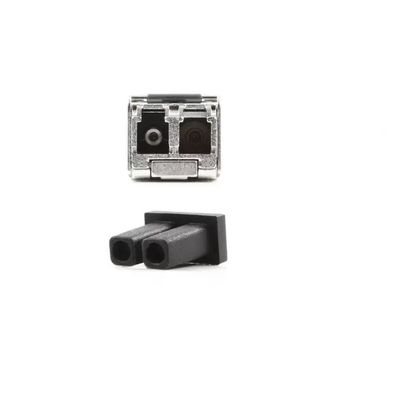

16G SFP28 LR Fiber Channel Transceivers Dual Fiber Distance Up To 10km
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-S81613LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Package: | Standard/Customized | Interface Type: | SFP+/SFP28 |
|---|---|---|---|
| Product Type: | Fiber Channel Transceivers | Application: | Tri-Rate / Fibre Channel |
| Power Supply: | 3.3V | Cable Type: | SMF |
| Warranty: | 3 Years | Wavelength: | 1310nm |
| Highlight: | 16G Fiber Channel Transceivers,10km Fiber Channel Transceivers,16G SFP28 Transceiver Module |
||
Product Description
Fiber Channel Transceivers 16G SFP28 LR Dual Fiber Distance Up To 10km
Product Description:
We provide 16G FC SFP28 LR, Compliant to FC-PI-5, . Our Fiber Channel Transceivers deliver superior performance and are designed to ensure the highest level of reliability and data integrity. They are designed to provide high-speed data transmission, and are suitable for use in high-density environments.
Features:
- Compliant to FC-PI-5 (16GFC)
- Up to 28.05Gb/s data links
- 1310nm DFB transmitter
- PIN photo-detector
- 2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
- Operating case temperature: 0 to 70°C
- All-metal housing for superior EMI performance
- Electrical interface compliant to FC-PI-5 ( 16GFC)
- Maximum power consumption 1.3W
- Advanced firmware allow customer system encryption information to be stored in transceiver
- RoHS compliant
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 10 | km | OM3/OM4 | |
| Power Consumption | 1.3 | W | ||||
| Center Wavelength | λC | 1295 | 1325 | nm | ||
| Average Launch Power | PAVG | -5 | 2 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter) |
POMA | -2 | dBm | |||
| Average Receive Power | 2 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | -11.4 | dBm |
Applications:
Color Optic CO-S81613LC Fiber Channel Transceivers are high performance optical transceivers, designed for use in Fibre Channel applications. They are compliant with the SFF-8472 and SFF-8432 standard and support data rates from 8G to 32G. These transceivers are available in three different wavelengths ( 1310nm) and are provided with standard and customized packages. They are suitable for Tri-Rate and Fibre Channel applications.
