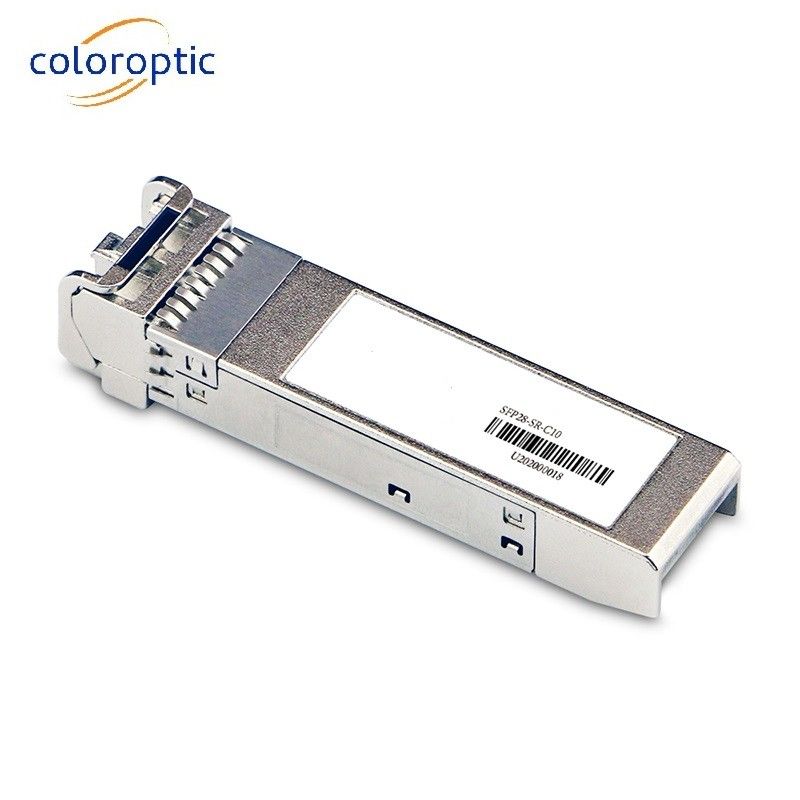

Single Mode Fiber Fiber Channel Transceivers DDM 8G FC SFP28 LR 10km
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-S80813LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Power Supply: | 3.3V | Connector: | LC |
|---|---|---|---|
| Wavelength: | 1310nm | Fiber Type: | Single-mode |
| Temperature Range: | -40~85℃ | Data Rate: | 8G |
| Cable Type: | SMF | Interface Type: | SFP28 |
| Highlight: | DDM Fiber Channel Transceivers,SFP28 Fiber Channel Transceivers,8G Single Mode Fiber Transceivers |
||
Product Description
Fiber Channel Transceivers 8G SFP28 LR 10km DDM Single Mode Fiber FC Applications
Product Description:
This 1310 nm DFB 8Gb/s SFP28 LR transceiver is designed for use in Fibre Channel links to transmit and receive optical data over single mode optical fiber for link length up to 10km. The module optical connection is duplex LC and shall be compatible with SFP28 8Gbps and backward compatible with legacy 10G SFP+ pluggable. The 8GFC SFP28 LR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function. The module operates by a single +3.3V power supply. The 8GFC SFP28 LR module electrical interface is compliant to FC-PI-5. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Features:
- Compliant to FC-PI-5 (8GFC)
- Up to 28.05Gb/s data links
- 1310nm DFB transmitter
- PIN photo-detector
- 2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
- Operating case temperature: 0 to 70°C
- All-metal housing for superior EMI performance
- Electrical interface compliant to FC-PI-5 (8GFC )
- Maximum power consumption 1.3W
- Advanced firmware allow customer system encryption information to be stored in transceiver
- RoHS compliant
Technical Parameters:
| Part No. | CO-S80813LC | Form Factor | SFP+ |
| Data Rate | 8.25G/ps | Distance | 10KM |
| Wavelength | 1310nm | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | 1310nm DFB | Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm | Receiver Sensitivity | < -14.4dBm |
| Protocols | MSA Compliant | Warranty | 3 years |
Applications:
Color Optic's CO-S80813LC Fiber Channel Transceivers are the ideal choice for mission-critical networks that require reliable performance and superior EMI performance. The transceivers come with 8G FC SFP28 LR, a distance of up to 10km, and a temperature range of -40~85℃. The LC/MTP connector ensures a secure connection and allows the use of both single-mode fiber and multi-mode fiber. Furthermore, customers receive a three year warranty with the CO-S80813LC, making it the most reliable choice for your data center network.
