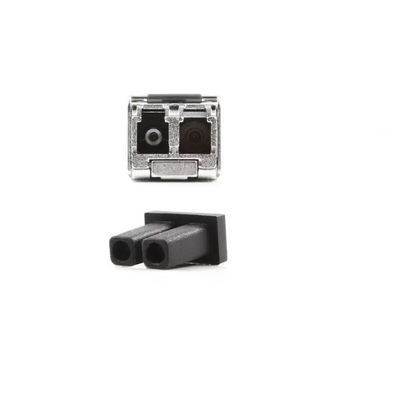

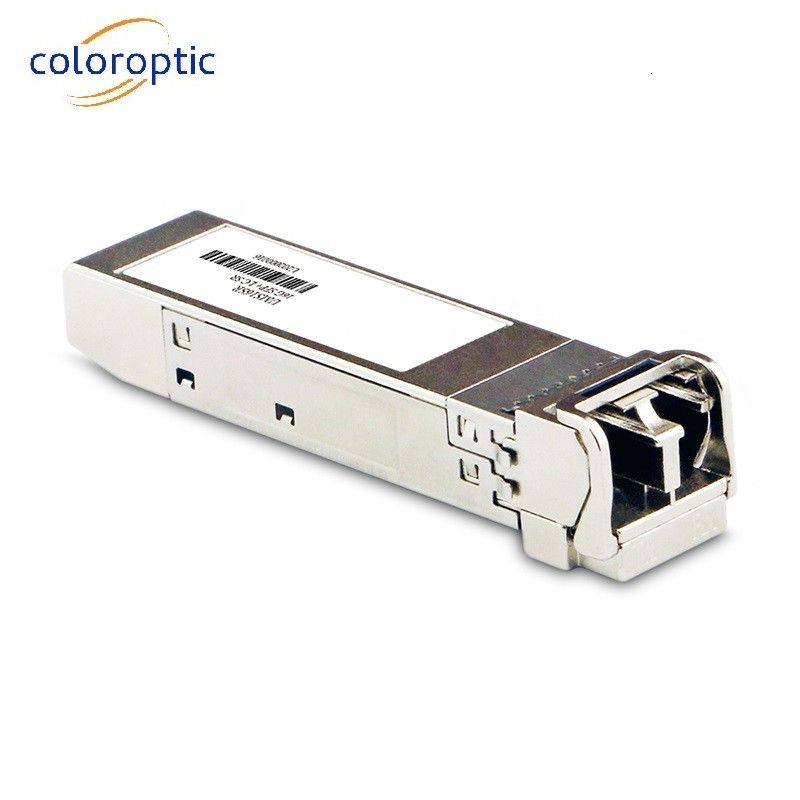

32G SFP28 LR Fiber Channel Transceivers 1310nm Wavelength LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-S83213LC |
|
Detail Information |
|||
| Cable Type: | SMF | Data Rate: | 8G/16G/32G |
|---|---|---|---|
| Power Supply: | 3.3V | Temperature Range: | -40~85℃ |
| Warranty: | 3 Years | Distance: | 10km |
| Package: | Standard/Customized | Connector: | LC |
| Highlight: | 32G Fiber Channel Transceivers,Fiber Channel Transceivers 1310nm |
||
Product Description
Fiber Channel Transceivers 32G SFP28 LR 1310nm Wavelength LC Connector
Product Description:
Fiber Channel Transceivers 32G SFP28 transceivers are high performance, cost effective modules supporting data rate of 28.05Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Features:
- Compliant to FC-PI-5 (8GFC and 16GFC) and FC-PI-6(32GFC)
- Up to 28.05Gb/s data links
- 1310nm DFB transmitter
- PIN photo-detector
- 2-wire interface for management specifications
- compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
- Operating case temperature: 0 to 70°C
- All-metal housing for superior EMI performance
- Electrical interface compliant to FC-PI-5 (8GFC and 16GFC) and FC-PI-6 (32GFC)
- Maximum power consumption 1.3W
- Advanced firmware allow customer system encryption information to be stored in transceiver
- RoHS compliant
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 10 | km | OM3/OM4 | |
| Power Consumption | 1.3 | W | ||||
| Center Wavelength | λC | 1295 | 1325 | nm | ||
| Average Launch Power | PAVG | -5 | 2 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter) |
POMA | -2 | dBm | |||
| Average Receive Power | 2 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | -11.4 | dBm |
Applications:
16G FC / 32G FC Fiber channel.
