16G SFP28 SR Fibre Channel Transceivers 70m / 100m With Digital Diagnostic Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-SP1685SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
|
Detail Information |
|||
| Cable Type: | MMF | Transmission Media: | Multi-mode Fiber |
|---|---|---|---|
| Power Supply: | 3.3V | Application: | Fibre Channel |
| Connector: | LC | Distance: | 100m |
| Wavelength: | 850nm | Product Type: | Fiber Channel Transceivers |
| Highlight: | SFP28 Fibre Channel Transceivers,Fibre Channel Transceivers 70m |
||
Product Description

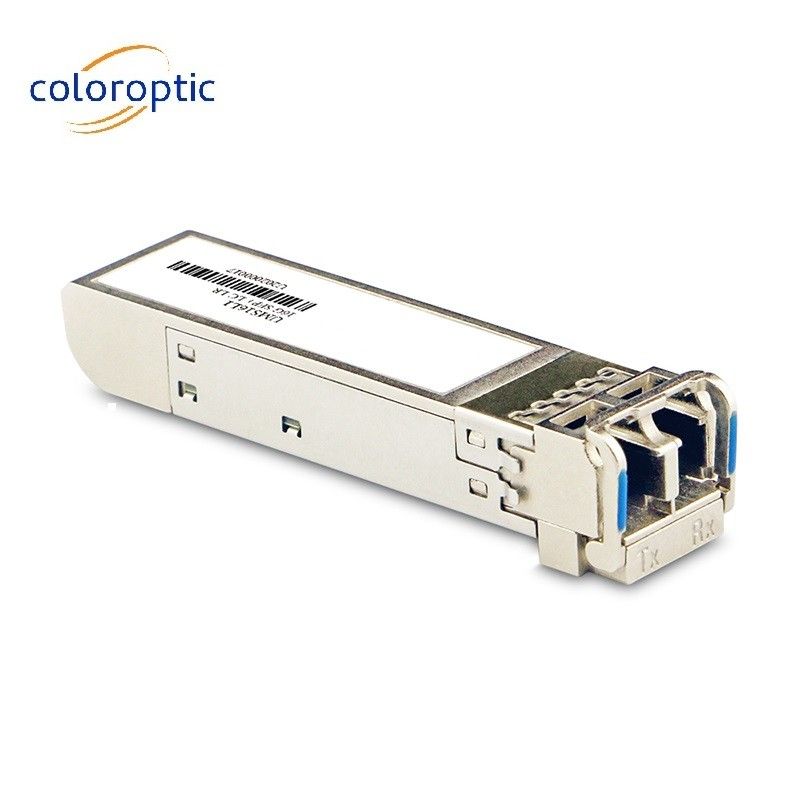

Fiber Channel Transceiver 16G SFP28 SR 70m/100m (OM3/OM4) With Digital Diagnostic Monitoring
Product Description:

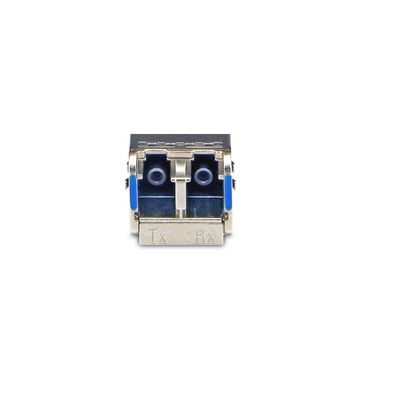

The 16GFC SFP28 SR is a tri-rate module with an operating range of 0.5m to 70m/100m over OM3/OM4 MMF (Table 1), respectively, compliant with FC-PI-6 optical specs. The module optical connection is duplex LC and shall be compatible with SFP28 16Gbps and backward compatible with legacy 10G SFP+ pluggable. The SFP28 SR module is a dual directional device with a transmitter and receiver plus a control management interface (2-wire interface) in the same physical package. 2-wire interface is used for serial ID, digital diagnostics and module control function
Features:
- Compliant to FC-PI-5 (16GFC)
- Up to 28.05Gb/s data links
- 850nm VCSEL transmitter
- PIN photo-detector
- 2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
- Operating case temperature: 0 to 70°C
- All-metal housing for superior EMI performance
- Electrical interface compliant to FC-PI-5 (16GFC)
- Maximum power consumption 1.0W
- Advanced firmware allow customer system encryption information to be stored in transceiver
- RoHS compliant
Technical Parameters:
| Part No. | SFP-16MM85-1HC | Form Factor | SFP+ |
| Data Rate | 14G/ps | Distance | 100M |
| Wavelength | 850nm | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | MMF | DDM | Yes |
| Transmitter Type | VCSEL 850nm | Receiver Type | PIN |
| TX Power | -7.8~-0.5dBm | Receiver Sensitivity | < -10.5dBm |
| Protocols | MSA Compliant | Warranty | 3 years |
Applications:
Fiber Channel Transceivers, compliant to FC-PI-5
