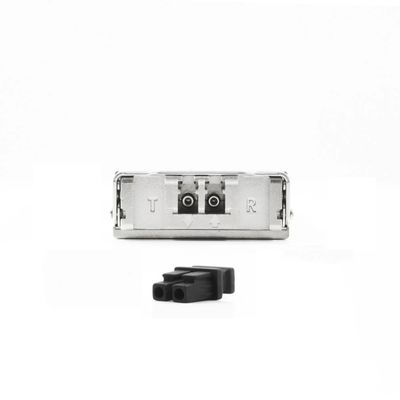

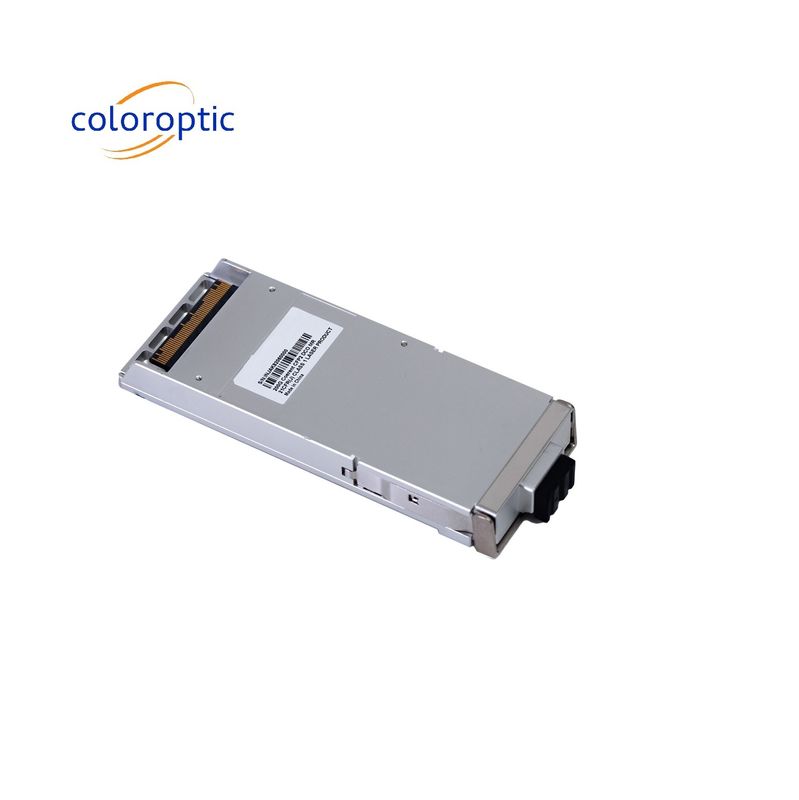

200G MR 200G CFP2 Coherent DCO Transceiver With 7nm NEL DSP Flex Grid
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-C22HCOMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 200G | Wavelength: | Coherent |
|---|---|---|---|
| Distance: | 80~up Km | Connector: | Duplex LC |
| Form Factor: | CFP2 | Temperature: | 0~70°C |
| DDM: | Yes | Voltage: | 3.3V |
| Protocals: | MSA | Warranty: | 3 Years |
| Highlight: | 200G CFP2,Coherent DCO Transceiver,CFP2 DCO Transceiver |
||
Product Description
200G MR Coherent 200G CFP2 DCO Transceivers With 7nm NEL DSP Flex Grid
This is CFP2-DCO pluggable transceiver is a CFP2 MSA-compliant digital coherent optical module designed for line-side trunk DWDM data center interconnect (DCI), metro carrier, and regional/long haul applications. CFP2-DCO module adopts a common C-band flex-grid laser source providing both transmitter and local oscillator signals, calibrated to provide 100 MHz frequency accuracy, and ±6 GHz local off-grid tuning.
Key Features
Supports 100 Gbps DP-QPSK and 200 Gbps, DP-16QAM modulations Flexible client side interfaces supporting: OTL4.4 signaling for OTU4 frames with G.709 FEC and OTU4/ODU monitoring; CAUI-4 signaling for 100G Ethernet with RMON counter module Interoperable staircase FEC and low latency 15% soft decision-FEC support Support for Nyquist spectral shaping and digitally compensated CD and PMD Flex-grid DWDM support with gridless tuning (100 MHz resolution) Embedded PRBS generator/analyzer for line and client interfaces and loopback of incoming and outgoing traffic Standard CFP2 form factor module outline (106 x 41.5 x 12.4 mm) Operating case temperature from 0°C to +70°C Single 3.3 V supply.
Application
100G Ethernet OTU4 Long-haul Metro DCI 5G Backhaul
Product Details
Parameter |
Symbol |
Min |
Typical |
Max |
Units |
Note |
Operating Case Temperature |
TOP |
0 |
|
70 |
degC |
|
Operating Input Optical Power of Signal |
Psig |
-18 |
|
0 |
dBm |
|
Transmitter output power range |
Pout |
-5 |
0 |
5 |
dBm |
|
Frequency Range |
f |
191.3 |
|
196.1 |
THz |
|
Receiver Sensitivity |
SEN |
|
|
-21 |
dBm |
|
OSNR sensitivity |
OSNR |
|
19.5 |
|
dB/0.1nm |
|
Power Consumption |
|
|
|
24 |
W |
|
|
|
