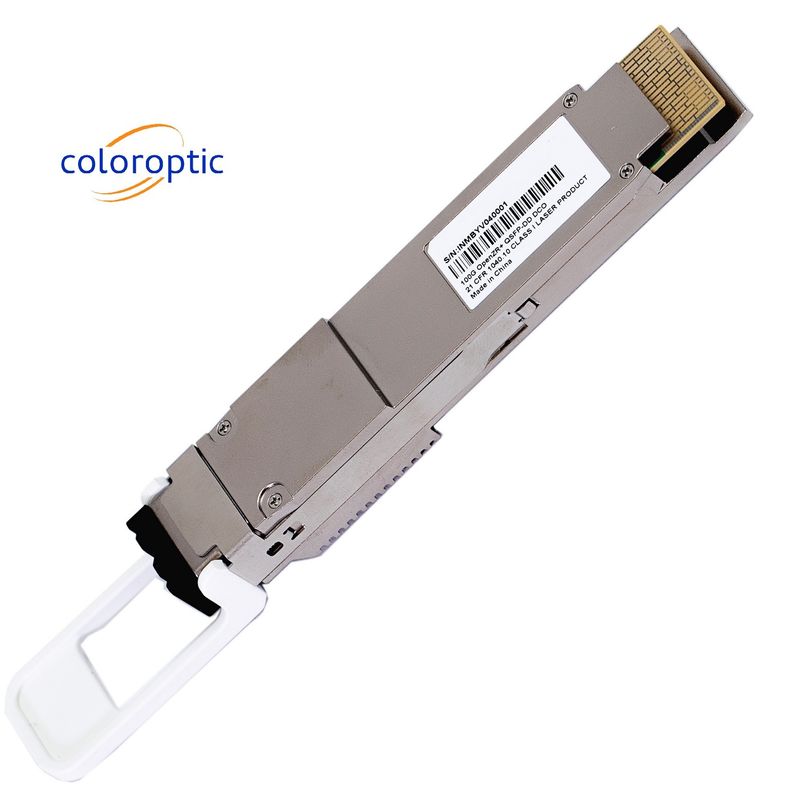

100Gbps Coherent Optical Module QSFP-DD 100G ZR OFEC-QPSK Fixed Laser
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD1HDCZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 7 DAYS |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 pieces/month |
|
Detail Information |
|||
| Warranty: | 3 Years | Application: | Long Houl Transmission |
|---|---|---|---|
| Form Factor: | QSFP-DD | Storage Temperature: | 0℃~+70℃ |
| Data Rate: | 100Gbps | Modulator: | 16-QAM |
| Optical Power: | -5dBm | Transmission Distance: | 80km |
| Highlight: | 100Gbps Coherent Optical Module,Coherent Optical Module QSFP-DD |
||
Product Description
Coherent Optical Module 100Gbps QSFP-DD 100G ZR OFEC-QPSK Fixed Laser for Ethernet ZR connectivity
Product Description:
The ColorOptic's QSF-DD 100G ZR supports a 100GBASE-R client interface over an optical link length of up to 80 km over a standard pair of G.652 single-mode fiber with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over a single coherent wavelength in the C-band spectrum region.
It is also possible to extend beyond 80 km leveraging on external amplification, providing the CD robustness specification are not exceeded.
Features:
- Product Name: Coherent Optical Module
- Storage Temperature: 0℃~+0℃
- Form factor: QSFP-DD
- Optical Power: -5dBm
- Application: Long houl Transmission
- Modulator: 16-QAM
- COHERENT QSFP-DD
- WDM Digital
- DIGITAL QSFP-DD
Technical Parameters:
Optical Specifications
| Payload Rate | Line Mode | Symbol Baud Rate | Modulation | Tx Power | FEC | TX Wavelength |
| 100G | 100G-100ZR-OFEC-QPSK | 30.07 Gbaud | 16QAM | -5 dBìm | OFEC | 193.7 Thz |
RX Optical Specifications
| Payload Rate | Line Mode | RX Sensitivity High OSNR | RX OSNR Sensitivity | CD Robustness | DGD Robustness |
| 100G | 100G-100ZR-OFEC-QPSK | -32 dBm | 14 dB (Typ) | +/-2400 ps/nm | 40 ps |
Applications:
The COHERENT QSFP-DD OPTICAL MODULE from Color Optic is a perfect fit for customers requiring high-speed data rates and long-distance transmission capabilities. Its advanced features and superior performance make it the ideal choice for customers who need a reliable, efficient, and high-performance DWDM transmission solution.
Packing and Shipping:
Coherent Optical Module (COM) is an expensive and delicate product, so careful packaging and shipping is essential to ensure its safety during transit.
COMs are typically packaged in shock-resistant boxes that are also moisture-proof and anti-static. The box should include sufficient cushioning material to protect the product from vibrations and shocks during transit. Depending on the size of the module, it might also be necessary to use an additional layer of cushioning material between the box and the product.
COMs should be shipped using a reliable and fast shipping carrier. Where possible, it is recommended to opt for express delivery services and to track the shipment during transit. Also, it is important to note that COMs must be handled with care, as even minor damage to the product can render it unusable.
FAQ:
A5: Color Optic Coherent Optical Module (Model Number: CO-QD1HDCZ) has a wavelength range of 1310nm and 1550nm.
