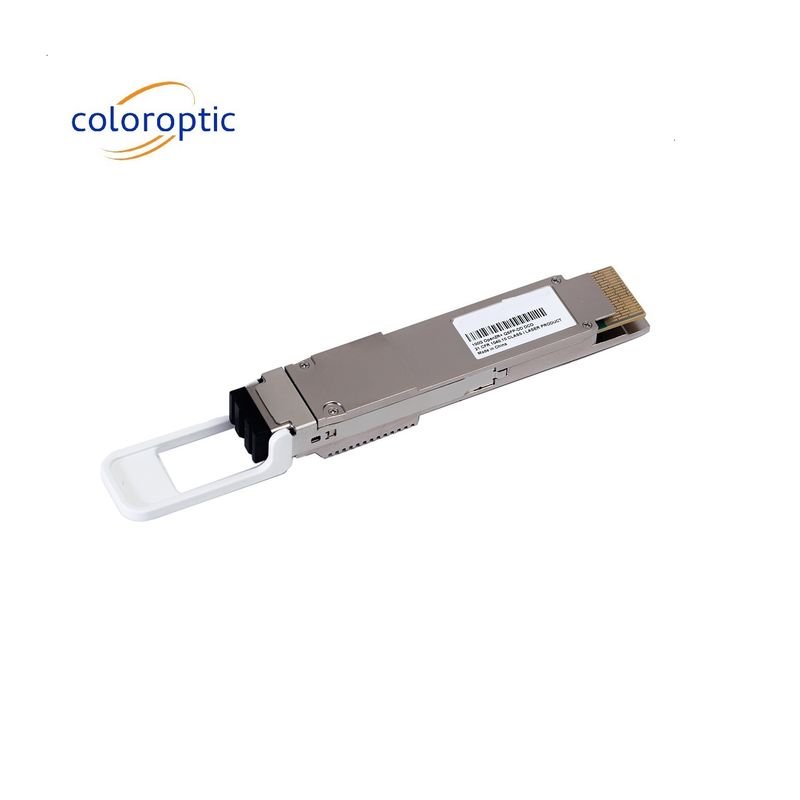

100G OpenZR+ MSA QSFP-DD DCO Transceiver Marvell DSP Flex Grid
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD1HCOZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | Coherent |
|---|---|---|---|
| Distance: | 120 Km | Connector: | Duplex LC |
| Form Factor: | CFP2 | Temperature: | 0~70°C |
| DDM: | Yes | Voltage: | 3.3V |
| Protocals: | MSA | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | OpenZR+ |
| Highlight: | QSFP-DD DCO Transceiver,100G QSFP-DD DCO,OpenZR+ MSA Transceiver |
||
Product Description
100G OpenZR+ MSA QSFP-DD DCO transceiver Marvell DSP flex grid
This is 100G QSFP-DD DCO modules based on DP-QPSK supporting extended C-band, polarization diversity coherent detection and advanced electronic link equalization. Chromatic dispersion compensation can be applied to the receive side of the demodulator. This module is managed utilizing the Two Wire Interface that is specified in the Common Management Interface Specification (CMIS).
Key Features
Application
Product Details
| 100G QSFP-DD DCO | |||||||
| Features: |
|
||||||
| 7nm Marvell DSP | |||||||
| C band:191.3 ~ 196.1THz, Flex Grid | |||||||
| Support Line side: | |||||||
|
100G DP-QPSK SCFEC |
|||||||
| Support Flexible client-side: | |||||||
| OTL4.4/CAUI-4 | |||||||
| Compliant to CMIS5.0 | Applications: | ||||||
| Compliant to OIF Coherent CMIS1.1 | •OTN | •DCI | |||||
| l Standard QSFP-DD type 2 form factor | •Metro | ||||||
| l 76pin QSFP-DD MSA connector | |||||||
| l 0~70℃ case temperature | |||||||
| l Hot Swappable | |||||||
| Main Parameters: | |||||||
| Parameter | Symbol | Min | Typical | Max | Units | Note | |
| Operating Case Temperature | TOP | 0 | 75 | degC | |||
| Operating Input Optical Power of Signal | Psig | -18 | 0 | dBm | |||
| Frequency Range | f | 191.3 | 196.1 | THz | |||
| Receiver Sensitivity | SEN | -30 | dBm | ||||
| OSNR sensitivity | OSNR | 14 | dB/0.1nm | ||||
| Power Consumption | 14 | W | |||||
