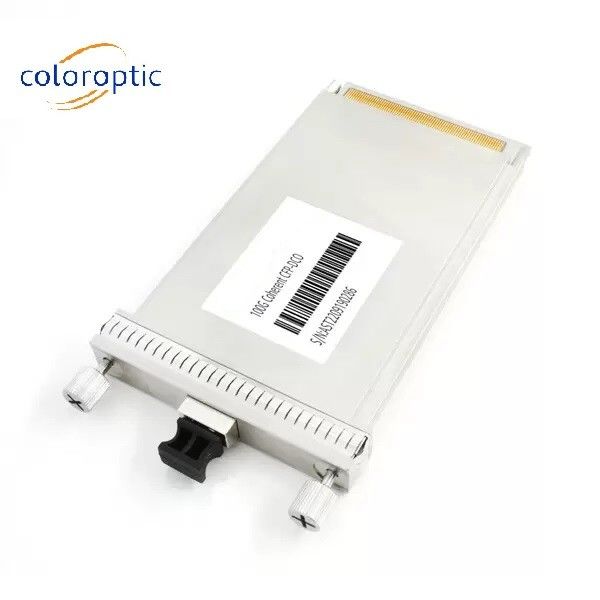

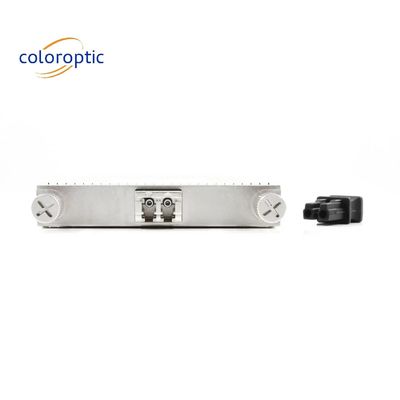

100G CFP DCO Coherent Transceivers For High Capacity 100Gbps Data Centers
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-C11HDCZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 3 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Transmission Distance: | 120km | Operating Temperature: | 0℃~+70℃ |
|---|---|---|---|
| Form Factor: | CFP | Storage Temperature: | -40℃~+85℃ |
| Product Name: | Coherent Optical Module | Warranty: | 3 Years |
| Modulator: | 8/16-QAM; QPSK | Data Rate: | 100Gbps |
| Highlight: | Coherent Transceivers 100Gbps,CFP Coherent Transceivers,100G CFP DCO |
||
Product Description
100G CFP DCO Coherent Transceivers For High-Capacity 100Gbps Data Rate Data Centers
Product Description:
The ColorOptic Coherent Optical Module is a digital coherent optical transceiver module designed for 100G Ethernet and OTN OTU4 links reach up to 120km over SMF, with CAUI and OTL4.10 electrical interface and MDIO management interface built in the module.
Features:
- Product Name: Coherent Optical Module
- Modulator: 8/16-QAM; QPSK
- Transmission Distance: 10km
- Operating Temperature: 0℃~+70℃
- Data Rate: 100Gbps
- Special Features: Suitable for data centers, high OSNR, WDM Digital
Technical Parameters:
| Part No. | CO-C11HDCZ | Form Factor | CFP |
| Data Rate | 100G | Distance | 120KM |
| Wavelength | Coherent | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | Tunable Coherent Laser | Receiver Type | PIN |
| TX Power | .-15.0~+2.0dBm | Receiver Sensitivity | < -24.0dBm |
| Protocols | MSA Compliant | Warranty | 3 years |
Applications:
Color Optic CO-OS8H Coherent Optical Module
Color Optic's CO-C11HDCZ Coherent Optical Module is an ideal choice for DWDM pluggable applications. It supports a wide range of WDM digital line modes, including 8/16-QAM and QPSK. This module is designed to provide high speed and low cost for DWDM transmission. It has a wide operating temperature range from 0℃ to +70℃, and optical power ranging from 0 to +5dBm. Our Coherent Optical Module comes with a 3 year warranty.
Packing and Shipping:
Coherent Optical Module is packaged in a standard shipping box. The box is designed to protect the module and prevent any kind of shock or vibration during transport. The box is secured with a tamper-proof seal to ensure that the contents are not tampered with during transit.
The box should also be marked with the appropriate shipping details, such as the name and address of the sender and the recipient, shipping date, and shipping method. This will ensure that the module reaches its destination safely and in a timely manner.
The module should be shipped with a tracking number, which can be used to track the shipment and ensure that it arrives to its destination without any delays or complications.
