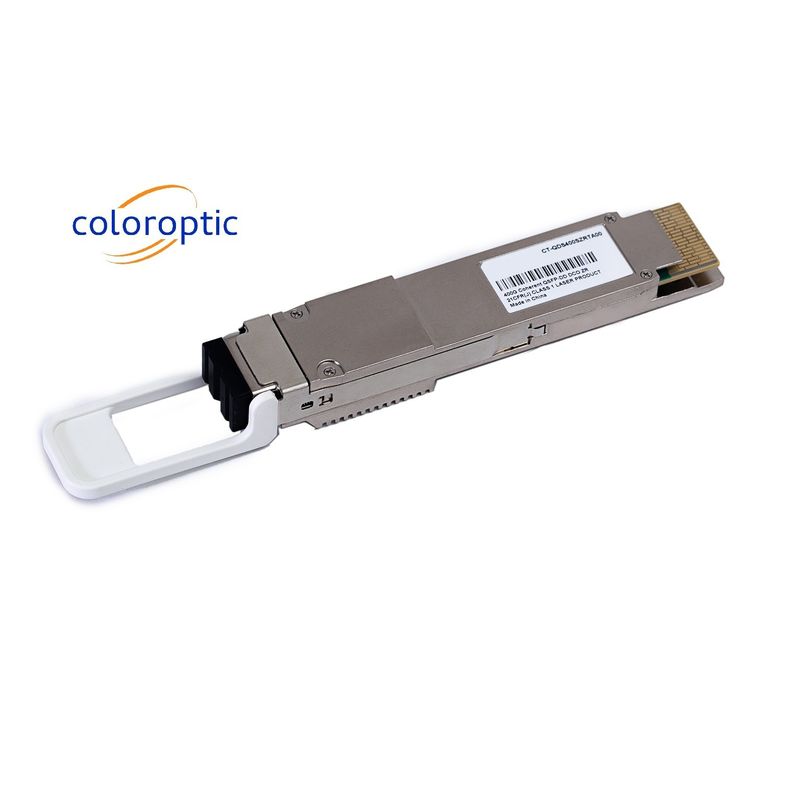

QSFP-DD Coherent Optical Module Dual Fibre DWDM Tunable 50GHz 400GBASE-ZR
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD4HCOZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | Coherent |
|---|---|---|---|
| Distance: | 120 Km | Connector: | Duplex CS |
| Form Factor: | QSFP-DD | Temperature: | 0~75°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | CMIS5.0, OIF Coherent CMIS1.1 | Modulation Format: | DP-16QAM CFEC |
| Highlight: | QSFP-DD Coherent Optical Module,Coherent Optical Module 400GBASE-ZR,Dual Fibre DWDM Tunable |
||
Product Description
QSFP-DD Dual Fibre DWDM Tunable 50GHz / Coherent / 400GBASE-ZR
This is is a high performance QSFP-DD transceiver module for 400 Gigabit Ethernet DP-16QAM modulated data links over two single mode fibres. The maximum reach is up to 120km without inline chromatic dispersion compensation. The narrow linewidth tunable laser is shared between the transmitter and receiver sections (LO). A tapped monitor diode is used to control the optical output power.
The receiver module is performing the coherent intradyne reception and O/E conversion of the incoming optical signal after being mixed with a local optical oscillator. Four pairs of balanced photo detectors perform quadratic detection and produce I and Q components of the two orthogonal polarizations (H and V).
This transceiver module is compliant with the QSFP-DD Multisource Agreement (MSA) and hot pluggable. Always contact Color Optic commercial agents for compatibility with different equipment platforms.
Key Features
- QSFP-DD Multi-Source Agreement compliant
- Hot pluggable QSFP-DD footprint (Type 2A)
- Supports 425Gbps Data Rate
- 8* 26.5625GBd PAM4 Serial Electrical Interface (400GAUI-8, RS(544/514) FEC)

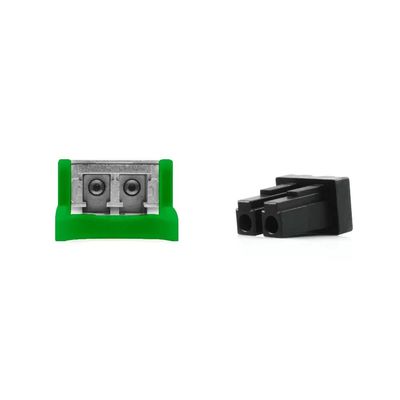

- Dual LC Optical Interface
- Tunable C-band Transmitter
- Coherent Receivers
- C-FEC (15%) with 10.7dB Net Coding Gain
- Up to 120km Point-to-Point Transmission on Single Mode Fibre
- Operating temperature range: -5°C to 80°C
- Power Dissipation < 18.3W
- +3.3V Power Supply
Application
Quality Assurance
Excellent quality is the foundation of Coloroptic' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, ISO 14001, CE, RoHS, FCC, etc.
100% 3rd Party Compatible
Coloroptic Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, we will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
