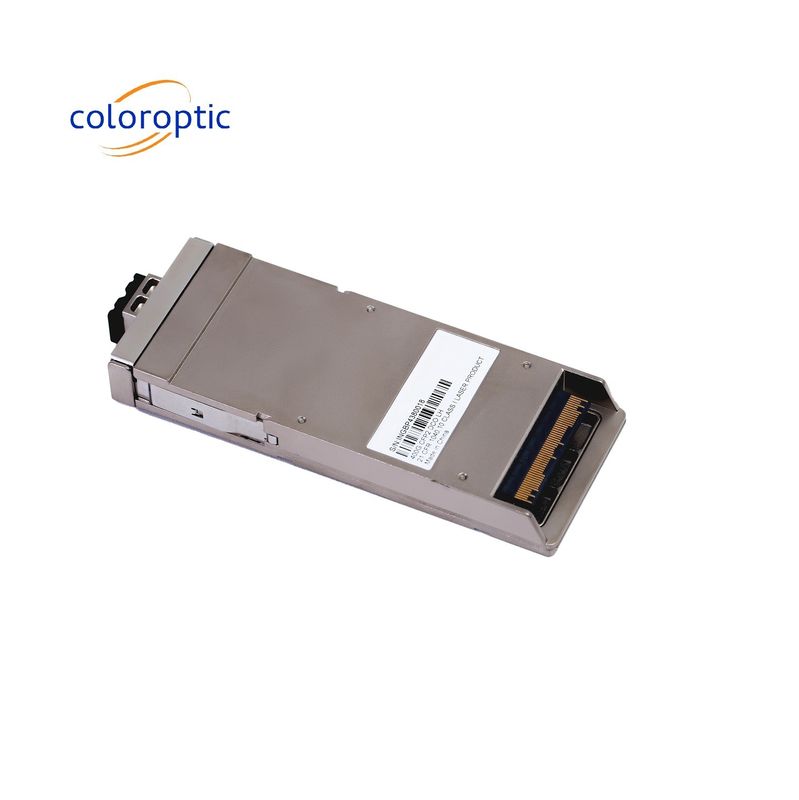

400G Ethernet CFP2 DCO Coherent Optical Transceiver Marvell DSP DWDM Wavelengths
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-C24HCOMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | Coherent |
|---|---|---|---|

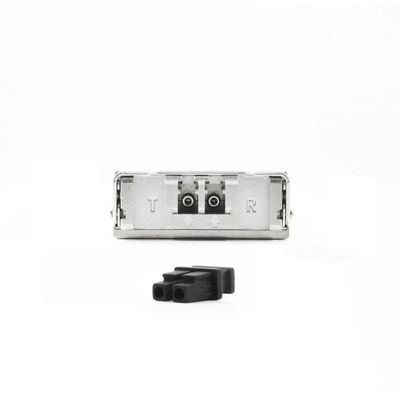

| Distance: | 80~1200 Km | Connector: | Duplex LC |
| Form Factor: | CFP2 | Temperature: | 0~70°C |
| DDM: | Yes | Voltage: | 3.3V |
| Protocals: | MSA | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | MSA |
| Highlight: | CFP2 Coherent Optical Transceiver,DCO Coherent Optical Transceiver |
||
Product Description
400G Ethernet CFP2 DCO With TOF Transceiver Marvell DSP DWDM Wavelengths
This is is a portfolio of digital coherent optical transceiver (or transponder) modules designed for 400G Ethernet and OTN links reach up to 600km over single mode fiber, operating at full C-band DWDM wavelengths with 75GHz channel spacing (up to 64 channels). These 400G coherent optical modules are the ideal solution for long-haul metro DCI and 5G backhaul applications.
Key Features
Application
Product Details
| 400G CFP2 DCO | |||||||
| Features: |
|
||||||
| 7nm Marvell DSP | |||||||
| C band:191.3 ~ 196.1THz, Flex Grid | |||||||
| Support Line side: | |||||||
|
400G PS-16QAM SDFEC |
|||||||
| Support Flexible client-side: | |||||||
| 4*OTU4/1*400GE/4*100GE for 400G 2*OTU4/2*100GE for 200G |
|||||||
| l CFP MSA IEEE802.3 Clause 45 compliant MDIO | Applications: | ||||||
| l Compliant to OIF-CFP2-DCO-01.0 | •OTN | ||||||
| l 104pin CFP2 MSA connector | •Metro | ||||||
| l 0~70℃ case temperature | |||||||
| l Hot Swappable | |||||||
| Main Parameters: | |||||||
| Parameter | Symbol | Min | Typical | Max | Units | Note | |
| Operating Case Temperature | TOP | 0 | 70 | degC | |||
| Operating Input Optical Power of Signal | Psig | -12 | 0 | dBm | |||
| Transmitter output power range | Pout | -8 | 0 | 5 | dBm | ||
| Transmitter OSNR (Out-of-band) | OSNR(OOB) | 40 | dB/0.1nm | ||||
| Frequency Range | f | 191.3 | 196.1 | THz | |||
| Receiver Sensitivity | SEN | -20 | dBm | ||||
| OSNR sensitivity | OSNR | 21 | dB/0.1nm | ||||
| Power Consumption | 25 | W | |||||
Quality Assurance
Excellent quality is the foundation of Coloroptic' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, ISO 14001, CE, RoHS, FCC, etc.
100% 3rd Party Compatible
Coloroptic Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, we will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
