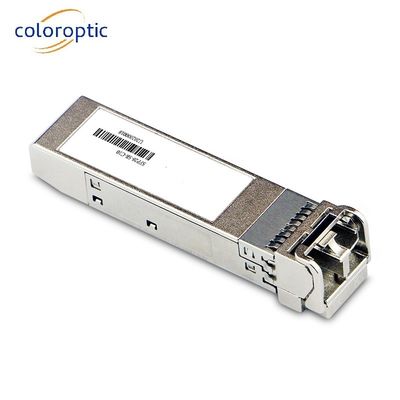

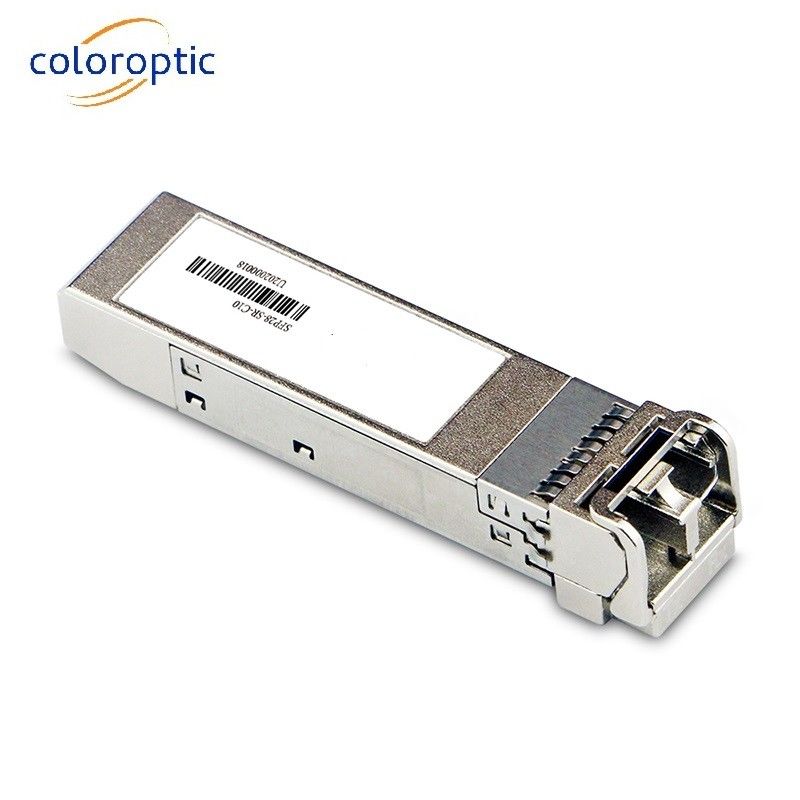

25G Ethernet SFP Optical Module DDM With 1310nm DFB Transmitter
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-S82585SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 25G | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 300m On OM3 MMF | Connector: | MPO |
| Form Factor: | SFP28 | Temperature: | -40 To 85°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | SFP8472 | Application: | Wireless Base Station System |
| Highlight: | 25G SFP Optical Module,Ethernet SFP Optical Module,Ethernet SFP DDM |
||
Product Description
25G Ethernet SFP Optical Module with 1310nm DFB Transmitter, -40~85°C
This 25G SR optical transceivers are based on 25G Ethernet IEEE 802.3 standard. They are compliant with FC-PI-6,SFF-8402,SFF-8419,SFF-8432 and SFF-8472, providing a fast and reliable interface for 25G Ethernet applications. The product implements the digital diagnostics required by the SFF-8472 via a 2-wire serial bus.
Key Features
- Supports CPRI and Ethernet application
- 1310nm DFB transmitter
- PIN photo-detector
- 2-wire interface for management specifications compliant with SFF-8472 digital diagnostic monitoring interface for optical transceivers
- Operating case temperature:-40 to 85°C
- All-metal housing for superior EMI performance
- 25G electrical interface (OIFCEI-28G-VSR)
- Maximum power consumption 1.2W
- Advanced firmware allow customer system encryption information to be stored intransceiver
- RoHS compliant
Application
- ·High-speed storage area networks
- Computer cluster cross-connect
- Custom high-speeddata pipes
- Wireless base station system
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | -40 | 85 | degC | ||
| Link Distance with OM3 | D | 0.002 | 300 | m | ||
| Power Consumption | 1.2 | W | ||||
| Center Wavelength | λC | 1260 | 1310 | 1360 | nm | |
| Average Optical Power | PAVG | -4.5 | 2 | dBm | ||
| Receive Power(OMA) | 2.2 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | -8.5 | dBm |
