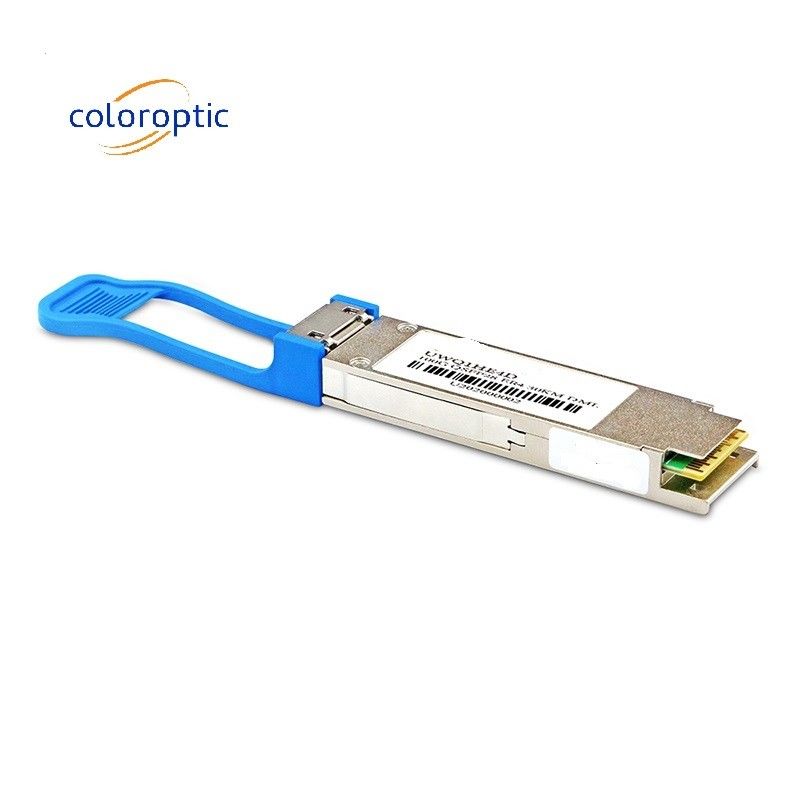

100G QSFP28 ER4 Lite SFP Optical Transceiver 40km Reach Hot Pluggable
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13EL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | 4LWDM |
|---|---|---|---|
| Distance: | 40 Km With FEC | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | To IEEE 802.3ba 100GBASE-ER4 LITE | Application: | 100GBASE-ER4 Ethernet Links |
| Highlight: | 100G SFP Optical Transceiver,QSFP28 SFP Optical Transceiver,QSFP28 SFP Hot Pluggable |
||
Product Description
100G QSFP28 ER4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- EML with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single–mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a SOA+PIN and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba
Key Features
- Hot pluggable QSFP28 MSA form factor
- Compliant to 100G 4WDM-40 MSA
- Supports 103.1Gb/s aggregate bit rate
- Up to 30km reach for G.652 SMF without FEC
- Up to 40km reach for G.652 SMF with FEC
- Single +3.3V power supply
- Operating case temperature: 0~70℃
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58,
1309.14nm) - Receiver: 4x25Gb/s APD ROSA
- 4x25G electrical interface (OIF CEI-28G-VSR)
- Maximum power consumption 5W

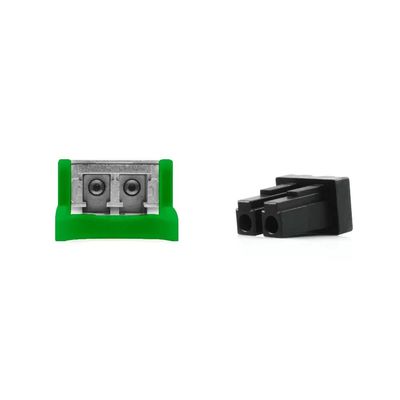

- Duplex LC receptacle
Application
· Infiniband QDR and DDR interconnects
· Client-side 100G Telecom
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with G.652(with FEC) | D | 40 | km | |||
| Power Consumption | 5 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -2.5 | 6.5 | dBm | ||
| OMA, each Lane | POMA | 0.5 | 6.5 | dBm | ||
| Average Receive Power,each Lane | -20.5 | -3.5 | dBm | for 40km Link Distance |
||
| Receive Power(OMA),each Lane | -3.5 | |||||
| Receiver Sensitivity(OMA),each Lane | SEN | -18.5 | dBm | for BER = 5x10-5 |
Outline Dimensions:
