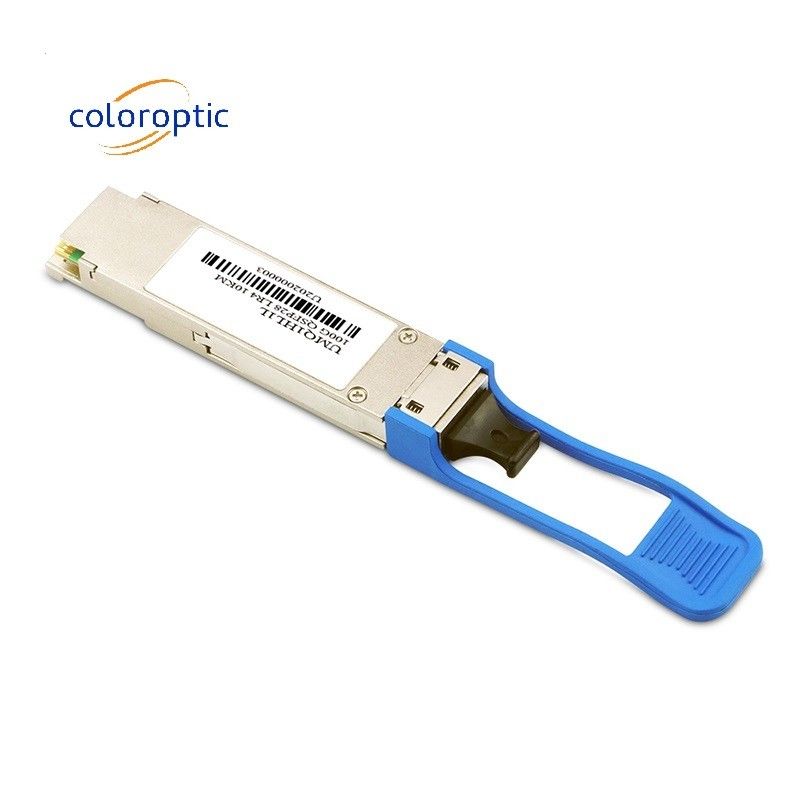

QSFP28 LR4 Optical SFP Module For 100GBASE-LR4 Ethernet Links Infiniband
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | 4LWDM |
|---|---|---|---|
| Distance: | 10 Km | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | To IEEE 802.3ba 100GBASE-LR4 | Application: | 100G Ethernet |
| Highlight: | QSFP28 Optical SFP Module,LR4 Optical SFP Module |
||
Product Description
QSFP28 LR4 Optical Module for 100GBASE-LR4 Ethernet Links, Infiniband & Data Center
100G QSFP28 LR4 optical Transceiver integrates receiver and transmitter path on one module. The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically demultiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba.
Key Features
- Hot pluggable QSFP28 MSA form factor
- Compliant to IEEE 802.3ba 100GBASE-LR4
- Supports 103.1Gb/s aggregate bit rate
- Up to 10km reach for G.652 SMF
- Single +3.3V power supply
- Operating case temperature: 0~70℃
- Transmitter: cooled 4x25Gb/s LAN WDM DFB
- TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s PIN ROSA
- 4x25G electrical interface (OIF CEI-28G-VSR)
- Maximum power consumption 4.0W

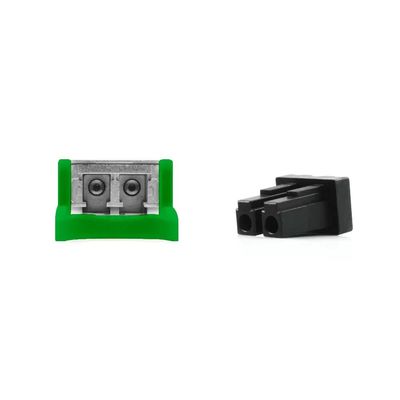

- Duplex LC receptacle
- RoHS-6 compliant
Application
· Infiniband QDR and DDR interconnects
· Datacenter and Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 10 | km | ||
| Power Consumption | 4 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -4.3 | 4.5 | dBm | ||
| OMA, each Lane | POMA | -1.3 | 4.5 | dBm | ||
| Average Receive Power,each Lane | -10.6 | 4.5 | dBm | |||
| Receive Power(OMA),each Lane | 4.5 | |||||
| Receiver Sensitivity(OMA) | SEN | -8.6 | dBm |
Outline Dimensions:
