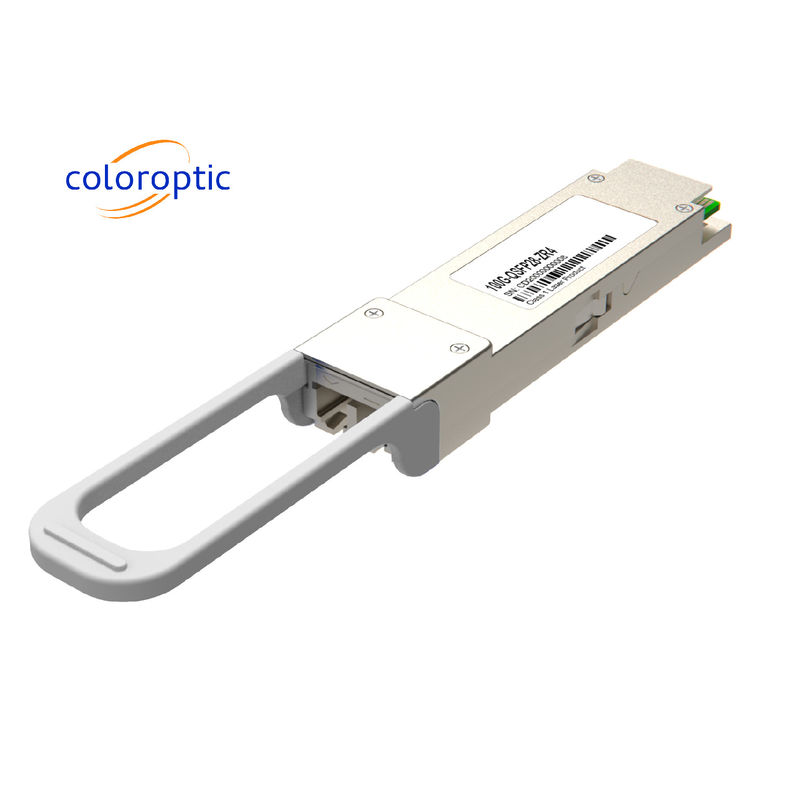

100G ZR4 QSFP28 Optical Transceiver Support Multi Pin Function Hot Pluggable
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13ZL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | 4LWDM |
|---|---|---|---|
| Distance: | 80 Km | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | To IEEE 802.3ba 100GBASE-ZR4 LITE | Application: | 100GBASE-ER4 Ethernet Links |
| Highlight: | ZR4 QSFP28 Optical Transceiver,100G QSFP28 Optical Transceiver,Hot Pluggable 100G Optical Transceiver |
||
Product Description
100G QSFP28 ZR4 Optical Transceiver, Support Multi-Pin Function, Hot Pluggable, 0-70°C
100G QSFP28 ZR4 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- EML with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single–mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a SOA+PIN and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba
Key Features
- Hot pluggable QSFP28 MSA form factor
- Supports 100GBASE 100GE;
- Lane bit rate 25.78 Gb/s 100GE
- Up to 100km transmission on SMF;
- LAN WDM laser and PIN receiver with SOA;
- Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;
- High speed I/O electrical interface (CAUI-4);
- I2C interface with integrated Digital Diagnostic monitoring;
- QSFP28 MSA package with duplex LC connector;
- Single +3.3V power supply;
- Typical power consumption 6.5 W;
- Operating case temperature: 0 to +70 °C;
- Compliant to IEEE 802.3bm and ITU-T G.959;
- Compliant to SFF-8636 and SFF-8679;
- Complies with EU Directive 2015/863/EU;
Application
· Infiniband QDR and DDR interconnects
· Client-side 100G Telecom
Product Details
Outline Dimensions:
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures. Laser Safety: Taclink transceiver uses a semiconductor laser system and is a laser class1 product acc. FDA, complies with 21CFR1040.10 and 1040.11.Also this product is a laser class1 product acc.IEC 60825-1
