400G QSFP DD Module SR8 70m OM3 With FEC 400G Ethernet Enterprise Networking
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD4H13SC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | 850nm |
|---|---|---|---|
| Distance: | 70m | Connector: | MPO-16 |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | MSA |
| Application: | Enterprise Networking | Power Consumption: | 10.5W |
| Highlight: | Networking QSFP DD Module,QSFP DD Module OM3,400G QSFP DD SR8 |
||
Product Description

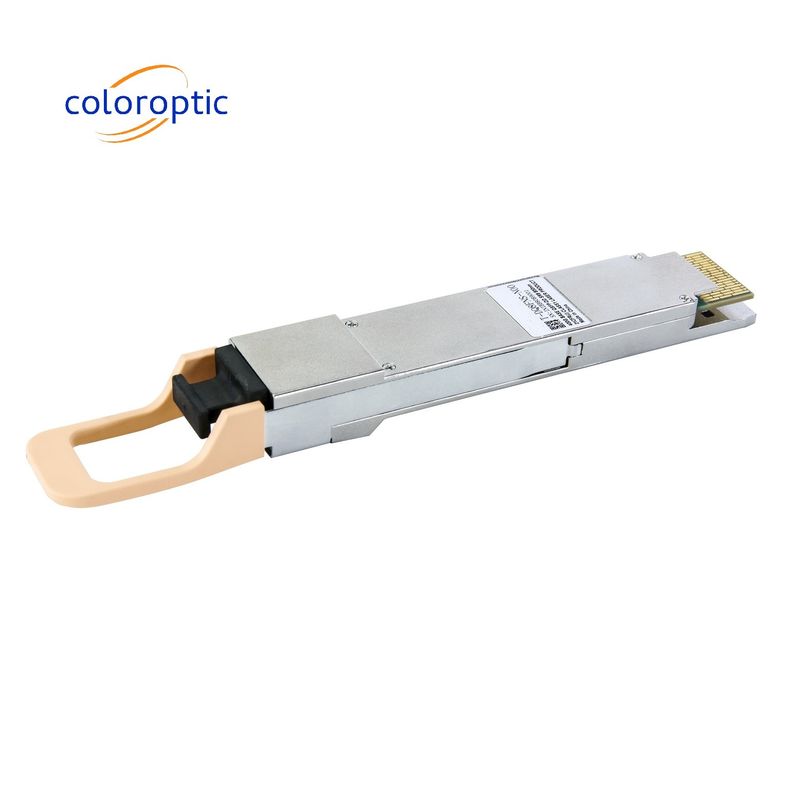

400G QSFP-DD SR8 70m OM3 With FEC, 400G Ethernet Enterprise Networking

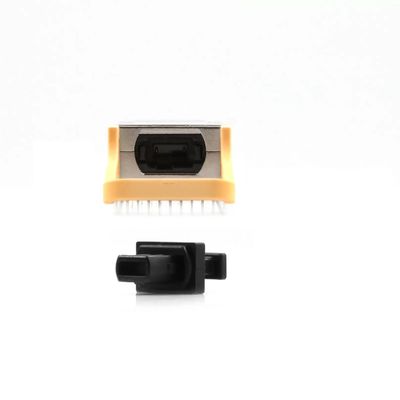

This product is a parallel 400Gb/s QSFP-DD optical module. It provides increased port density and total system cost savings. The QSFP-DD full[1]duplex optical module offers 8 independent transmit and receive channels, each capable of 53.125Gb/s operation for an aggregate data rate of 400Gb/s on 70 meters of OM3 multi-mode fiber. An optical fiber cable with an MTP/MPO-16 connector can be plugged into the QSFP-DD SR8 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP-DD MSA-compliant edge type connector
Key Features
- QSFP-DD MSA compliant
- 8 parallel lanes on 850nm center wavelength
- Compliant to IEEE 802.3bs Specification
- Up to 100m transmission on multi-mode fiber(MMF) OM3 with FEC
- Operating case temperature: 0 to 70℃
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 53.125Gbps (PAM4) per channel.
- Maximum power consumption 10.5W
- MPO-16 connector
- RoHS compliant
Application
- Data Center Interconnect
- 400G Ethernet
- Infiniband interconnects
- Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.5 | 100 | m | ||
| Power Consumption | 10.5 | W | ||||
| Center Wavelength | λC | 840 | 850 | 860 | nm | |
| Average Launch Power, each Lane |
PAVG | -6.5 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter), each Lane |
POMA | -4.5 | 3 | dBm | ||
| Average Receive Power, each Lane |
-8.4 | 4 | dBm | |||
| Receiver Sensitivity (OMAouter), each Lane |
SEN | RS = max(−6.5, SECQ − 7.9) dBm | dBm |
