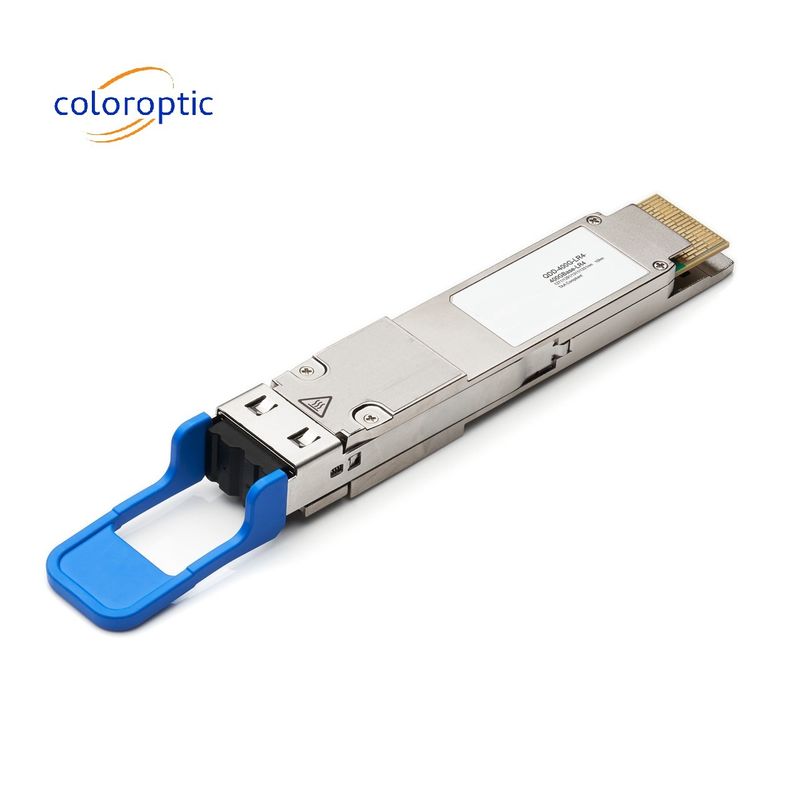

Arista QDD-400G-LR4 QSFP56 DD 10km DOM Duplex LC SMF Optical Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD4H13CC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Type Of Media: | SMF | Data Rate: | 400G |
|---|---|---|---|
| Form Factor: | QSFP-DD | Label: | Can Be Customized |
| Distance: | 10km | Temperature Range: | 0°C To 70°C |
| Warranty: | 3 Years | Protocols:: | QSFP-DD MSA, IEEE 802.3bs 400GBASE-DR4 |
| Highlight: | Arista QDD-400G-LR4,QSFP56 DD 400G |
||
Product Description
Arista QDD-400G-LR4 Compatible 400GBase-LR4 QSFP56-DD 10km DOM Duplex LC SMF Optical Transceiver M
Product Description:
QSFP DD Module CO-QD4H13CC is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP56-DD) optical module designed for 10km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.

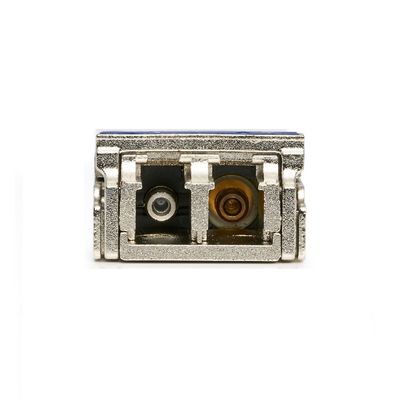

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. The CO-QD4H13CC contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 10km fiber transmission
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Coloroptic's CO-QD4H13CC is a Arista® compatible 400GBase QSFP56-DD Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to QSFP56-DD Arista® original transceivers and are 100% compatible with other OEM and third party transceivers. All of FluxLight's QSFP56-DD Arista compatible transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.
Coloroptic offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity.
Features:
- QSFP56-DD MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- 100G Lambda MSA 100G-LR Specification compliant
- Up to 10km transmission on single mode fiber (SMF) with FEC
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 12W
- Duplex LC connector
- RoHS compliant
- Operating Case Temperature:
- Standard: 0°C to +70 °C o
- Extended -5°C to +85 °C
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.02 | 10 | km | ||
| Power Consumption | 12 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.7 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -3.4 | 5.3 | dBm | ||
| OMA, each Lane | POMA | -0.4 | 5.1 | dBm | ||
| Damage Receiver power | 5.5 | dBm | ||||
| Receiver Saturation | OVERLOAD | 4.5 | ||||
| Receiver Sensitivity(OMA) | SEN | -6.1 | dBm | BER=2E-4, 26.5625Gbps, PRBS31,max (-6.1 ,SECQ -7.5) |
Applications:
- Data Center Interconnect
- 400G Ethernet
- Infiniband interconnects
- Enterprise networking
