LR4 MSA QSFP DD Module Compliant 400G Ethernet Transceiver With 10km Reach
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD4H13LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | 1310 |
|---|---|---|---|
| Distance: | 10 Km | Connector: | Duplex LC |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | MSA |
| Modulation Format: | PAM4 | Application: | Data Center Interconnect |
| Highlight: | QSFP DD Module 10km Reach,MSA QSFP DD Module,400G Ethernet Transceiver |
||
Product Description

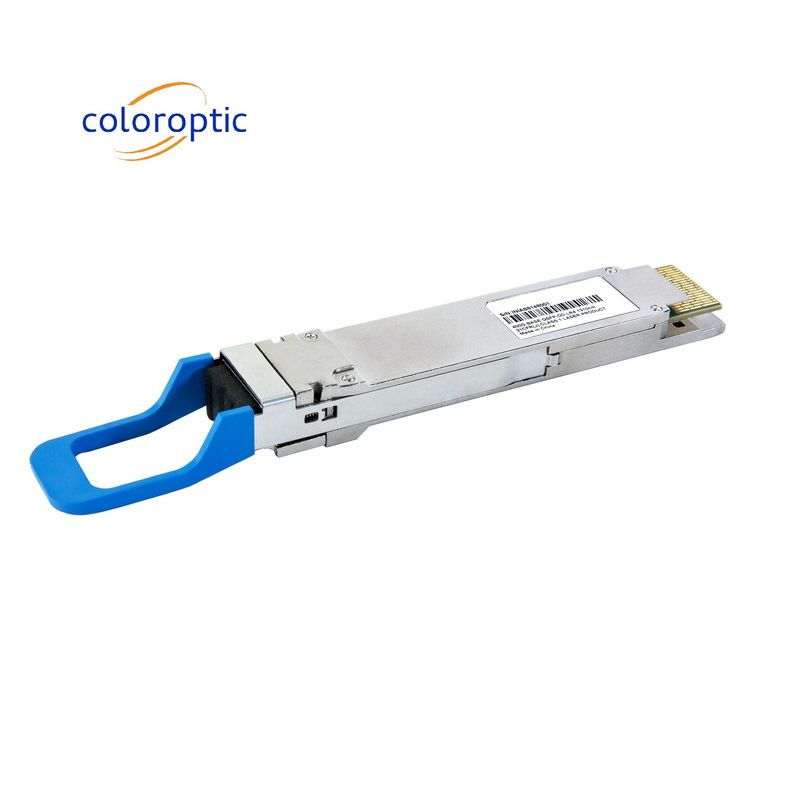

QSFP-DD LR4 MSA Compliant 400G Ethernet Transceiver With 10km Reach
This is is a high performance QSFP-DD transceiver module for 400 Gigabit Ethernet data links over a single mode fibre pair. The maximum reach is 10km. An internal gearbox converts the 8 electrical input channels (each 25GBd PAM4) into four 50GBd PAM4 signals. The four transmitters are CWDM lasers generating four optical 50GBd output signals, which are multiplexed together at the optical output port.
Key Features
- QSFP-DD MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- Up to 10km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 12W

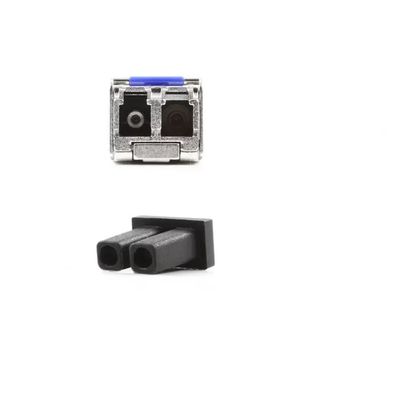

- Duplex LC connector
- RoHS compliant
Application
- Data Center Interconnect
- 400G Ethernet
- Infiniband interconnects
- Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.002 | 10 | km | ||
| Power Consumption | 12 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.7 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -2.8 | 4 | dBm | ||
| OMA, each Lane | POMA | 0.2 | 4.2 | dBm | ||
| Damage Receiver power | 5 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN |
