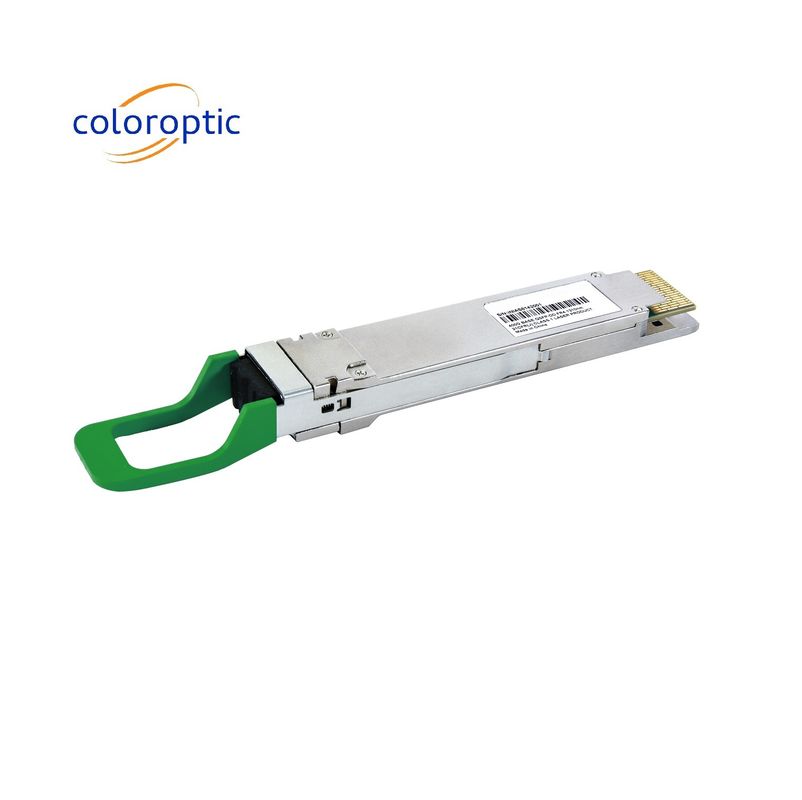

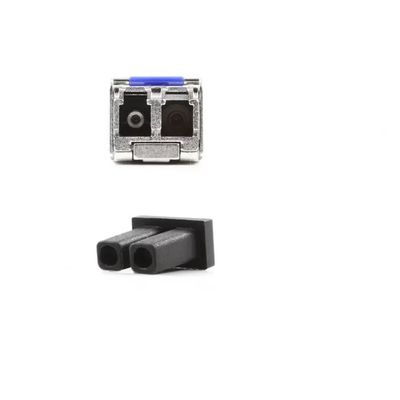

400G QSFP DD Module MSA Duplex LC For FR4 2km SMF 400G Ethernet Transmission
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD4H13FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | 4 CWDM Lanes MUX/DEMUX |
|---|---|---|---|
| Distance: | 2km | Connector: | Duplex LC |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | 100G Lambda MSA 400G-FR4 |
| Application: | Data Center Interconnect | Type Of Media: | Single Mode |
| Highlight: | QSFP DD Module MSA,QSFP DD Module Duplex LC,400G QSFP DD |
||
Product Description
400G QSFP-DD MSA Module for FR4 2km SMF 400G Ethernet Transmission
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP-DD) optical module designed for 2km optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals, and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 8 channels of 50Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference
Key Features
- QSFP-DD MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- 100G Lambda MSA 400G-FR4 Specification compliant
- Up to 2km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 8x53.125Gb/s electrical interface(400GAUI-8)
- Data Rate 106.25Gbps (PAM4) perchannel.
- Maximum power consumption 12W
- Duplex LC connector
Application
- Data Center Interconnect
- 400G Ethernet
- Infiniband interconnects
- Enterprise networkin
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.002 | 2 | km | ||
| Power Consumption | 12 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.7 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -3.3 | 3.5 | dBm | ||
| OMA, each Lane | POMA | -0.3 | 3.7 | dBm | ||
| Average Receive Power,each Lane | -7.3 | 3.5 | dBm | |||
| Receive Power(OMA),each Lane | 3.7 | |||||
| Receiver Sensitivity(OMA) | SEN | max(-4.6,SECQ-6.0) | dBm |
