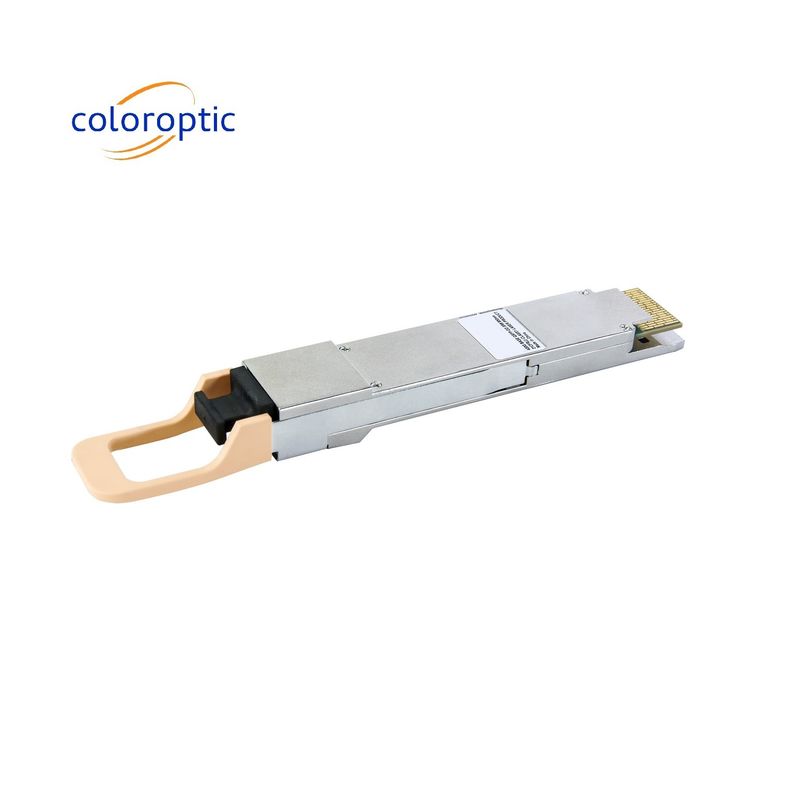

Arista QDD-400G-LR8 QSFP56-DD 1310nm DOM SMF Optical Transceiver Module 10km
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD4HCL8C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pieces/month |
|
Detail Information |
|||
| Type Of Media: | SMF | Distance: | 10km |
|---|---|---|---|
| Fiber Connector: | Dual LC | Form Factor: | QSFP-DD |
| Data Rate: | 400G | DDM/DOM Support: | Yes |
| Warranty: | 3 Years | Protocols:: | QSFP-DD MSA |
| Highlight: | QDD-400G-LR8,QSFP56-DD DOM Transceiver,DOM Transceiver 10km |
||
Product Description
Arista QDD-400G-LR8 Compatible 400GBase-LR8 QSFP56-DD 1310nm 10km DOM Duplex LC SMF Optical Transceiver Module
Product Description:
The ColorOptic's CO-QD4HCL8C is an Eight-Channel, Pluggable, Parallel, Fiber-Optic QSFP Double Density for 400 Gigabit Ethernet Applications. This transceiver is a high-performance module for 10km multi-lane data communication and interconnection applications. It integrates eight data lanes in each direction with 8x26.5625GBd. Each lane can operate at 53.125Gbps up to 10km using G.652 SMF with KP-FEC. These modules are designed to operate over single mode fiber systems using LAN-WDM 8 wavelengths. The electrical interface uses a 76 contact edge type connector. The optical interface uses duplex LC connector. The Common Management Interface Specification (CMIS) for QSFP DD modules, this module incorporates ColorOptic proven circuit and EML technology to provide reliable long life, high performance, and consistent service..
Features:
- 8 channels full-duplex transceiver modules
- Transmission data rate up to 53Gbps per channel
- 8x53Gbps PAM4 transmitter and PAM4 receiver
- 8 channels LAN-WDM
- 8 wavelengths EML
- 8 channels PIN photo detector
- Internal CDR circuits on both receiver and transmitter channels
- Power consumption <12.5W
- Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0
- Maximum link length of 10km G.652 SMF with KP-FEC

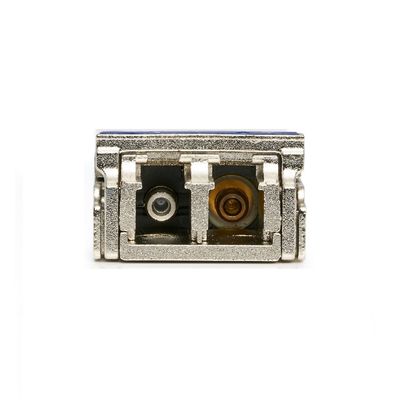

- Duplex LC receptacles
- Built-in digital diagnostic functions
- 3.3V power supply voltage
- RoHS compliant (lead free)
- Operating Case Temperature
- Standard: 0°C to +70 °C E
- xtended -5°C to +85 °C
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.002 | 2 | km | ||
| Power Consumption | 10 | W | ||||
| Center Wavelength | L0 | 1272.55 | 1273.54 | 1274.54 | nm | |
| L1 | 1276.89 | 1277.89 | 1278.89 | nm | ||
| L2 | 1281.25 | 1282.26 | 1283.27 | nm | ||
| L3 | 1285.65 | 1286.66 | 1288.68 | nm | ||
| L4 | 1294.53 | 1295.56 | 1296.59 | nm | ||
| L5 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L6 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L7 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -2.8 | 5.3 | dBm | ||
| OMA, each Lane | POMA | -0.2 | 5.7 | dBm | ||
| Average Receive Power,each Lane | -9.1 | 5.3 | dBm | |||
| Receive Power(OMA),each Lane | 3.7 | |||||
| Receiver Sensitivity(OMA) | SEN | -7.1 | dBm | BER = 2.4E-4 Pre-FEC |
Applications:
IEEE 802.3bs 400GBASE-LR8.
