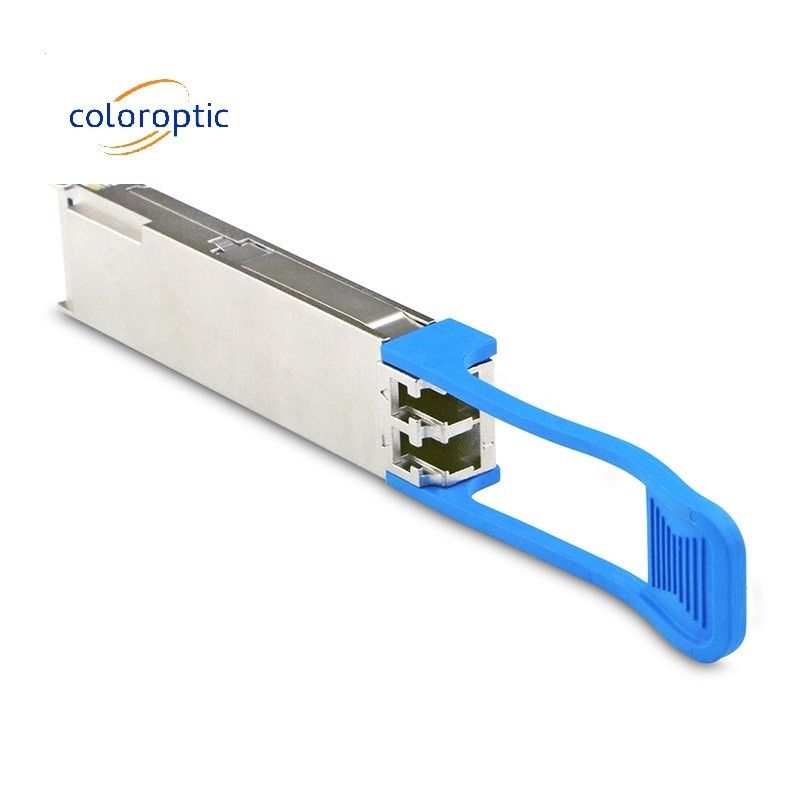

QSFP28 ER1 40KM 100Gb/S QSFP28 Optical Transceiver Single Lambda 100G Ethernet
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13FC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 40km | Connector: | Duplex LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Technology: | Single Lambda | Application: | 100GBASE Ethernet Links |
| Highlight: | 40KM QSFP28 Optical Transceiver,QSFP28 Optical Transceiver Single Lambda |
||
Product Description
100Gb/S QSFP28 ER1 40KM Single Lambda Optical Transceiver 100G Ethernet
This is a high performance QSFP28 transceiver module for 100 Gigabit Ethernet data links over a single mode fibre pair. The maximum reach is 40km. An internal DSP-based gearbox converts the 4 electrical input channels (each 25Gbbps NRZ) into one 50GBd PAM4 signal. The transmitter is a CWDM laser generating the optical 50GBd output signal.
The receiver is a PIN photodiode which detect the 50GBd PAM4 optical input signal. This 50GBd data stream is converted into four 25Gbps electrical output signals by the DSP.
This transceiver module is compliant with the QSFP28 Multisource Agreement (MSA) and hot pluggable.
Key Features
- QSFP28 MSA compliant
- Supports 100GBASE-ER1;
- Lane bit rate 106.25 Gb/s with PAM4;
- Up to 40km transmission on SMF;
- 1310nm laser and APD receiver;
- 4x25.78Gb/s with NRZ electrical interface (CAUI-4);
- I2C interface with integrated Digital Diagnostic monitoring;

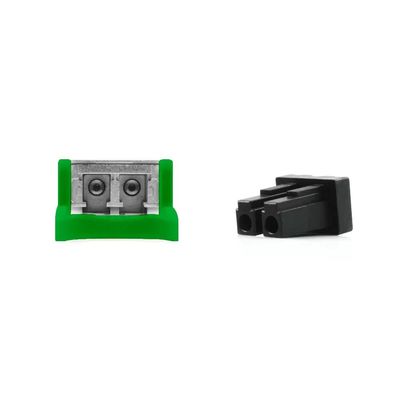

- QSFP28 MSA package with LC duplex connector;
- Single +3.3V power supply;
- Maximum power consumption 4.5 W;
- Operating case temperature: 0 to +70 °C;
- Compliant to 802.3cd, SFF-8636&SFF-8679 standard;
- Complies with EU Directive 2015/863/EU
Application
- Data Center Interconnect
- 100G Ethernet
- Enterprise networking
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 2 | km | ||
| Power Consumption | 4.5 | W | ||||
| Center Wavelength | λC | 1304.5 | 1317.5 | nm | ||
| Average Launch Power | PAVG | -0 | 5.6 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter) |
POMA | 3 | 6.4 | dBm | ||
| Average Receive Power | -14.7 | -3.5 | dBm | |||
| Receive Power(OMA) | -2.6 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | -13.9+TECQ | dBm | 1.4 < TECQ < 3.9 dB |
Outline Dimensions:
