Layer 3 24 Port Gigabit Core Network Switch With 24*10GE 2*100GE Ports
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-24X2C-L3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Redundancy: | Yes | QoS: | Yes |
|---|---|---|---|
| Routing Protocols: | OSPF, BGP, RIP, EIGRP | Port Number: | 24 |
| Warranty: | 3 Years | Power Supply: | AC/DC |
| Operating Temperature: | -40 To 70°C | Management: | Web-based GUI |
| Highlight: | Gigabit Core Network Switch,ROHS Core Network Switch,Layer 3 24 Port Gigabit Switch |
||
Product Description

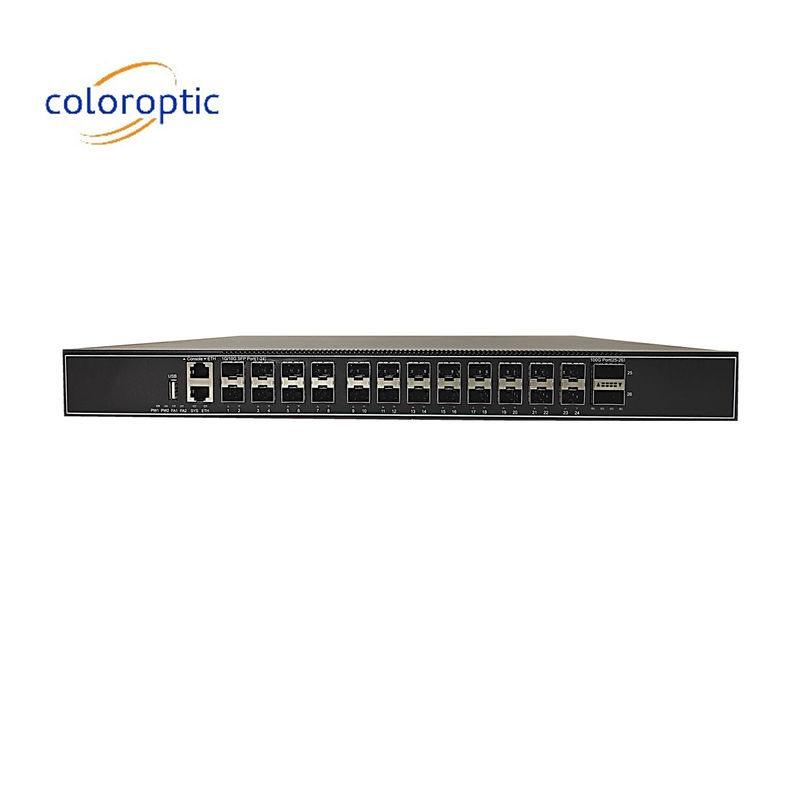

24-Port Gigabit Layer 3 Core Network Switch With 24*10GE,2*100GE Ports
Product Description:
CO-24X2C-L3 including 24*10GE,2*100GE ports and 1 console port Layer 3 managed Ethernet switch. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection; The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. Advanced security functions and advanced quality of service (QoS), can be used as core layer, distribution layer or access layer switch with high density port, switch stacking and easy management, are ideal for various commercial network applications.
Features:
-
Items CO-24X2C-L3 Connector Type 24*10GE+ 2*100GE Ports,1*console Network Protocols IEEE802.3;IEEE802.3u;IEEE802.3z;IEEE802.3ab; IEEE802.3ae; IEEE802.3x Network Media 10BASE-T: Cat 3,4,5 UTP(≤100 meter)
100BASE-T: Cat 5 UTP(≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
Performance Specification Bandwidth:880Gbps Forwarding Capacity:540Mpps MAC Address:32K Nor Flash:4MB,EMMC:8GB DRAM:1GB Power Supply Power input: AC100-240V 50/60Hz Working Environment Operating Temperature: 0℃ ~ 45℃;
Storage Temperature: -25℃ ~ 70℃;
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 90%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
MTBF 100,000 hours Outline dimensions 440mm*390mm*44mm (W*D*H)
Technical Parameters:
|
|
|
|
| L2 features | MAC |
MAC Black Hole Port MAC Limit |
| VLAN |
4K VLAN entries Port-based/MAC-based/IP subnet-based VLAN |
|
| Spanning tree protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) |
|
| Port |
Bi-directional bandwidth control Static link aggregation and LACP(Link Aggregation Control Protocol) Port mirroring and traffic mirroring support |
|
| Security features | User’s security |
Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard create IP+VLAN+MAC+Port binding Port Isolation MAC address binds to port and port MAC address filtration IEEE 802.1x and AAA/Radius authentication |
| Device security |
Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack) SSHv2 Secure Shell SNMP v3 encrypted management Security IP login through Telnet Hierarchical management and password protection of users |
|
| Network security |
User-based MAC and ARP traffic examination Dynamic ARP table-based binding IP+VLAN+MAC+Port binding Port-based broadcast/multicast suppression and auto-shutdown risk port DHCP Option82 and PPPoE+ upload user’s physical location DHCP snooping / IP source Guard / 802.1X / rich security features Plaintext authentication of OSPF,RIPv2 and BGPv4 packets and MD5 cryptograph authentication |
|
| IP routing | IPv4 |
ARP Proxy DHCP Relay DHCP Server Static route RIPv1/v2 OSPFv2 BGPv4 ECMP |
| IPv6 |
ICMPv6 ACLv6 OSPFv3 BGP RIPng IPv6 and IPv4 dual stack |
|
| Service features | ACL |
Standard and extended ACL Time Range ACL Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic |
| QoS |
Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark transmission of high-priority packets with various traffic classification and QoS flow control functions Packet mirror and redirection of interface and self-defined flow Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP |
|
| Multicast |
IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP Filter IGMP Fast leave IGMP Proxy PIM-SM/PIM-DM/PIM-SSM MLDv2/MLDv2 Snooping |
|
| Route | VRRP | Support VRRP route backup |
| Functions | Static route | |
| RIP(V1/V2)/OSPF(V2) / BGP | ||
| Reliability | Loop protection | Loopback-detection |
| Link protection |
RSTP/MSTP LACP |
|
| Device protection |
VRRP host backup Strictly follow the relevant standards, and other mainstream manufacturers fully interoperability |
|
| Maintenance | Network maintenance |
Telnet-based statistics LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog Protocol Ping and Traceroute |
| Device management |
Command-line interface(CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring)1/2/3/9 groups of MIB WEB-based network management Ping and Traceroute |
|
Applications:
The Color Optic CO-24X2C-L3 Core Network Switch is an ideal choice for organizations looking for a secure and reliable switching solution. Its 48 ports can support up to 1Gbps of bandwidth, allowing for high-speed network media and L2 features such as 802.1x, SSH, SSL, QoS, and VLAN support. The switch also supports multiple network protocols, including OSPF, BGP, RIP, and EIGRP. This switch offers a fast, secure and robust network solution for enterprises of any size.
Packing and Shipping:
Core Network Switch Packaging and Shipping
- All switches should be individually boxed
- The box should include a foam insert to protect the switch
- The box and foam insert should be labeled with the switch model number
- Secure the box closed with tape
- Pack the boxes in a larger cardboard box, either with additional foam for protection, or with packing peanuts
- Close the larger box, and label it with the contents, the sender's address, and the recipient's address
- Ship the box via a reliable shipping service
