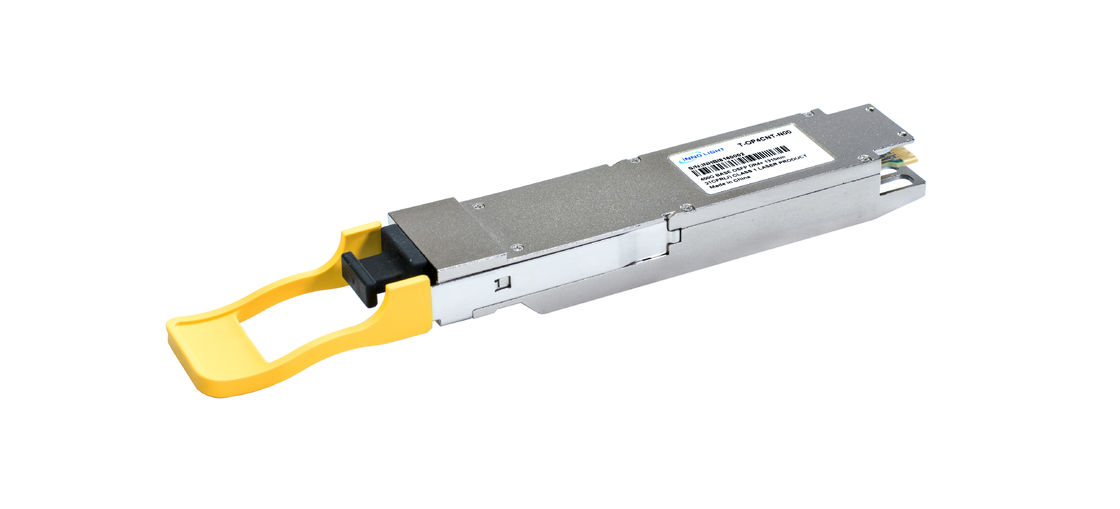

400G OSFP ZR Coherent Optical Module DCO For Optical Transport Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-OS4HDCZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Form Factor: | OSFP | Storage Temperature: | -40℃~+85℃ |
|---|---|---|---|
| Modulator: | 8/16-QAM; QPSK | Product Name: | Coherent Optical Module |
| Connector Type: | LC | Operating Temperature: | 0℃~+70℃ |
| Optical Power: | 0~+5dBm | Data Rate: | 400Gbps |
| Highlight: | OSFP Coherent Optical Module,Coherent Optical Module DCO |
||
Product Description
400G OSFP ZR Coherent DCO Transceivers For Long-Distance Optical Transport Applications
Product Description:
Coloroptic coherent OSFP products are based on different modulation techniques that use two polarizations of light to encode data. They can work with a wide range of wavelengths in the C-band and have advanced features for detecting and correcting signal distortions. They come in a standard OSFP shape that can plug into different devices and use a 7nm DSP chip. They can support data rates of 100 or 400 Gbps and are suitable for various network applications, such as metro, access and Cloud/DCI.
Features:
- Product Name: Coherent Optical Module
- Modulator: 8/16-QAM; QPSK
- Storage Temperature: -40℃~+85℃
- Operating Temperature: 0℃~+70℃
- Connector Type: LC
- Transmission Distance: 80km
- OSNR: High
- WDM Digital: Support
Technical Parameters:
| Part No. | CO-OS4HDCZ | Form Factor | OSFP |
| Data Rate | 400G | Distance | 80-120KM |
| Wavelength | Coherent | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | Tunable Coherent Laser | Receiver Type | PIN |
| TX Power | .-10~-6.0dBm | Receiver Sensitivity | < -20dBm |
| Protocols | OSFP MSA | Warranty | 3 years |
Applications:
The Color Optic Coherent Optical Module (CO-OS4HDCZ) is the perfect solution for high-speed digital coherent DWDM transmission. It provides a maximum data rate of 100Gbps and a storage temperature range of -40℃~+85℃, suitable for all kinds of environments. This module is designed with a CFP2 form factor and LC connector type, making it easy to plug into amplifiers, multiplexers and other compatible systems. The COHERENT OSFP is designed to support DWDM pluggable and DIGITAL OSFP. This module is the ideal choice for high-capacity, long-distance optical transport applications.
Packing and Shipping:
The Coherent Optical Module (COM) is designed to be safe and secure during transportation and storage. The COM should be packaged in a way that optimizes its protection from external damage. It should be packaged in a way that prevents any physical and environmental damage.
The packaging of the COM should include the following:
- A sturdy outer box made of corrugated or plastic material
- Components should be packed in an inner box that is securely sealed
- The inner box should be filled with a cushioning material, such as foam or bubble wrap
- The inner box should be further protected by a layer of cushioning material such as paper or plastic film
- The COM should be secured with shock-absorbent materials such as foam or rubber bands
When shipping the COM, the following should be taken into consideration:
- Ensure that the packaging is designed to protect the COM from shocks, vibrations, and extreme temperatures during transit
- Ensure that the packaging is designed to protect the COM from moisture, dust, and other contaminants
- Choose a shipping method that is reliable and secure
- Include appropriate documentation, such as a packing list and a bill of lading, for the shipment
By following these guidelines for packaging and shipping, the COM will be securely and safely transported to its destination.
