100G CFP2 DCO Coherent Optical Module Pluggable Transceivers For Modulator QPSK
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-C21HDCZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 7 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 100 pieces/month |
|
Detail Information |
|||
| Warranty: | 3 Years | Connector Type: | LC |
|---|---|---|---|
| Form Factor: | CFP2 | Modulator: | QPSK |
| Product Name: | Coherent Optical Module | Application: | DWDM Transmission |
| Transmission Distance: | 80km To 1200km | Optical Power: | 0~+5dBm |
| Highlight: | 100G Coherent Optical Module,CFP2 DCO Coherent Optical Module,CFP2 DCO Pluggable Transceivers |
||
Product Description
Coherent 100G CFP2 DCO Coherent Transceivers Pluggable Licensed For Modulator QPSK
Product Description:

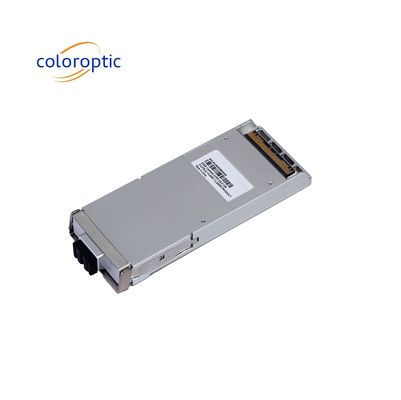

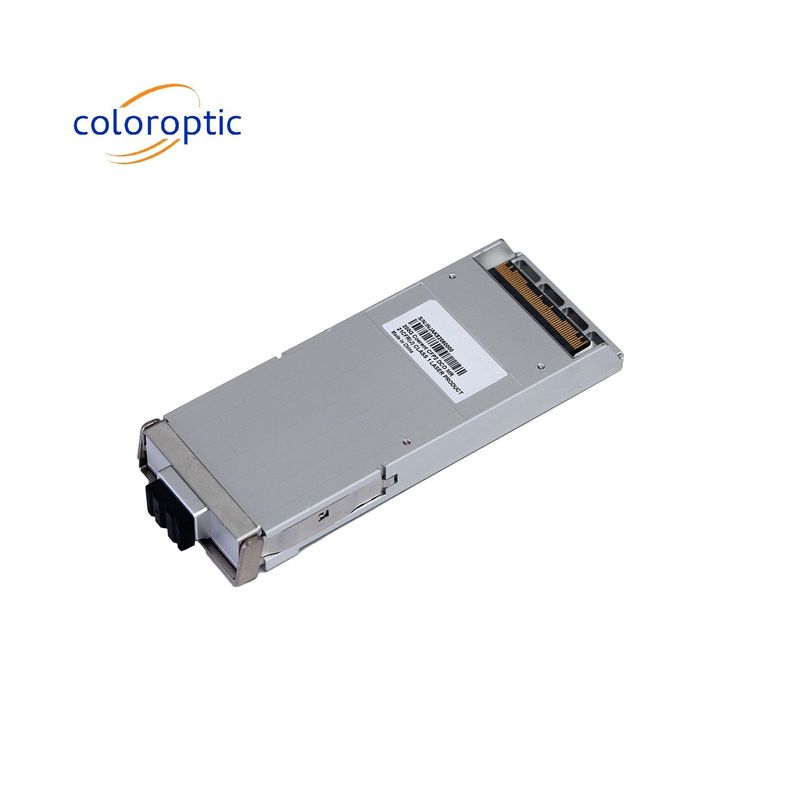

ColorOptics’ CO-C21HDCZ is a digital coherent optical transceiver module designed for 100G Ethernet and OTN OTU4 links reach up to 80km to 1200km over SMF, with CAUI and OTL4.10 electrical interface and MDIO management interface built in the module.
Features:
- Full C-band 50GHz ITU-T transmitter
- Built in Client and line OTN processing
- Low latency E-FEC / SD-FEC
- Data rate up to 128Gbps
- Compliant with CFP2 MSA, IEEE 802.3ba MAC, 100GE/200GE and OTN OTU4
- Compliant with OTL4.10 and CAUI
- Duplex LC receptacles
- Hot-pluggable electrical interface
- Commercial operating case temperature range: 0℃ to 70℃
- 3.3V power supply voltage
- RoHS compliant (lead free)
Technical Parameters:
| Part No. | CO-C21HDCZ | Form Factor | CFP2 |
| Data Rate | 100G | Distance | 80-1000KM |
| Wavelength | Coherent | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | Tunable Coherent Laser | Receiver Type | PIN |
| TX Power | .-10~+5.0dBm | Receiver Sensitivity | < -24.0dBm |
| Protocols | CFP2 MSA Compliant | Warranty | 3 years |
Applications:
Color Optic's CO-C21HDCZ Coherent Optical Module is a high-performance and cost-effective solution for data centers, enabling 100Gbps transmission rate over 10km of single-mode fiber. The COHERENT CFP2 optical transceiver is compliant with the industry standards and is suitable for multi-level modulation including 8/16-QAM and QPSK. It supports 0℃~+70℃ operating temperature range and is an ideal choice for DWDM transmission.
Packing and Shipping:
For the packaging and shipping of Coherent Optical Module, we take the following steps to ensure the product is delivered safely and securely:
- Pack the product in an ESD bag and place it in a sturdy box.
- Secure the box with strong tape and ensure that the box is not damaged during transit.
- Print a shipping label with customer's address and attach it to the box.
- Ship the box with a reliable delivery service.
- Track the shipment and make sure the product is delivered to the right address.
