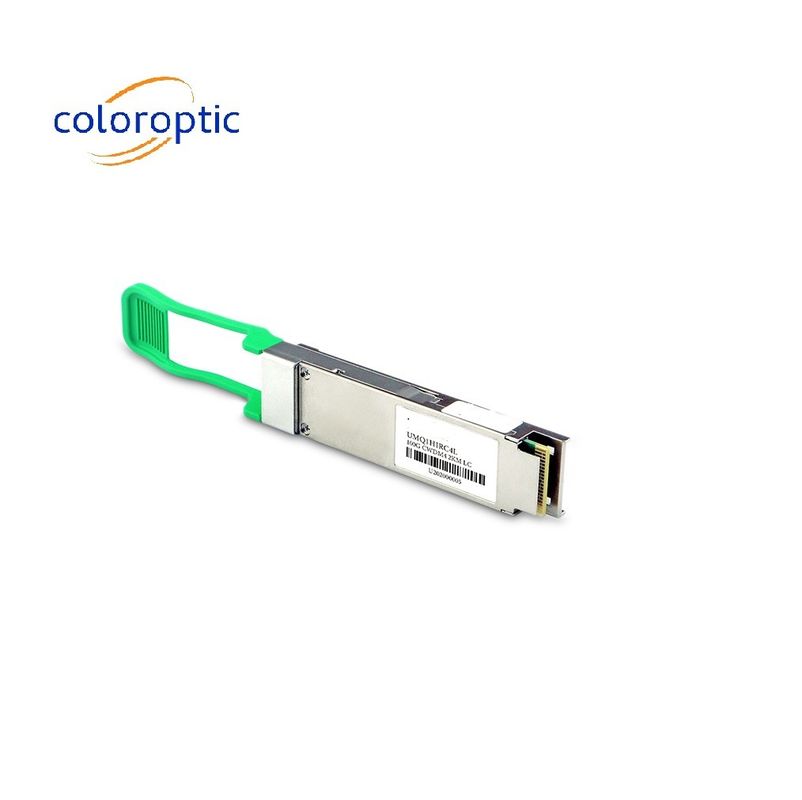

QSFP28 Cisco Optical Transceiver Module 1310nm 2km DOM Duplex LC SMF
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-S81H13CC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5 DAYS |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Transmitter Type: | DFB | Fector Type: | QSFP28 |
|---|---|---|---|
| Connector Type: | LC | Receiver Type: | APD |
| DDM: | Yes | Application: | Ethernet/ OTU4 |
| Data Rate: | 100G | Product Name: | QSFP28 Optical Module |
| Highlight: | QSFP28 Cisco Optical Transceiver,Cisco Optical Transceiver 1310nm |
||
Product Description
Cisco QSFP-100G-ER4L-S Compatible 100GBase-ER4L QSFP28 40km DOM Duplex LC SMF Optical Transceiver
Product Description:
’ColorOptic's is a Cisco® compatible 100GBASE-CWDM4 QSFP28 Optical Transceiver and is factory pre-programmed with all the necessary configuration data for fully compatible operation with all Cisco equipment offering QSFP28 slots. The ColorOptic CO-S81H13CC includes a dual-LC connector and supports the follow 2km transmission over standard singlemode fiber.
ColorOptic's device performs identically to Cisco® original transceivers, are 100% compatible and support full hot swappable operation. The CO-S81H13CC is 100% MSA (Multi-Source Agreement) compliant, see: QSFP MSA.
.
Features:
- Hot pluggable QSFP28 MSA form factor
- Supports 103 Gbps
- Up to 2km reach for G.652 SMF
- Single +3.3V power supply
- Transmitter: cooled 4x25 Gbps CWDM DML TOSA(1270, 1290, 1310, 1330nm)
- Receiver: 4x25 GbPS PIN ROSA
- 4x25G Electrical Serial Interface
- Maximum power consumption 3.5W
- RoHS-6 compliant (lead-free)

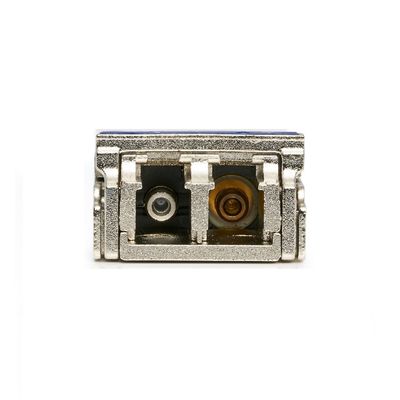

- Duplex LC receptacle
- LC interface with integrated Digital Diagnostic Monitoring
- Operating Case Temperature
- Standard 0 to +70C
- Extended -4 to +85C
Technical Parameters:
| Form Factor: | QSFP28 |
| TX Wavelength: | CWDM4 |
| Reach: | 2km |
| Cable Type | SMF |
| Rate Category: | 100GBase |
| Interface Type: | CWDM4 |
| DDM: | Yes |
| Connector Type: | Dual LC |
| Optical Power Budget: | 7.5dB |
| TX Power Min/Max | -4 to 2.5 dBm |
| RX Power Min/Max | -11.5 to 3.5 dBm |
FAQ:
- Q1: What is Color Optic SFP Optical Module?
- A1: Color Optic SFP Optical Module is an optical transceiver with the Model Number CO-S885LC, which is produced in China.
Want to Know more details about this product
