Innolight 400G QSFP-DD FR4 Module Singlemode WITH Dual CDR 10W Power Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-QDD85F4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Temperature Range: | 0~75℃ | Modulation: | PAM4 |
|---|---|---|---|
| Form Factor: | QSFP-DD | Application: | Ethernet Network |
| Data Rate: | 400G | Distance: | 2km |
| DDM: | Yes | Fiber Type: | Singlemode |
| Highlight: | Innolight 400G QSFP-DD FR4,400G QSFP-DD FR4 Module |
||
Product Description
Product Description:

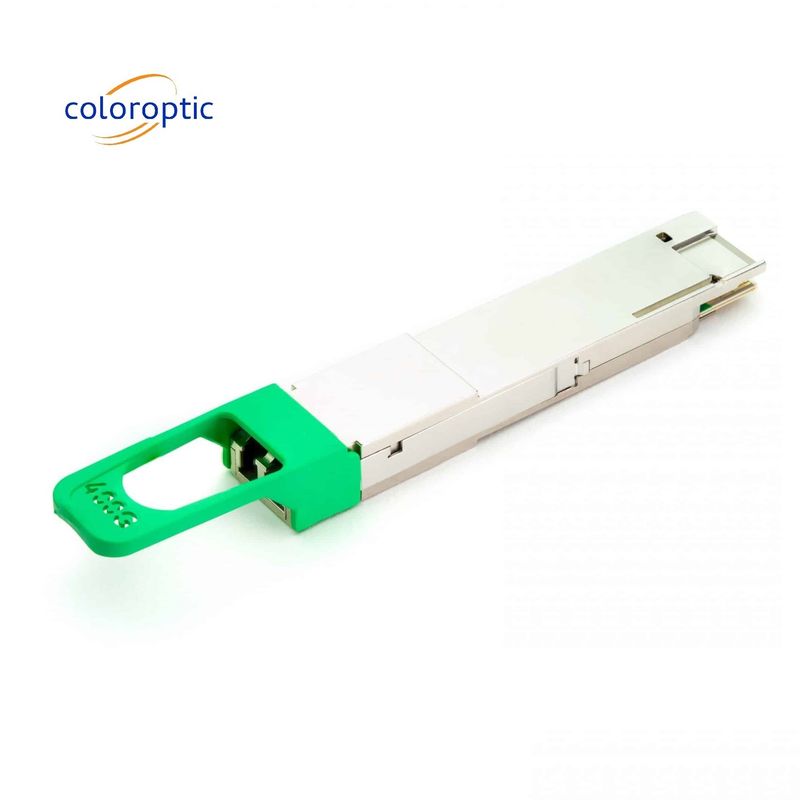

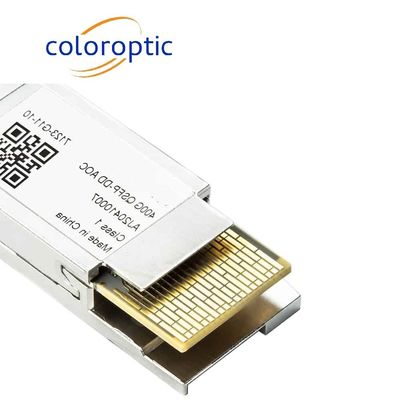

The CO-QDD85F4C is a QSFP-DD form-factor transceiver for 400Gbps Ethernet applications. It is intended for use in data center interconnect between switches, routers, storage equipment etc. for optical distances up to 2km over a SingleMode (SM) ribbon fiber cable.
The electrical interface consists of eight 53.125G signals (400GAUI-8) that are converted to eight PAM4-modulated channels/lanes to transport the Ethernet signal. The transceiver can also be set in 4x100GAUI-2 mode to enable 400G to 4x 100G break-out configurations. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP-DD MSA. The optical interface to the transceiver is an MPO12 connector.
Forward Error Correction (FEC) is required to be implemented by the host to ensure reliable system operation. The FEC type shall be as defined in IEEE802.3bj, i.e. Reed Solomon RS(544,514). The optical parameters will provide a bit error ratio (BER) of 2.4 x 10-4.
The transceiver is provided in two versions, compliant with Common Management Interface Specification CMIS4.0.
Universal QSFP-DD Transceiver
Use ColorOptic in combination with coding box to configure to almost any vendor
For 400GBASE-FR4 Ethernet links
Integrated Clock-Data-Recovery (CDR)
PAM4 modulated signal
Supported Data Rates: 425 Gbit/s
Up to 2 km via Singlemode OS2
LC-Duplex Connector
| FORM FACTOR | QSFP-DD |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode |
| TYPE | FR4 |
| DISTANCE | 2 km |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 4x (Tx/Rx) |
| BANDWIDTH | 425 Gbit/s |
| BANDWITH PER LANE | 106.25 Gbit/s |
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
|---|---|
| POWER CONSUMPTION | 12 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 4 dB |
| TRANSMIT MIN/MAX PER LANE | -3.3 dBm / 3.5 dBm |
| RECEIVER MIN/MAX PER LANE | -7.3 dBm / 3.5 dBm (overload) |
| WAVELENGTH TX (TYPICAL) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
| WAVELENGTH RX (TYPICAL) | 1271 nm, 1291 nm, 1311 nm, 1331 nm |
|---|---|
| LASER | EML |
| RECEIVER TYPE | PIN |
| MODULATION | PAM4 |
| TRANSMIT AND DISPERSION PENALTY | 3.4 dB |
| EXTINCTION RATIO | 3.5 dB |
| SUPPORTED PROTOCOLS | 400G Ethernet |
