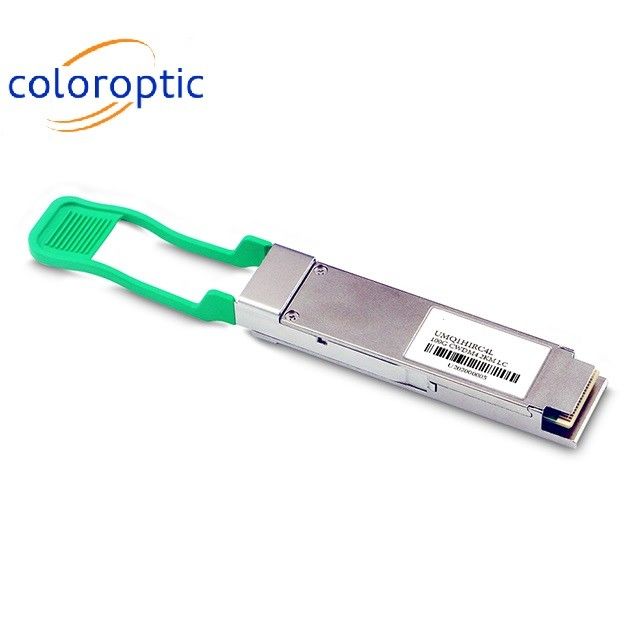

100G QSFP28 ZR4 SFP Optical Module 100GBASE-ZR4 Ethernet Links 80 Km Via Singlemode OS2
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE, FCC |
| Model Number: | CO-Q815Z4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 900 pieces/month |
|
Detail Information |
|||
| Fiber Type: | Singlemode | Form Factor: | QSFP28 |
|---|---|---|---|
| Transmitter Type: | EML | Warranty: | Lifetime |
| Connector Type: | Dual LC | Product Name: | 100G QSFP28 ZR4 |
| Wavelength: | 1550nm | DDM: | Yes |
| Highlight: | 100G QSFP28 ZR4 SFP Optical Module,QSFP28 SFP transceiver 80 Km,100GBASE-ZR4 QSFP28 SFP transceiver |
||
Product Description
Product Description:
Features:
- DuplexLCreceptacle optical interface
- Single +3.3V power supply
- Hot-pluggable QSFP28 MSA form factor
- 4x25GElectrical Serial Interface
- Compliant with 4x28G(CEI-28G-VSR)
- Built in digital diagnostic function
- Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
- Receiver: 4x25Gb/s SOA+PIN ROSA
- Operating case temperature range: 0℃ to 70℃
- Upto80kmreachfor G.652 SMFwith FEC
- Powerdissipation < 5.5 W
Technical Parameters:
| FORM FACTOR | QSFP28 |
|---|---|
| CONNECTOR / POLISH | LC-Duplex PC |
| INTERFACE | Singlemode |
| TYPE | ZR4 |
| DISTANCE | 80 km |
| TEMPERATURE RANGE | 0°C - 70°C |
| LANE COUNT | 4x (Tx/Rx) |
| BANDWIDTH | 103.12 Gbit/s |
| BANDWITH PER LANE | 25.78 Gbit/s |
|---|---|
| DIGITAL DIAGNOSTIC MANAGEMENT (DDM) | Yes, internally calibrated |
| POWER CONSUMPTION | 5.5 W |
| CDR | TX and RX |
| SGMII | No |
| INBUILT FEC | No |
| POWERBUDGET (DB) | 28.9 dB |
| TRANSMIT MIN/MAX PER LANE | 2 dBm / 6.5 dBm |
| RECEIVER MIN/MAX PER LANE | -26.9 dBm / 2 dBm (overload) |
|---|---|
| WAVELENGTH TX (TYPICAL) | 1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm |
| WAVELENGTH RX (TYPICAL) | 1295.6 nm, 1300 nm, 1304.6 nm, 1309.1 nm |
| LASER | EML |
| RECEIVER TYPE | SOA + PIN |
| MODULATION | NRZ |
| EXTINCTION RATIO | 8 dB |
| SUPPORTED PROTOCOLS | 100G Ethernet |
Applications:
100GBASE-ZR4Ethernet Links
Infiniband QDR and DDR interconnects
100GDatacomconnections
Packing and Shipping:
Our SFP optical module is carefully packaged to ensure its safe delivery to our customers.
The SFP optical module is packaged in a sturdy and compact box to protect it from any damage during transportation. The box is made of high-quality materials and is designed to withstand rough handling and extreme weather conditions.
Inside the box, the SFP optical module is placed in an anti-static bag to prevent any electrostatic discharge that could potentially damage the module.
We offer various shipping options to our customers to ensure their convenience and satisfaction. Our standard shipping method is through reputable courier services, such as DHL, FedEx, and UPS.
For customers who require urgent delivery, we also offer expedited shipping options at an additional cost.
Once the SFP optical module is shipped, we will provide our customers with a tracking number so they can track their package and know the estimated delivery date.
We take great care in packaging and shipping our SFP optical modules to ensure they arrive at their destination in perfect condition.
