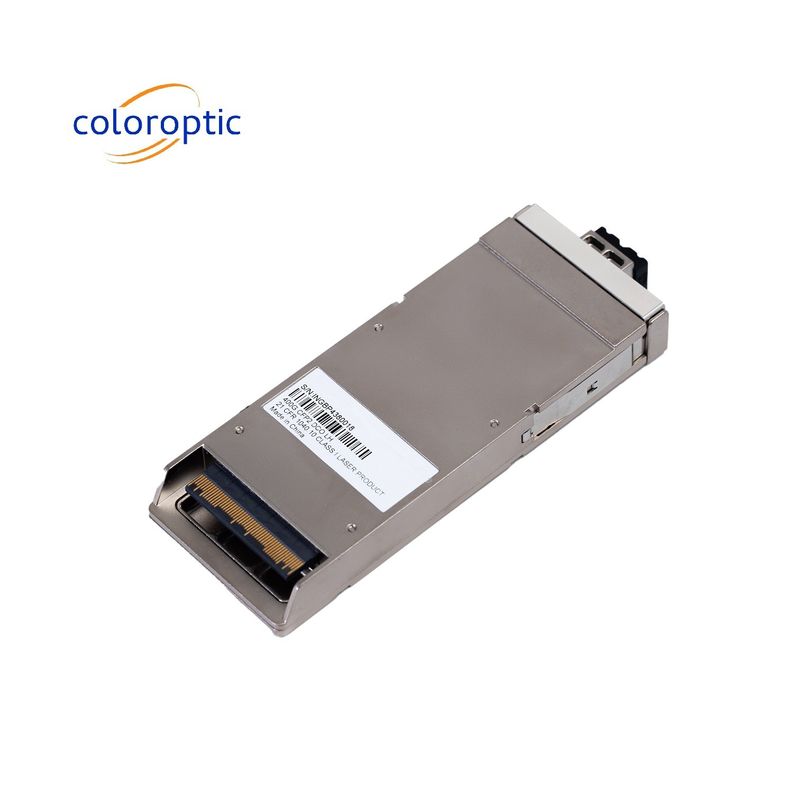

100G MR CFP2 MSA Digital Coherent Optics Transceiver Module With 7nm NEL DSP
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-C21HCOMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | Coherent |
|---|---|---|---|

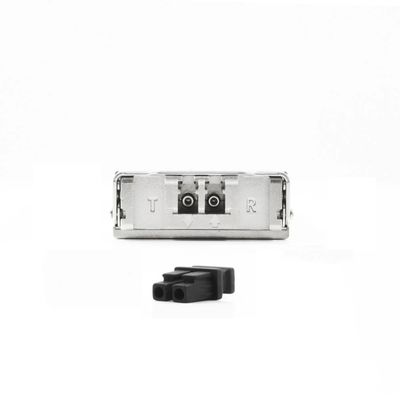

| Distance: | 80~up Km | Connector: | Duplex LC |
| Form Factor: | CFP2 | Temperature: | 0~70°C |
| DDM: | Yes | Voltage: | 3.3V |
| Protocals: | MSA | Warranty: | 3 Years |
| Highlight: | MSA Digital Coherent Optics,100G Digital Coherent Optics,100G CFP2 Module |
||
Product Description
100G MR CFP2 MSA Digital Coherent Optics Transceiver With 7nm NEL DSP
This is is a digital coherent optical transceiver module designed for 100G Ethernet and OTN OTU4 links reach up to 80km to 1200km over SMF, with CAUI and OTL4.10 electrical interface and MDIO management interface built in the module.
Key Features
Application
Product Details
| 100G CFP2 DCO | |||||||
| Features: |
|
||||||
| 7nm NEL DSP | |||||||
| C band:191.3 ~ 196.1THz, Flex Grid | |||||||
| Support Line side: | |||||||
|
100G DP-QPSK OFEC |
|||||||
| Support Flexible client-side: | |||||||
| OTU4/100GE for 100G | |||||||
| l CFP MSA IEEE802.3 Clause 45 compliant MDIO | Applications: | ||||||
| l Compliant to OIF-CFP2-DCO-01.0 | •OTN | •DCI | |||||
| l 104pin CFP2 MSA connector | •Metro | ||||||
| l 0~70℃ case temperature | |||||||
| l Hot Swappable | |||||||
| Main Parameters: | |||||||
| Parameter | Symbol | Min | Typical | Max | Units | Note | |
| Operating Case Temperature | TOP | 0 | 70 | degC | |||
| Operating Input Optical Power of Signal | Psig | -18 | 0 | dBm | |||
| Transmitter output power range | Pout | -9 | 7 | -2 | dBm | ||
| Frequency Range | f | 191.3 | 196.1 | THz | |||
| Receiver Sensitivity | SEN | -32 | dBm | ||||
| OSNR sensitivity | OSNR | 11.5 | dB/0.1nm | ||||
| Power Consumption | 18 | W | |||||
Innovations
The manufacturing environment is strictly compliant with most advanced technological standards, ensuring our products a long term reliability.
Quality & Assurance
Our Cutting-Edge test equipment verifies that each of our products meets our high-quality standards
Customization
Thanks to the specialists of our Engineering Department, we have full control over both the hardware and the software of all our transceivers. Need your personal labelling? No problem, just ask and we provide!
Multi-Compatibility
ColorOptic offers a true cost-effective solution for all major platforms including the original vendor firmware.
Technical Support
Any issues with your equipment? We are already dispatching an engineer to your premises to fix it. We are 7x24 hours online supports.
