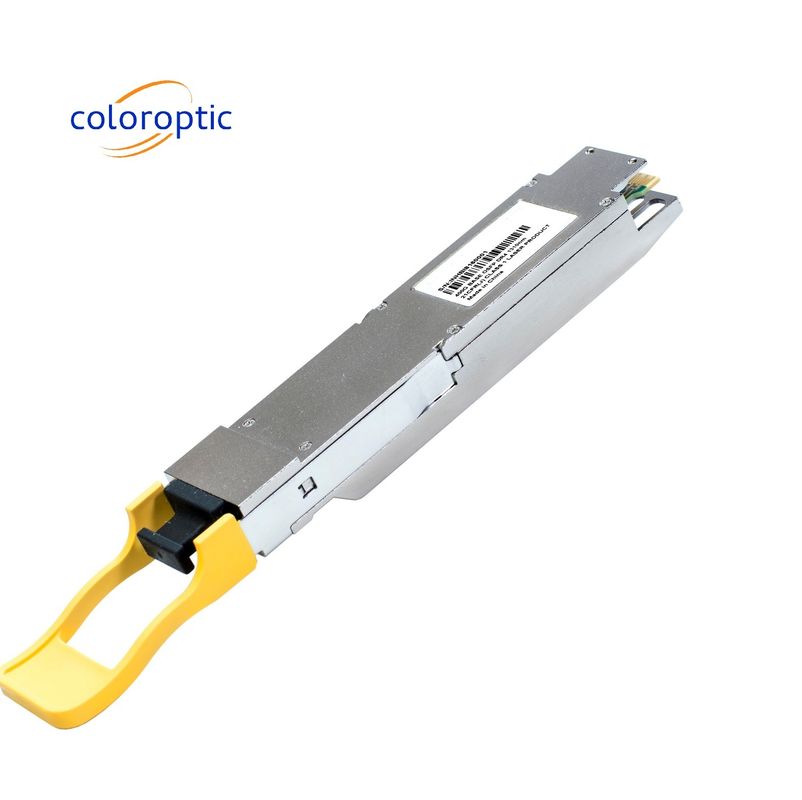

400G OSFP ZR DCO Coherent Transceivers W / 7nm Marvell DSP Flex Grid SCFEC CMIS 5.0
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-OP4HCOZC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | Coherent |
|---|---|---|---|

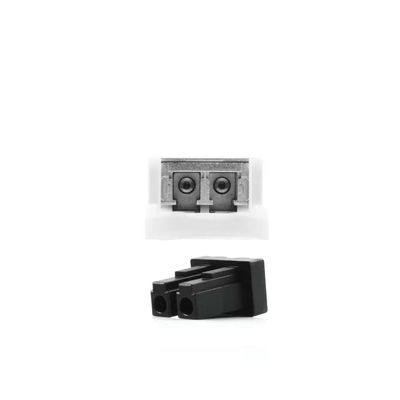

| Distance: | 120 Km | Connector: | Duplex CS |
| Form Factor: | QSFP | Temperature: | 0~75°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | CMIS5.0, OIF Coherent CMIS1.1 | Modulation Format: | DP-16QAM CFEC |
| Highlight: | OSFP Coherent Transceivers,400G Coherent Transceivers |
||
Product Description
400G OSFP ZR DCO W/7nm Marvell DSP & Flex Grid, SCFEC & CMIS 5.0, 3.3v Power Supply
This is 400G OSFP ZR transceiver module is capable of transmission distances up to 120km and compliant to the OIF 400G ZR standard, while 400G OSFP ZR+ transceiver module is capable of transmission distances up to 480km and compliant to the Open ZR+ standard. Both modules are using the Silicon Photonics (SiPho) based optical engine and the latest DSP generation that enables 400G coherent transmission. The OSFP form factor and CMIS5.1 support makes them suitable for transmission applications using Ethernet switch equipment.
Key Features
Application
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | Note |
| Operating Case Temperature | TOP | 0 | 75 | degC | ||
| Operating Input Optical Power of Signal | Psig | -12 | 0 | dBm | ||
| Transmitter output power range | Pout | -10 | -6 | |||
| Frequency Range | f | 191.3 | 196.1 | THz | ||
| Receiver Sensitivity | SEN | -20 | dBm | |||
| OSNR sensitivity | OSNR | 26 | dB/0.1nm | |||
| Power Consumption | 18 | W | ||||
|
Quality Assurance Excellent quality is the foundation of Coloroptic' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry.
Quality Certification We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, ISO 14001, CE, RoHS, FCC, etc. 100% 3rd Party CompatibleColoroptic Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, we will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system. |
