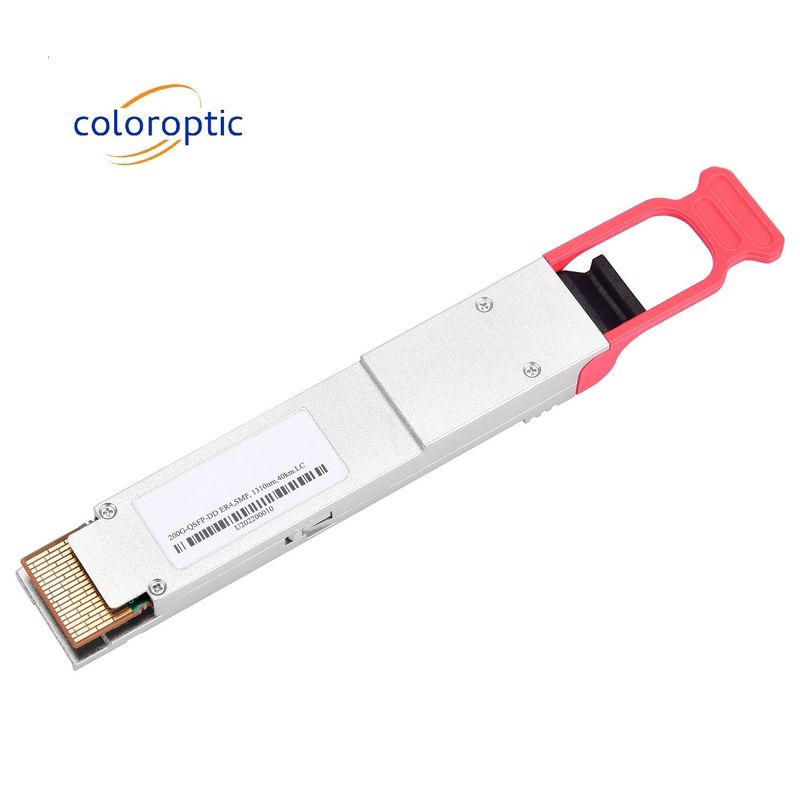

200G QSFP-DD LR4 Optical Transceiver Module 10km With Full Real Time DDM
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD2H13LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 200G | Wavelength: | 4LWDM |
|---|---|---|---|
| Distance: | 10 Km | Connector: | Duplex LC |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | IEEE802.3bs 200GBASE-LR4 | Application: | Data Center Interconnect |
| Highlight: | LR4 Optical Transceiver,DDM Optical Transceiver,200G QSFP-DD Module |
||
Product Description

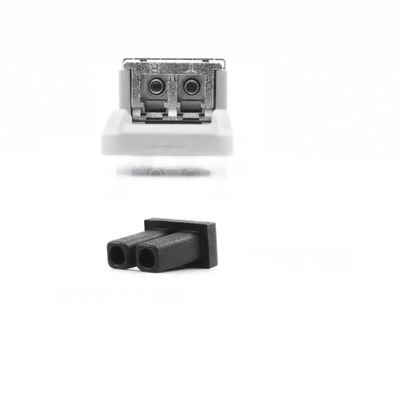

This product is a 200Gb/s transceiver module designed for 10km optical communication applications. The design is compliant to IEEE802.3bs 200GBASE-LR4 standard. The module converts 8 input channels(ch) of 25Gb/s electrical data to 4 channels of LWDM optical signals, and multiplexes them into a single channel for 200Gb/s (PAM4) optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 200Gb/s(PAM4) input into 4 LWDM channels of signals, and converts them to 8 channels output electrical data . The central wavelengths of the 4 LWDM channels. It contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 10km fiber transmission. The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Key Features
Application
· 200G Ethernet
· Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 10 | km | ||
| Power Consumption | 10.8 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1296.59 | nm | ||
| L1 | 1299.02 | 1301.09 | nm | |||
| L2 | 1303.54 | 1305.63 | nm | |||
| L3 | 1308.09 | 1310.19 | nm | |||
| Average Launch Power,each Lane | PAVG | -3.4 | 5.3 | dBm | ||
| OMA, each Lane | POMA | -0.4 | 5.1 | dBm | ||
| Average Receive Power,each Lane | -9.7 | 5.3 | dBm | |||
| Receive Power(OMA),each Lane | 5.1 | |||||
| Receiver Sensitivity(OMA),each Lane | SEN | max(-7.2,SECQ-8.6) | dBm | For BER of 2.4E-4 |
