100G QSFP28 LR1 Optical Transceiver DDM With Low Power Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81H13SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | 1310 Single Lamda |
|---|---|---|---|
| Distance: | 10 Km | Connector: | LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | MSA |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Protocols:: | To IEEE 802.3ba 100GBASE-LR1 LITE | Application: | 100GBASE-LR1 Ethernet Links |
| Highlight: | QSFP28 Optical Transceiver,100G Transceiver DDM,LR1 Transceiver DDM |
||
Product Description

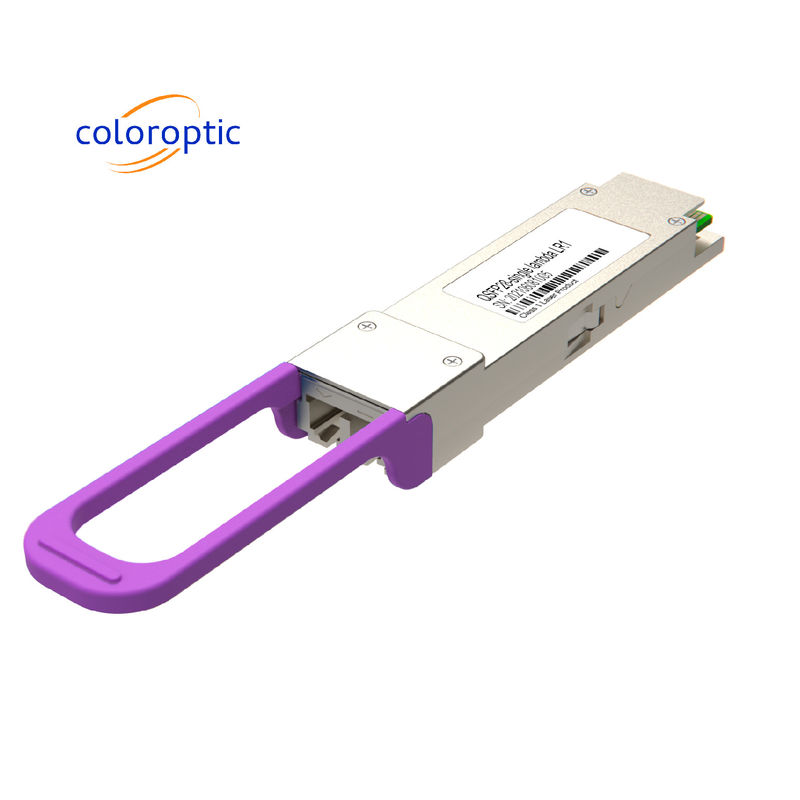

100G QSFP28 LR1 Optical Transceiver With Low Power Consumption
100G QSFP28 LR1 optical Transceiver integrates receiver and transmitter path on one module. This module features a hot-pluggable electrical interface, low power consumption and 2-wire serial interface.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3ba
Key Features
- QSFP28 MSA compliant
- Supports 53.125Gbaud
- 100G Lambda MSA 100G-LR1
- Specification compliant
- Up to 10km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 4x25G electrical interface (OIF CEI-28GVSR)
- Maximum power consumption 4.5W

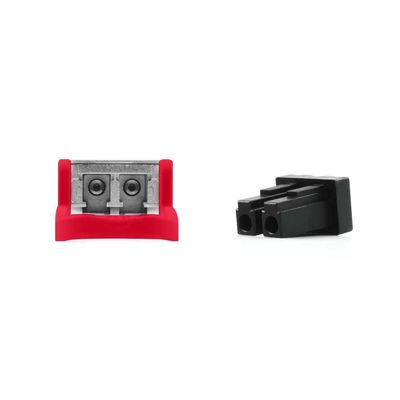

- LC duplex connector
- RoHS compliant
Application
· Infiniband QDR and DDR interconnects
· Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.002 | 10 | km | ||
| Power Consumption | 4.5 | W | ||||
| Center Wavelength | λC | 1304.5 | 1317.5 | nm | ||
| Average Launch Power | PAVG | -1.4 | 4.5 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter) |
POMA | 0.7 | 4.7 | dBm | ||
| Average Receive Power | -7.7 | 4.5 | dBm | |||
| Receive Power(OMA) | 4.7 | dBm | ||||
| Receiver Sensitivity(OMA) | SEN | max(-6.1,SECQ-7.5) | dBm |
Outline Dimensions:
Handling Precautions: This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines according to proper ESD procedures. Laser Safety: Taclink transceiver uses a semiconductor laser system and is a laser class1 product acc. FDA, complies with 21CFR1040.10 and 1040.11.Also this product is a laser class1 product acc.IEC 60825-1
