100G QSFP28 SWDM4 SFP Optical Module Transceiver For Duplex MM Ethernet LC Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-Q81HSWSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 100G | Wavelength: | SWDM4 |
|---|---|---|---|
| Distance: | 150m | Connector: | LC |
| Form Factor: | QSFP28 | Temperature: | 0~70°C |
| DDM: | Yes | Protocals: | SWDM MSA, IEEE802.3bm CAUI-4 |
| Warranty: | 3 Years | Label: | Can Be Customized |
| Power Dissipation: | <3.5W | Application: | 100GBASE-ER1 Ethernet Links |
| Highlight: | 100G SFP Optical Module,SWDM4 SFP Optical Module,QSFP28 SWDM4 Transceiver |
||
Product Description
100G QSFP28 SWDM4 Transceiver Module for Duplex MM Ethernet LC connector
The 100G QSFP28 SWDM4 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 25.78Gbps to transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.
Key Features
- Compliant with QSFP28 MSA
- Compliant with SWDM MSA
- Compliant with IEEE802.3bm CAUI-4
- Hot-pluggable QSFP28 form factor
- 4x25Gb/s 850mm VCSEL-based transmitter
- Supports 103.1Gbps aggregate bit rate
- Power dissipation<3.5W
- Maximum link length of 150m on OM5 multimode Fiber
- Case temperature range of 0°C to 70°C

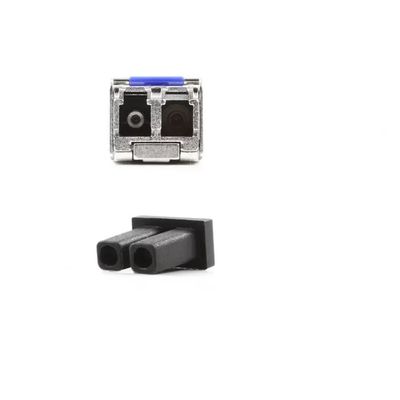

- Duplex LC receptacles
- CAUI-4 electrical interface
- RoHS compliant
Application
· Enterprise networking
Product Detail
It is uniquely serialized and data-traffic and application tested to ensure that they will integrate into your network seamlessly. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Notes:
1. RMS spectral width is the standard deviation of the spectrum.
2. The normative lowest value of OMA for a compliant transmitter is ‘Launch power in OMA minus TDEC, each lane (min)’ plus the actual value of ‘TDEC’, but with a value of at least ‘OMA, each lane (min)’.
3. TDEC is calculated from the measured TDECm using the methods in 3.6. TDECm is measured following the method in IEEE 802.3 clause 95.8.5 using a 12.6 GHz bandwidth reference receiver for all lanes.
4. If measured into type A1a.2 or type A1a.3 50 um fiber in accordance with IEC 61280-1-4.
Outline Dimensions:
