Optical QSFP DD Module 500m 400G DR4 Transceiver MPO-12 Connector
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD4H13LC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 400G | Wavelength: | 1310nm |
|---|---|---|---|
| Distance: | 500m | Connector: | MPO 12 |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | IEEE 802.3bs 400GBASE-DR4 |
| Application: | Infiniband Interconnects | Cable Type: | Single Mode |
| Highlight: | Optical QSFP DD Module,QSFP DD Module 500m,400G DR4 Transceiver |
||
Product Description

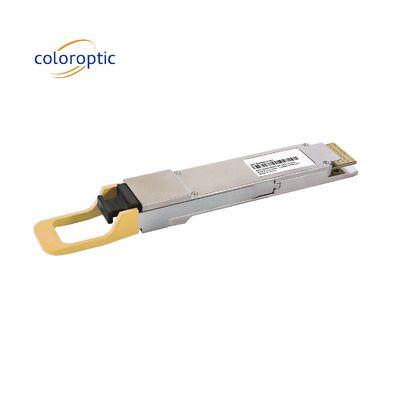

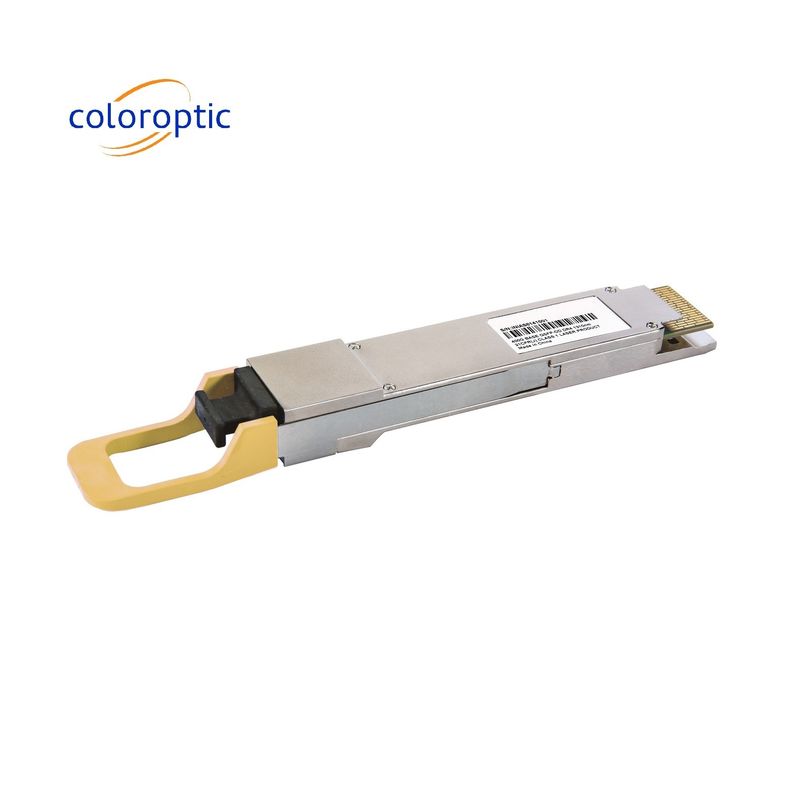

400G QSFP-DD DR4 500m Optical Transceiver W/MPO-12 Connector/Infiniband
This is 400G QSFP-DD DR4 500m with FEC optical transceiver with full real-time digital diagnostic monitoring and pull tab. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.
Key Features
- QSFP-DD MSA compliant
- Parallel 4 Optical Lanes
- IEEE 802.3bs 400GBASE-DR4 Specification compliant
- Up to 500m transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 8x53.125Gb/s electrical interface (400GAUI-8)
- Data Rate 106.25Gbps (PAM4) per channel
- Maximum power consumption 12W

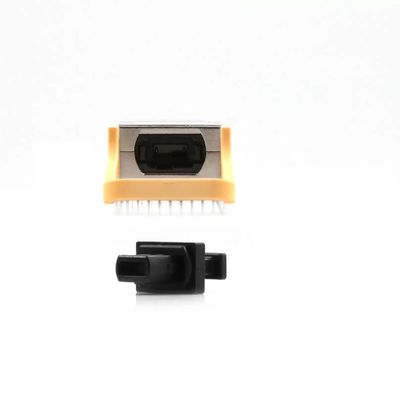

- MPO-12 connector
- RoHS compliant
Application
- 400G Ethernet
- Infiniband interconnects
- Datacenter Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 2 | 500 | m | ||
| Power Consumption | 12 | W | ||||
| Center Wavelength | λC | 1304.5 | 1310 | 1317.5 | nm | |
| Average Launch Power, each Lane |
PAVG | -2.9 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter), each Lane |
POMA | -0.8 | 4.2 | dBm | ||
| Average Receive Power, each Lane |
-5.9 | 4 | dBm | |||
| Receiver Sensitivity (OMAouter), each Lane |
SEN | max(-3.9,SECQ-5.3) | dBm |
