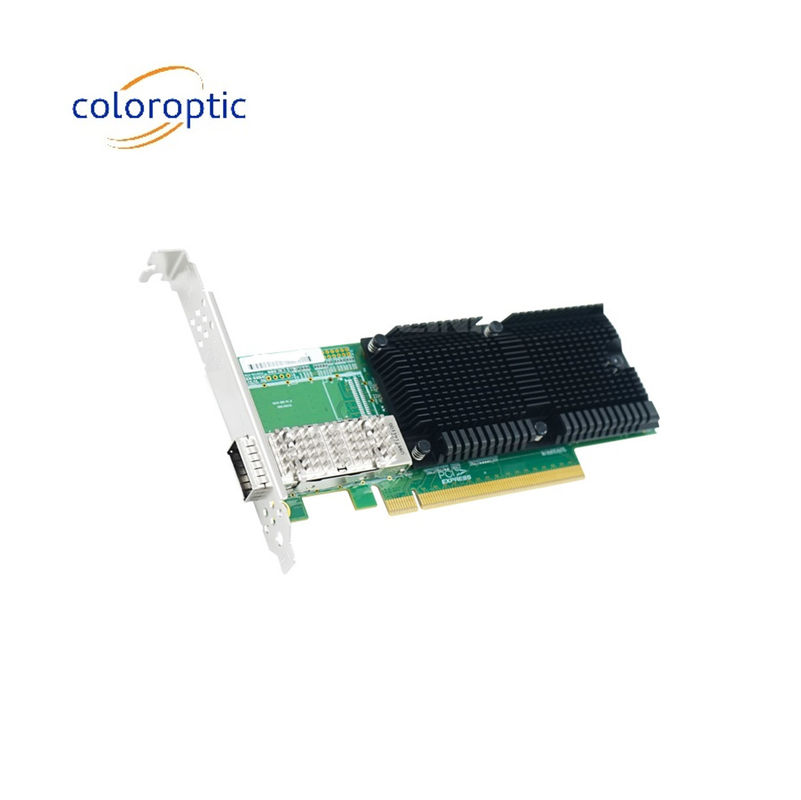

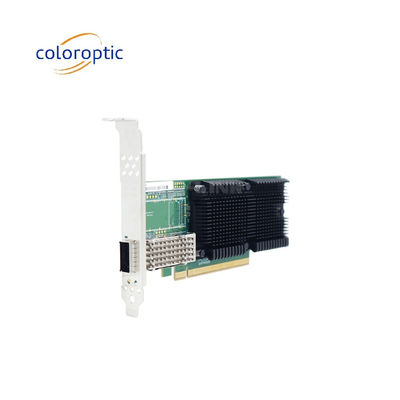

PCIe X16 Network Single Port Ethernet Card Adapter QSFP28 100G Intel E810
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-1019PF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 7 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 6000 pieces/month |
|
Detail Information |
|||
| Product Name: | Network Adapter | Operating Temperature: | 0-50°C |
|---|---|---|---|
| Bus Type: | PCIe | Interface Standard: | PCI-Express 3.0 Specification |
| Humidity: | 5%-95% | Dimensions: | 165mm X 69mm |
| Certifications: | CE, FCC, RoHS | Weight: | 130g |
| Highlight: | PCIe X16 Single Port Ethernet Card,Network Single Port Ethernet Card |
||
Product Description
PCIe x16 Single-port 100G QSFP28 Ethernet Network Adapter (Intel E810)
Product Description:
CO-1019PF is a PCI express v4.0 x16 single-port 100G ethernet network adapter developed by Color Optic limited. on the basis of the Intel chip. It is supplemented by the expansion function of hardware acceleration data packet processing, and the application queue technology is introduced. This technology can realize the NVMe support of Fabric TCP. It also has selective support for the iWARP and RoCEv2 functions of RDMA. This adapter can at the same time, it is backward compatible with PCIe v3.0 & v2.0. The adapter card achieves a dual-port bidirectional communication transmission rate with a theoretical throughput of 400GB on a PCI express v4.0 x16 bus.
The ethernet optical fiber network card with independent intellectual property rights (CO-1019PF) launched by Color Optic limited., the network card adopts the application queue technology function to ensure that each application can request its own queue. That is to say, the data between each other is no longer confused, with an interface speed of up to 100Gbps, which can be widely used in data center services, cloud computing, storage and other network equipment that can handle various workloads with high throughput, and combined in actual operation The use of program queues can reduce application latency and increase throughput.
The fiber optic network card provides scalable ADQ technology to improve the performance scalability and predictability of critical workloads by dedicating specific resources to critical workloads. ADQ uses an optimized application thread to device data path to implement application-specific data control, information and rate limiting functions.
Technical Parameters:
| Controller | Intel Chip |
| Baffle Height | Half height & full height baffle |
| Power Consumption | 15.0W |
| System Support | Windows Server 2016 R2/2019 R2 |
| CentOS/RHEL 7.x or later | |
| Ubuntu 16.x or later | |
| FreeBSD 11.x/12.x or later | |
| Bus Type | PCI Express v4.0 x16, Compatible with PCI Express v3.0 |
| Data rate | 100GbE |
| Connector | 1*QSFP28 |
| Protocol Support |
IEEE 802.3bj 100GBASE Ethernet IEEE 802.3cd 50Gb/s IEEE P802.3by 25Gb/s IEEE 802.3ae 10GBase-X IEEE 802.3x Full Duplex and flow control IEEE 802.3az IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2 |
| iSCSI | Yes |
| WoL | No |
| Jumbo Frames | Yes |
| DPDK | Yes |
| PXE | Yes |
| FCoE | No |
|
RDMA (iWARP,RoCEv2) |
Yes |
| Network virtualization | SR-IOV,VxLAN,GENEVE,GRE |
Support and Services:
- 24/7 Technical Customer Support
- Guidance and Assistance for Installation and Setup
- Hardware and Software Troubleshooting
- Comprehensive Documentation and Tutorials
- Software and Firmware Updates
- Product Replacement and Exchange
FAQ:
- Q: What is Infiniband Pcie Card?
- A: Infiniband Pcie Card is a network adapter card designed by Color Optic, Model CO- , that enables high-speed network communication in computer systems.
- Q: What are the advantages of using Infiniband Pcie Card?
- A: Infiniband Pcie Card provides fast data transfer speeds, low latency, and improved scalability and reliability.
- Q: What type of systems can use Infiniband Pcie Card?
- A: Infiniband Pcie Card is compatible with most systems, including servers, workstations, and mobile devices.
- Q: Where is the Infiniband Pcie Card manufactured?
- A: The Infiniband Pcie Card is manufactured in China by Color Optic.
- Q: What is the maximum data transfer speed of Infiniband Pcie Card?
- A: The maximum data transfer speed of the Infiniband Pcie Card is 40 Gbps.
