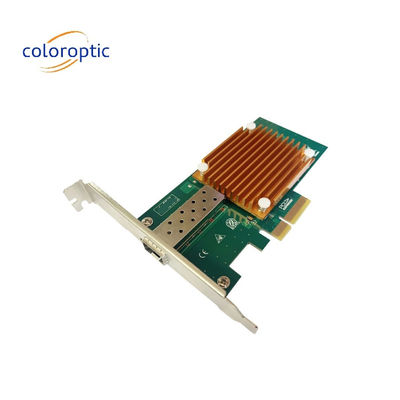

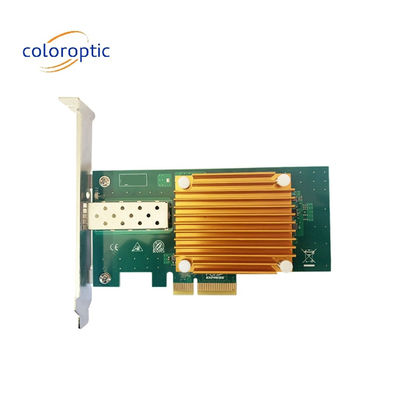

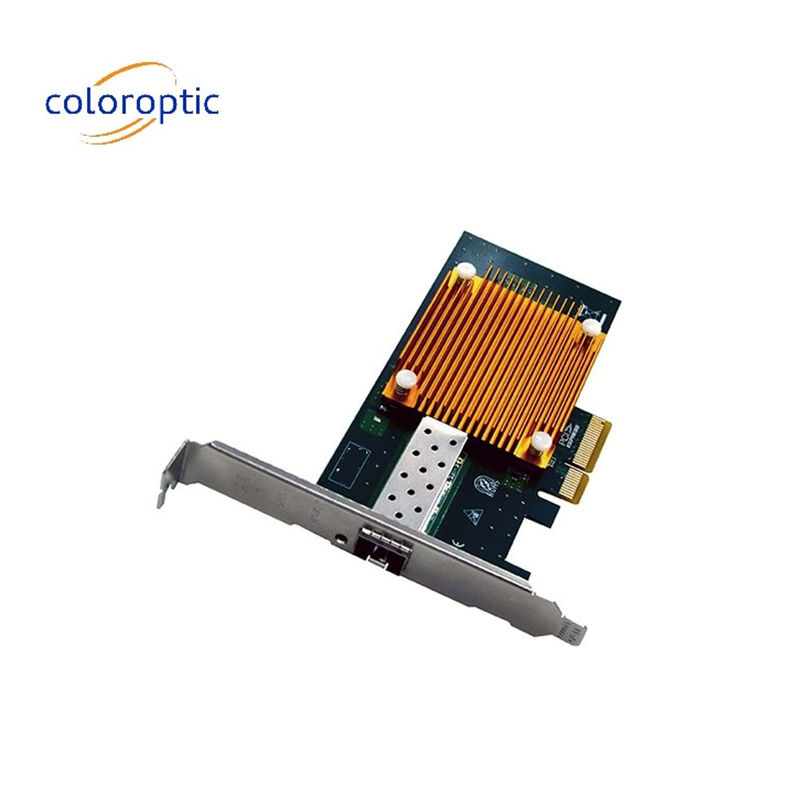

CO-1001E Infiniband Pcie Card PCI Express X4 10G SFP+ Ethernet Network Adapter
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-1001E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| PCI Express Voltage: | +12V ±8% | Dimensions: | 165mm X 69mm |
|---|---|---|---|
| Interface Standard: | PCI-Express 3.0specification(8GT/s) | Operating Temperature: | 0-50°C |
| Humidity: | 5%-95% | Bus Type: | PCIe |
| Warranty: | 3 Years | Weight: | 170g |
| Highlight: | Single Port Infiniband Pcie Card,Infiniband Pcie Card 10G,Ethernet Pci Express X4 Card |
||
Product Description
Efficient Data Transmission with Infiniband Pcie Card -20-70°C Operating Temperature
Product Description:
CO-1001E is a PCI Express X4 Single-port 10G SFP+ Ethernet network adapter developed independently by GRT based on the GRTN4010 master scheme. At the same time it can be compatible with PCIe x4, PCIe X8, PCIe x16 channels.
The company's products have passed FCC, CE, ROHS and other international authoritative certification and national industry certification.
Technical Parameters:
| Features | Benefits |
| PCI Express Host Interface | |
| PCI Express 2.0 specification | High performance standard bus type, support PCI-Ex4, x2, x1 |
| Reduced the System Complexity | |
| 1M bit internal controller | Free of on-board dynamic ROM |
| Internal OTP | Free of Flash and EEPROM |
| Ethernet Support | |
| Full compatibility of IEEE Std 802.3ae | Port auto-negotiation |
| Jumbo Frame (16 k) | Higher utilization for large data transmission network |
| Support IEEE 8021g VLAN | Communication Security Isolation |
| RFC2819 RMON MIB Statistic | General Statistical Tests |
| Multiplexing | Reduced Network Traffic |
| Support IEEE 802.3 Link Aggregation | Maximizes the network throughput by aggregation |
| Boost Engines | |
| Integrated OptiStratar Accelerator | Flexible data packet processing and TCP/IP stack |
| Performance Optimization | |
| Microsoft Scalable Network | Reduce the Host Bus Traffic |
| Receive-side Scalable(RSS) | Supports multi-core system effectively |
| MSI | Reduces overhead and eliminate interrupt sharing |
| IP/TCP/UDP Checksum Offload | Reduces CPU Usage |
| Low latency(< 4us) | Ideal solution for high performance computingapplication |
| Operating System | |
| Windows Server 2012 Server 2008 R2Win 8,Win 7 |
Seamless Software Integration |
| Linux 2.6.xLinux 3x | No interference with existing TCP/IP |
| vmware®5xHyper-V | Advanced multi-core processor support |
| Manageability | |
| Advanced Communication Signal Diagnosis |
Onsite and network connection commissionino |
| Comprehensive internal Self-test | Increases the output and reliability, reduces thetotal costOptimizes svstem management and thermal design |
| Electricity | |
| Voltage | 3.3V &120V |
| Power Dissipation | 4.12W |
| Operating Temperature | 0C-70C |
| Storage Temperature | -40°C to 85°C |
Customization:
- Brand Name: Color Optic
- Model Number: CO-1001E
- Place of Origin: China
- Bus Type: PCIe 3.0
- Operating System: Windows/Linux
- Certifications: CE, FCC, RoHS, EMC Certification
- Product Name: Infiniband Pcie Card
- Humidity: 5%-95%
Support and Services:
Infiniband PCIe Card Technical Support and Services
- Diagnosis and troubleshooting of Infiniband PCIe Card hardware and software.
- Installation and configuration of Infiniband PCIe Card.
- Upgrading of Infiniband PCIe Card.
- Maintenance and replacement of Infiniband PCIe Card.
- 24/7 toll-free technical support and online chat.
- User manuals, drivers, and firmware updates.
FAQ:
Q1: What is Infiniband Pcie Card?
A1: The Infiniband Pcie Card is a PCIe card produced by Color Optic (Model Number: CO-) and made in China. It is designed to provide high-bandwidth and low-latency communication between servers, storage systems, and network devices in data centers.
Q2: What are the features of Infiniband Pcie Card?
A2: The Infiniband Pcie Card offers excellent performance, scalability, and reliability. It supports data transfer rates of up to 40 Gb/s and provides a latency rate of less than 8 microseconds. It also supports a wide range of communication protocols, including Infiniband, Ethernet, and iSCSI.
Q3: What is the maximum data transfer rate of Infiniband Pcie Card?
A3: The Infiniband Pcie Card supports a maximum data transfer rate of up to 40 Gb/s.
Q4: What are the benefits of using Infiniband Pcie Card?
A4: The Infiniband Pcie Card provides high-bandwidth and low-latency communication between servers, storage systems, and network devices in data centers. It also offers excellent scalability and reliability, and supports a wide range of communication protocols.
Q5: What communication protocols are supported by Infiniband Pcie Card?
A5: The Infiniband Pcie Card supports Infiniband, Ethernet, and iSCSI protocols.
