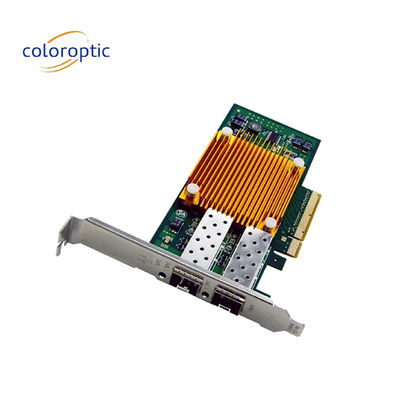

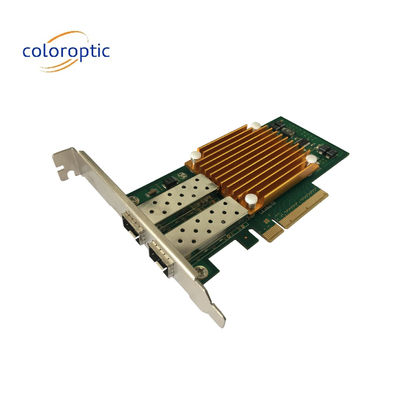

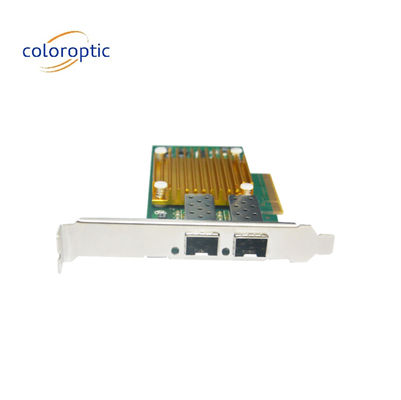

10G Dual Port Infiniband Pcie Card Optical NIC Pci Express 3.0 Pcie Gigabit Card
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-1002E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Interface Standard: | PCI-Express 3.0specification(8GT/s) | Operating System: | Linix/ Windows |
|---|---|---|---|
| Weight: | 170g | Warranty: | 3 Years |
| Product Name: | Infiniband Pcie Card | Humidity: | 5%-95% |
| PCI Express Voltage: | +12V ±8% | Dimensions: | 165mm X 69mm |
| Highlight: | 10G Infiniband Pcie Card,Optical Infiniband Pcie Card,Infiniband Pcie Gigabit Card |
||
Product Description
Pcie Gigabit Card10G Dual Port Optical NIC CO-1002E Pci Express 3.0
Product Description:
Technical Parameters:
| Model No. | CO-1002E |
| Ethernet Controller | Intel® 82599ES 10Gb Ethernet Controller |
| Connector Type | PCI Express 2.0 |
| Bus Type | PCI Express 2.0 |
| Max. Bus Rate | 8 x 5 GT/s channel |
| Port | Dual Port |
| Host height supportable | 2U or 1U |
| Smart Uninstall | Yes |
| Intel Virtualization Technology(Intel VT) |
Integrated built-in function support: Quality of Service(OoS) Traffic Management, Flexible PortPartition, Virtual Machine Device Queues(VMDq)PCI-SIG*SR-IOV support |
| Ethernet Storage | iSCSIFCOE,NFS |
| Performance Optimization | UDP/TCP/IP Checksum OffloadUDP/TCP Transmit Segmentation Offload(TSOSCTP Receive and Transmit Checksum Offload |
| Virtualization | Support Next generation VMDq Support ( 8 VMs) Support 8 vms per each port Support PCI-SIGI/O SR-IOV(Direct Assignment) Queue per Port: 8Tx and 8Rx |
| Energy-Saving Features | Advanced Confiquration Power Interface(ACPIPower Management Status and Wake-on Advanced Power Management(APM) Wake-on Low Power Disconnection DMA Coalescing Power Management |
| Timing & Synchronization | IEEE 1588 Perfect Time Protocol(PTP) Time tagging for each packet |
| Operating Temperature | 0°C-70°C |
| Rated Power | 5.6W |
| Operating Environment | Microsoft Windows NTo Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows Vista Microsoft Windows 7 Microsoft Windows Server 2008 Novell Netware 5.x 6.x Linux FreeBsD 4.x or higher version OS 8 or higher version SCO Open Server UnixWare / OpenUnix 8 Sun Solaris x86 |
Applications:
Color Optic's CO- 1002E Infiniband Pcie Card is designed to provide a reliable and high-performance PCIe bus connection for Ethernet network adapters. It has a board size of 165mm X 69mm and a PCI Express X8 Lane. It operates with a +12V ±8% PCI Express Voltage and a temperature range of -20-70°C and humidity of 5%-95%. This PCIe card is ideal for applications such as servers, storage, and data center systems that require a high-speed connection with a reliable and stable connection. It is also suitable for high-end applications that require a low-latency connection. This card is designed to provide a reliable connection for Ethernet networks and is ideal for applications that require a high-performance connection.
Customization:
- Brand Name: Color Optic
- Model Number: CO-
- Place of Origin: China
- Humidity: 5%-95%
- Bus Type: PCIe
- Dimensions: 165mm X 69mm
- Weight: 170g
- Interface Standard: PCI-Express 3.0specification(8GT/s)
- EMC Certification: Yes
- Compatible Operating System: Windows
- XLPPI interface: Yes
Support and Services:
We provide comprehensive technical support and service for our Infiniband PCIe Card. Our goal is to ensure complete customer satisfaction with our products and services.
Our technical support team is knowledgeable and experienced. We can provide guidance and help with installation, troubleshooting, and resolving any technical issues you may have.
We also offer a wide range of services such as on-site repair, system upgrades, and custom configurations. We strive to provide prompt and efficient service to ensure your Infiniband PCIe card is running at peak performance.
If you have any questions or concerns, please do not hesitate to contact us. We look forward to helping you get the most out of your Infiniband PCIe Card.
FAQ:
A1: Infiniband PCIe Card, Brand Name: Color Optic, Model Number: CO-, is a PCIe-based interconnect technology, offered by Color Optic, which provides high-bandwidth and low-latency communications for servers and storage devices in China.
A2: Infiniband PCIe Card supports both electrical and optical connections for high-performance computing, storage, networking, and communication applications.
A3: The Infiniband PCIe Card from Color Optic provides data rates of up to 100 Gbps for both electrical and optical connections.
A4: The Infiniband PCIe Card from Color Optic features low power consumption, excellent scalability, high reliability, and system flexibility.
A5: The Infiniband PCIe Card provides high-bandwidth, low-latency communication, which helps to reduce operational costs and improve system performance.
