PCIe X16 Dual Port QSFP28 Ethernet Network Adapter 100G Intel E810
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-1014PF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 8 DAYS |
| Payment Terms: | T/T, L/C, Western Union |
|
Detail Information |
|||
| Dimensions: | 165mm X 69mm | Storage Temperature: | -20-70°C |
|---|---|---|---|
| Certifications: | CE, FCC, RoHS | Weight: | 170g |
| Product Name: | Infiniband Pcie Card | Warranty: | 3 Years |
| Operating Temperature: | 0-50°C | Interface Standard: | PCI-Express 3.0specification(8GT/s) |
| Highlight: | QSFP28 Ethernet Network Adapter,PCIe X16 Ethernet Network Adapter |
||
Product Description

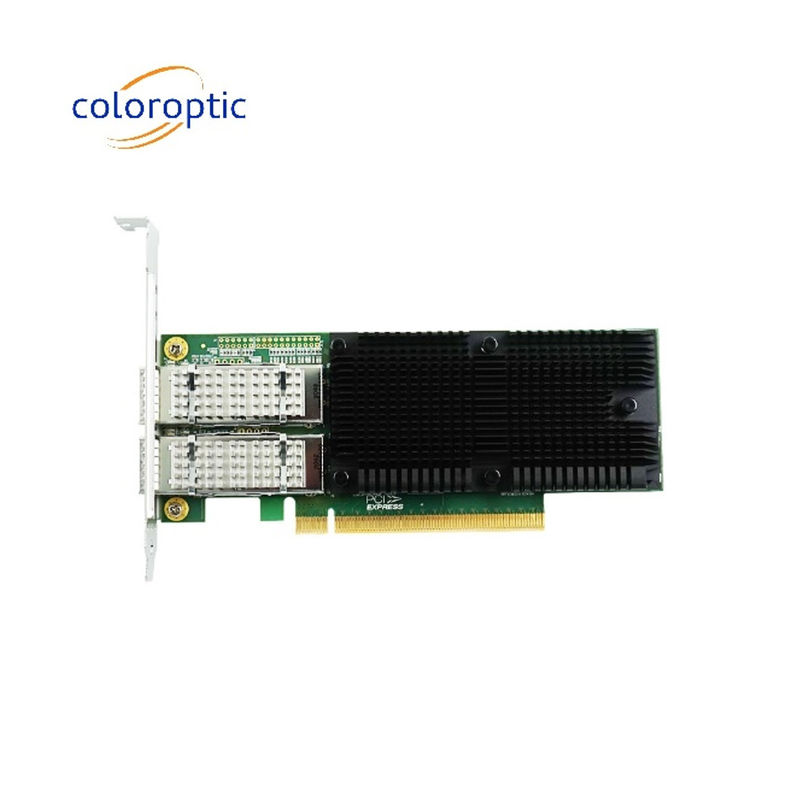

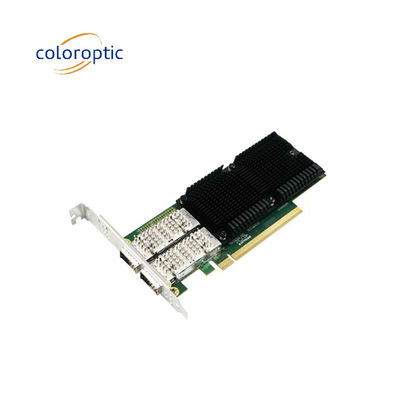

PCIe x16 Dual-port 100G QSFP28 Ethernet Network Adapter (Intel E810)
Product Description:
CO-1014PF is a PCI Express v4.0 x16 dual-port fiber 100G ethernet network adapter developed by Color Optic.limited. on the basis of the Intel master control solution. It is supplemented by the expansion function of hardware acceleration data packet processing, and the application queue technology is introduced. This technology can realize the NVMe support of Fabric TCP. It also has selective support for the iWARP and RoCEv2 functions of RDMA. This adapter can At the same time, it is backward compatible with PCIe v3.0 & v2.0. The adapter card achieves a dual-port bidirectional communication transmission rate with a theoretical throughput of 400GB on a PCI Express v4.0 x16 bus.
The ethernet fiber network card launched by Color Optic.limited., uses application queue technology to ensure that each application can apply to its own queue. That is to say, the data between each other is no longer confused, with an interface speed of up to 100Gbps, which can be widely used in data center services, cloud computing, storage and other network equipment that can handle various workloads with high throughput, and combined in actual operation The use of program queues can reduce application latency and increase throughput.
The fiber network card provides scalable ADQ technology to improve the performance scalability and predictability of critical workloads by dedicating specific resources to critical workloads. ADQ uses an optimized application thread to device data path to implement application-specific data control, information and rate limiting functions.
CO-1014PF adopts Intel's main control with extensive compatibility and performance guarantee, supports PCIe v4.0 and is backward compatible with PCIe v3.0.
.
Technical Parameters:
| Controller | Intel Chip |
| Baffle Height | Half height & full height baffle |
| Power Consumption | 15.0W |
| System Support | Windows 7/8/8.1 |
| Windows Server 2008 R2/2012 R2/2016 R2/2019 R2; | |
| Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later; | |
| CentOS/RHEL 6.x / 7.x or later; | |
| Ubuntu 14.x/15.x/16.x or later; | |
| VMware ESX/ESXi 4.x/5.x/6.x or later | |
| Bus Type | PCI Express v4.0 x16, Compatible with PCI Express v3.0 |
| Data rate supported per port | 100GbE |
| Connector | 2*QSFP28 |
Applications:
The Infiniband Pcie Card from Color Optic (Model: CO-2502E) is a high-performance card that features a PCI-Express 3.0, PCI Express X8 Lane and an XLPPI Interface. This card is designed to provide exceptional speed and robust performance. It has a 165mm X 69mm dimensions and can be operated between 0-50°C temperature range. The card is powered by +12V ±8% PCI Express Voltage and is certified according to CE, FCC, RoHS standards. It is backed by a PCIe bus type. The Infiniband Pcie card is perfectly suitable for high-speed computing and networking applications.
Support and Services:
We offer comprehensive technical support and service for our Infiniband PCIe Card products. Our support team is available 24/7 to help you with any technical issues you may have. We also offer maintenance and repair services for our products, as well as installation and setup assistance.
Our knowledgeable technicians can diagnose and solve any issue that may arise. We provide one-on-one support to answer your questions and help you identify and resolve any technical issues.
We also offer a variety of upgrades and accessories for your Infiniband PCIe Card products. Our upgrades and accessories can help you get the most out of your product and ensure that it operates at its maximum potential.
We are committed to providing our customers with the best possible support and service. If you have any questions or concerns, please do not hesitate to contact us.
FAQ:
- Q: What is the Brand Name of this Infiniband Pcie Card?
- A: The Brand Name of this Infiniband Pcie Card is Color Optic.
- Q: What is the Model Number of this Infiniband Pcie Card?
- A: The Model Number of this Infiniband Pcie Card is CO-.
- Q: What is the Place of Origin of this Infiniband Pcie Card?
- A: The Place of Origin of this Infiniband Pcie Card is China.
- Q: What kind of connection does this Infiniband Pcie Card support?
- A: This Infiniband Pcie Card supports PCIe connection.
- Q: What is the speed of this Infiniband Pcie Card?
- A: The speed of this Infiniband Pcie Card can reach up to 40Gbps.
