PCIE OCP3.0 SFF 100G Ethernet Dual Port Network Adapter Linix / Windows Compatible
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-3026PF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 30 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Operating System: | Linix/ Windows | Data Rate: | 100Gbps |
|---|---|---|---|
| PCI Express Voltage: | +12V ±8% | Storage Temperature: | -20-70°C |
| Weight: | 170g | Product Name: | OCP3.0 Pcie Card |
| Operating Temperature: | 0-50°C | Certifications: | CE, FCC, RoHS |
| Highlight: | SFF Dual Port Network Adapter,PCIE Dual Port Network Adapter,PCIE 100G Ethernet Adapter |
||
Product Description
PCIE OCP3.0 SFF Dual Port 100G Ethernet Network Adapter Linix/Windows Compatible
Product Description:

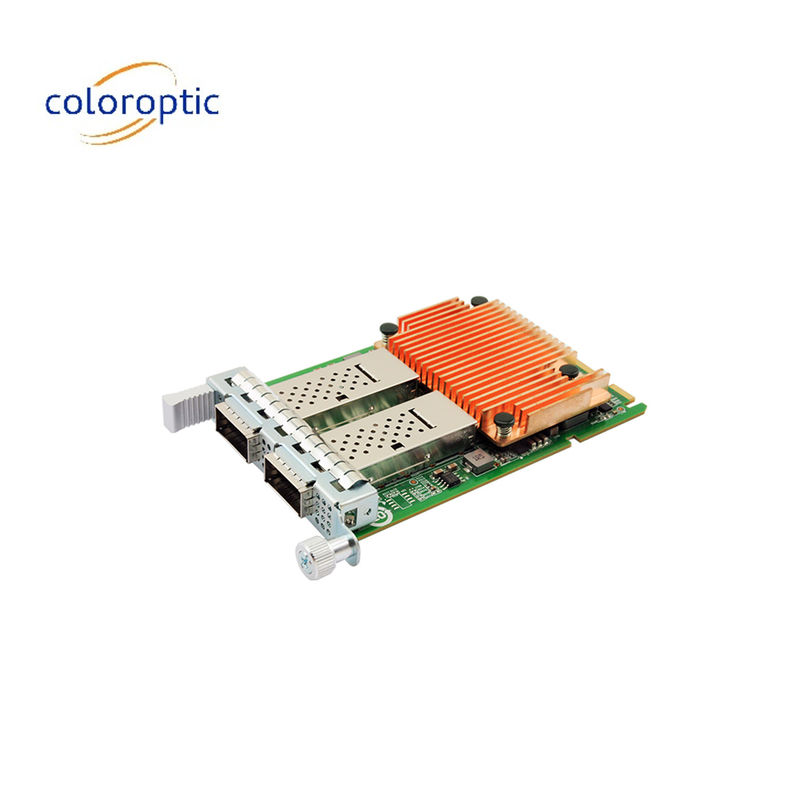

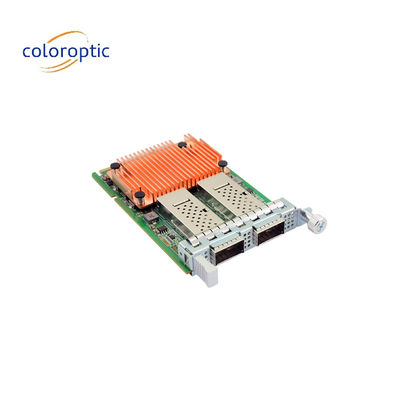

This is an OCP3.0 SFF dual port 100G Ethernet network adapter developed by Color Optic based on Intel chip. This is complemented by hardware-accelerated packet processing extensions and the introduction of application queuing technology, which enables NVMe support for Fabric TCP, as well as optional support for RDMA's iWARP and RoCEv2 capabilities.
The Ethernet optical fiber network card launched by Color Optic. The application queue technology function of the optical fiber network card ensures that each application can request its own queue, that is, the data between each other is no longer confused, with up to 100Gbps interface speed, It can be widely used in network devices such as data center service, cloud computing and storage with high throughput and can handle various workloads. In practical operation, it can reduce application delay and improve throughput by using program queue.
The fiber network card provides scalable ADQ technology to improve the performance scalability and predictability of critical workloads by dedicating specific resources to critical workloads. ADQ implements application-specific data control, information, and rate limiting using optimized application thread to device data paths.
CO-3026PF is controlled by Intel, and the multi-function port configuration technology of EPCT enables the adapter to be configured with various speeds, such as 2*100G, 1*100G, 2*50G, 4*25G, 2*2*25G, and 8*10G, to meet the requirements of various occasions.
Technical Parameters:
| Controller | Intel E810 |
| Baffle Height | SFF |
| Power Consumption | DAC, 19.2W；Fiber, 27.1W |
| System Support | Windows Server 2016 R2/2019 R2/2022 R2 |
| Linux SLES 12.x or later | |
| CentOS / RHEL 7.x or later | |
| Ubuntu 16.x or later | |
| FreeBSD 11.x/12.x or later | |
| Linux Stable Kernel version 3.10.x/4.x or later | |
| Bus Type | OCP3.0 SFF |
| Data rate | 10/25/50/100GbE |
| Connector | 2*25G SFP28 |
Technical Features
| Protocol Support |
IEEE 802.3bj 100GBASE Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3AS IEEE 802.1Q VLAN IEEE 802.1Qaz IEEE 802.1Qbb IEEE 802.1x IEEE 802.1bd IEEE1588 v1&v2 |
| PXE/UEFI | Yes |
| DPDK | Yes |
| Jumbo Frames | Yes |
| iSCSI | No |
| Jumbo Frames | Yes |
| FCoE | No |
| RDMA(iWARP,RoCE v2) | Yes |
| Network virtualization | SR-IOV, VxLAN, GENEVE, GRE |
Customization:
2. NVMe support for Fabric TCP via technology, as well as optional support for RDMA's iWARP and RoCEv2 features;
3, the application queue technology function to ensure that each application can request belongs to its own queue, with up to 100Gbps transmission speed;
4, can be widely used in high-throughput data center service, cloud computing, storage and other network equipment can handle a variety of workloads, in the actual operation combined with the use of program queue can reduce application delay and improve throughput;
5. Using EPCT's multi-function port configuration technology, the adapter can be configured for multiple rates.
Support and Services:
We provide technical support and service for Infiniband Pcie Card. Our technical support team offers 24/7 phone and email support. We also offer technical documentation, including manuals, tutorials, and FAQs. Additionally, our team can provide customized technical consultation services for your specific requirements.
Our service team is available to provide installation and on-site maintenance services. We also offer a warranty program for our Infiniband Pcie Card products. Our warranty covers any defects in materials or workmanship for a period of one year from the date of purchase.
If you have any questions or concerns about our technical support and service for our Infiniband Pcie Card products, please contact us via phone or email. We look forward to helping you get the most out of your Infiniband Pcie Card product.
FAQ:
- Q1: What is an Infiniband PCIe card?
- A1: An Infiniband PCIe card is a high-speed networking card that can connect your computer to an Infiniband fabric to maximize performance. The Color Optic Infiniband PCIe card (Model Number: CO-) is a reliable, high-performance choice for connecting your computer to an Infiniband fabric.
- Q2: Where is the Color Optic Infiniband PCIe card made?
- A2: The Color Optic Infiniband PCIe card (Model Number: CO-) is manufactured in China.
- Q3: What kind of speeds can I expect with the Color Optic Infiniband PCIe card?
- A3: The Color Optic Infiniband PCIe card (Model Number: CO-) is capable of delivering up to 56Gbps of bandwidth, enabling you to get the most out of your Infiniband fabric.
- Q4: What kind of operating systems does the Color Optic Infiniband PCIe card support?
- A4: The Color Optic Infiniband PCIe card (Model Number: CO-) supports most major operating systems, including Windows and Linux.
- Q5: How easy is the Color Optic Infiniband PCIe card to install?
- A5: The Color Optic Infiniband PCIe card (Model Number: CO-) is easy to install and set up. All you need to do is plug in the card and connect it to your Infiniband fabric. If you need help, our friendly customer service team is available to assist you.
