40 Gigabit Infiniband Pcie Card Dual Port Optical NIC Pci Express Network Adapter
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Cartons |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Operating System: | Linux, Windows | Interface Standard: | PCI-Express 3.0 |
|---|---|---|---|
| Voltage: | 12V | Connector: | QSFP+ |
| Highlight: | 40 Gigabit Infiniband Pcie Card,Dual Port Infiniband Pcie Card,NIC Pci Express Network Adapter |
||
Product Description

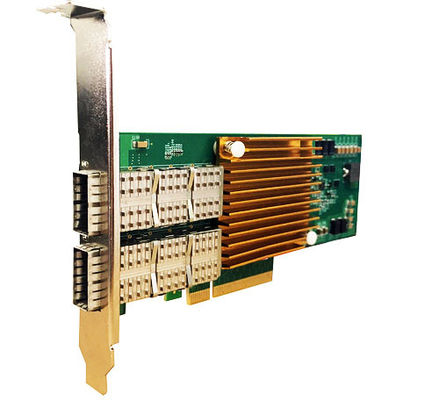

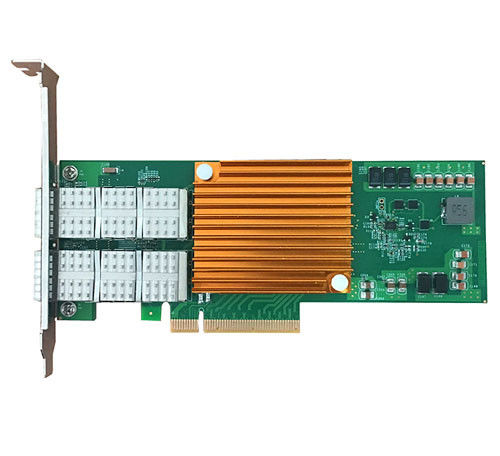

40Gigabit Dual Port Optical NIC Pci Express Network Adapter Infiniband Cards
This is a PCI Express X8 dual-port 40GQSFP + Ethernet network adapter developed independently by Coloroptic based on the Intel XL710-BM2 master scheme. At the same time it can be compatible with PCIe X8, PCIe x16 channels.
The company's products have passed FCC, CE, ROHS and other international authoritative certification and national industry certification. In the road ahead, Coloroptic is committed to building China's own national enterprises, achieve the goal of "Optics links the world, connects us together"
| 40Gigabit QSFP+Ethernet Network Adapter | |
| QSFP+ (Quad Small Form factor Pluggable) support |
XLPPI interface supports 40GBase-R PCS and 40Gigabit PMA in order to connect with the QSFP+ 40Gbase-SR4/40Gbase-LR4/4G Direct Attach Cable |
| IEEE Standard/Network Topology: | 40Gigabit Fiber Optic Ethernet, 40Gbase-SR4(850nm LAN PHY) |
| 40Gigabit Fiber Optic Ethernet, 40Gbase-LR4(1310nm LAN PHY) | |
| Operating System Support | |
| Operating System | Windows |
| Linux | |
| General Technical Specifications | |
| Interface Standard |
PCI-Express 3.0specification(8GT/s) |
| Board Size | 165mm X 69mm(6.496" X 2.717") |
| PCB board thickness: 0.062" | |
| PCI Express Voltage | +12V ±8% |
| Bus type | PCI Express X8 Lane |
| Controller | Intel FTXL710-BM2 |
| Bracket | Metal |
| Weight | 170g (5.997 oz) |
| Power Consumption | 2.880 W |
| Storage Humidity | 0%–90%, non-condensing |
| Operating Temperature | 0°C – 45°C (32°F – 113°F) |
| Storage | -40°C–65°C (-40°F–149°F) |
| EMC Certification | FCC PART 15B |
| EN 55022: 2010 | |
| EN 55024: 2010 | |
| EN 61000-3-2:2014 | |
| EN 61000-3-3:2013 | |
| LEDs | |
| LED: | Green light=10Gb linked |
| Yellow light =40Gb linked: Yellow Light | |
| Blu=Activity | |
| Connector | QSFP+ cap: MOLEX, P/N 75586-0010 or compatible |
