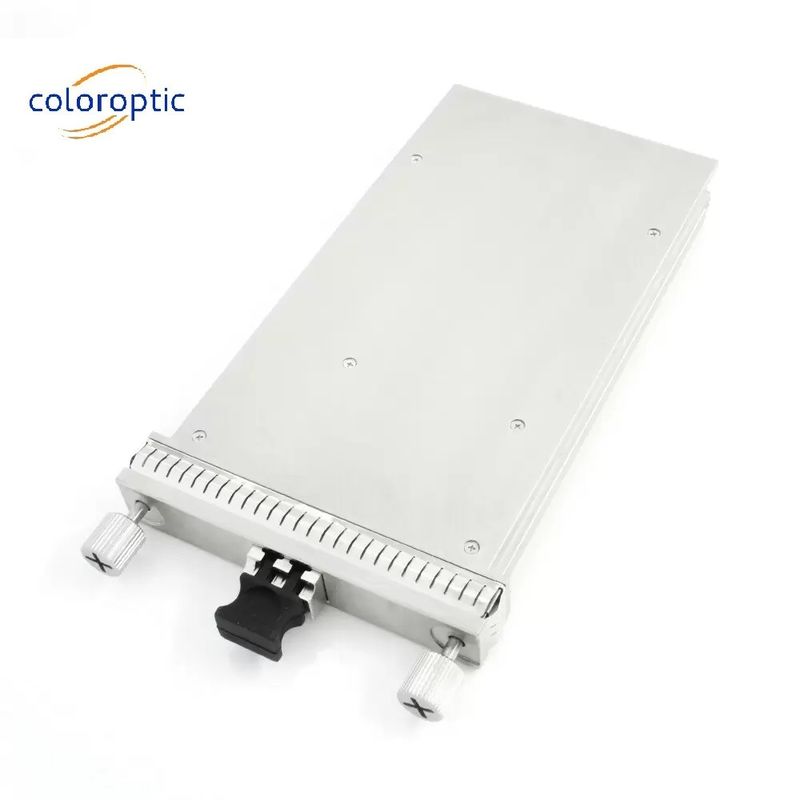

100G / 200G CFP DCO Coherent Optical Module Transceiver For Long Haul Transmission
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-C12HDCZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 7 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Form Factor: | CFP | Data Rate: | 200Gbps |
|---|---|---|---|
| Application: | DWDM Transmission | Product Name: | Coherent Optical Module |
| Storage Temperature: | -40℃~+85℃ | Connector Type: | LC |
| Transmission Distance: | 120km | Modulator: | 8/16-QAM; QPSK |
| Highlight: | CFP Coherent Optical Module,200G Coherent Optical Module,100G Coherent Optical Transceiver |
||
Product Description
100G/200G Coherent 200G CFP DCO Transceivers For Long Houl Transmission
Product Description:
Color Optic Coherent Optical Module is 100G/200G Coherent CFP DCO MSA is a pluggable, digitally coherent C-type optical transceiver designed for high-speed optical networking applications. Since the DSP (Digital Signal Processor) is placed on the transponder line card of the 100G/200G Coherent CFP/CFP2 DCO MSA optical module, it helps to revolutionize the IP routing edge, enabling IP to be transported over DWDM networks - IPoDWDM.
Features:
- Product Name: Coherent Optical Module
- Form factor: CFP
- Data Rate: 200Gbps
- Storage Temperature: -40℃~+85℃
- Application: DWDM Transmission
- Modulator: 8/16-QAM; QPSK
- Line Mode: Suitable for data centers
Technical Parameters:
| Part No. | CO-C12HDCZ | Form Factor | CFP |
| Data Rate | 200G | Distance | 80-1000KM |
| Wavelength | Coherent | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | Tunable Coherent Laser | Receiver Type | PIN |
| TX Power | .-10.0~+5.0dBm | Receiver Sensitivity | < -24.0dBm |
| Protocols | CFP MSA Compliant | Warranty | 3 years |
Applications:
The Color Optic CO-C12HDCZ is a revolutionary Coherent Optical Module providing high-speed DWDM transmission for 100Gbps data rate. This module features an LC connector and an optical power range of 0~+5dBm. It is a DWDM pluggable module designed for use in DWDM systems. It features an 8/16-QAM modulator and QPSK modulator for superior digital transmission performance. This Coherent Optical Module is designed for use in high-speed long-distance DWDM transmission systems. It is ideal for use in COHERENT QSFP-DD and DIGITAL CFP-DCO solutions that require high-performance and reliable transmission. It is also fully compatible with other OPTICAL TRANSCEIVER solutions. With its high-speed and reliable performance, the Color Optic CO-C12HDCZ is the perfect solution for any DWDM transmission system.
Packing and Shipping:
For the packaging and shipping of Coherent Optical Module, we take extra caution and provide rigid protection to prevent any damage in transit.
The product is securely placed in a custom designed packaging box and surrounded by cushioning material such as foam or bubble wrap. The box is then sealed with adhesive tape. The length, width and height of the package are clearly indicated on the box.
We use certified and reliable courier services to ship the product safely. We also make sure the product is tracked and monitored throughout the journey.
FAQ:
A1: The Brand Name of this Coherent Optical Module is Color Optic.
A2: The Model Number of this Coherent Optical Module is CO-C12HDCZ.
A3: This Coherent Optical Module is produced in China.
A4: This Coherent Optical Module is mainly used for data transmission in optical fiber communication systems.
A5: The working wavelength range of this Coherent Optical Module is 1310 nm and 1550 nm.
