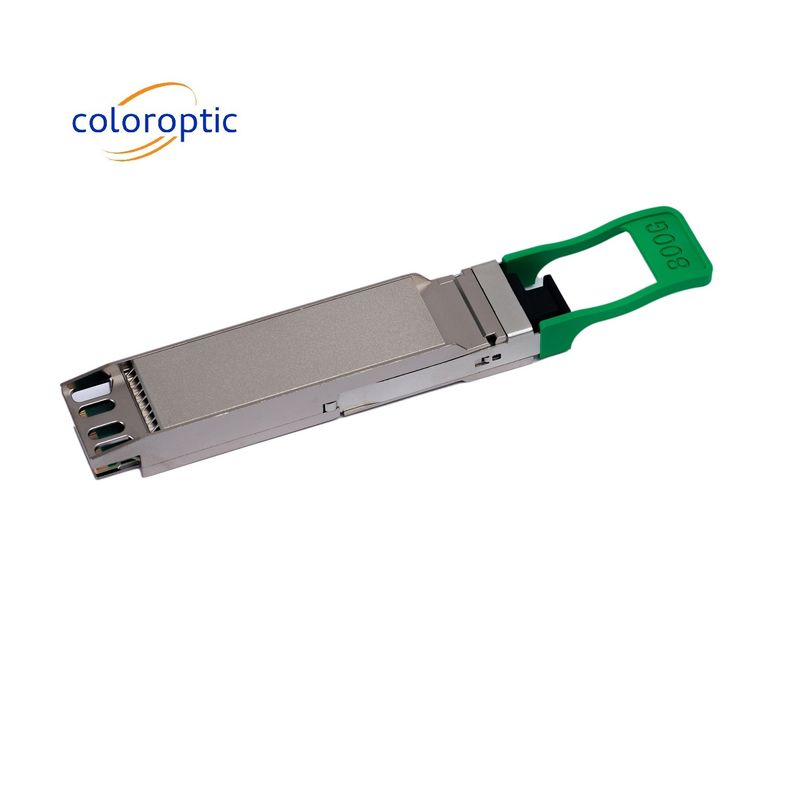

400G OSFP ZR+ Coherent Optical Module DCO Transceivers For DWDM Transmission
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-OS4HDCOZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 100 pieces/month |
|
Detail Information |
|||
| Connector Type: | LC | Data Rate: | 400Gbps |
|---|---|---|---|
| Form Factor: | OSFP | Product Name: | Coherent Optical Module |
| Modulator: | 8/16-QAM; QPSK | Warranty: | 3 Years |
| Application: | DWDM Transmission | Operating Temperature: | 0℃~+70℃ |
| Highlight: | ZR+ Coherent Optical Module,DWDM Transmission Coherent Optical Module,400G OSFP Transceiver |
||
Product Description
400G OSFP ZR+ Coherent DCO Transceivers for DWDM Transmission
Product Description:
ColorOptic coherent OSFP products are based on different modulation techniques that use two polarizations of light to encode data. They can work with a wide range of wavelengths in the C-band and have advanced features for detecting and correcting signal distortions. They come in a standard OSFP shape that can plug into different devices and use a 7nm DSP chip. They can support data rates of 100 or 400 Gbps and are suitable for various network applications, such as metro, access and Cloud/DCI.
Features:
- Product Name: Coherent Optical Module
- Application: DWDM Transmission
- Data Rate: 400Gbps
- Warranty: 3 Years
- Modulator: 8/16-QAM; QPSK
- Connector Type: LC
- WDM Digital: Yes
- Line Mode: Yes
Technical Parameters:
| Part No. | CO-OS4HDCOZ | Form Factor | OSFP |
| Data Rate | 400G | Distance | 480KM |
| Wavelength | Coherent | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | Tunable Coherent Laser | Receiver Type | PIN |
| TX Power | .-10~-6.0dBm | Receiver Sensitivity | < -20dBm |
| Protocols | OSFP MSA | Warranty | 3 years |
Applications:
Color Optic's Coherent Optical Module, model number CO-OS4HDCOZ, is a high-performance product designed for WDM digital transmission. It features a maximum transmission distance of 10km and a temperature range of -40℃ to +85℃. It is ideal for Line Mode and offers OSNR and PMD monitoring capabilities. The product is backed by a 3-year warranty for the assurance of quality and reliable performance.
The Coherent Optical Module is suitable for a wide range of applications, including telecoms, broadcasting, and data communications. It is an ideal choice for long-distance data centers and high-speed inter-city networks. This module supports 8/16-QAM and QPSK modulation, allowing for high-speed data transmission over a long distance. It is also designed with advanced OSNR and PMD monitoring capabilities, providing an extra level of reliability for critical applications.
Color Optic's Coherent Optical Module is a reliable and cost-effective solution for WDM digital transmission. With its high-performance design, long-distance transmission capabilities, and temperature range, it is an ideal choice for telecoms, broadcasting, and data communications applications. It is also backed by a 3-year warranty for added assurance of quality and performance.
Packing and Shipping:
Packaging and Shipping for Coherent Optical Module:
- Packaging: The coherent optical module should be packed in a static-free bag, and securely placed in a cardboard box for shipping.
- Shipping: The packaged module should be shipped with proper care, and with a shipping method that offers tracking and insurance.
FAQ:
A1: Coherent Optical Module (Color Optic CO-OS4HDCOZ) is a high-performance optical transceiver module for optical communication systems and provides a cost-effective solution for optical fiber communications.
