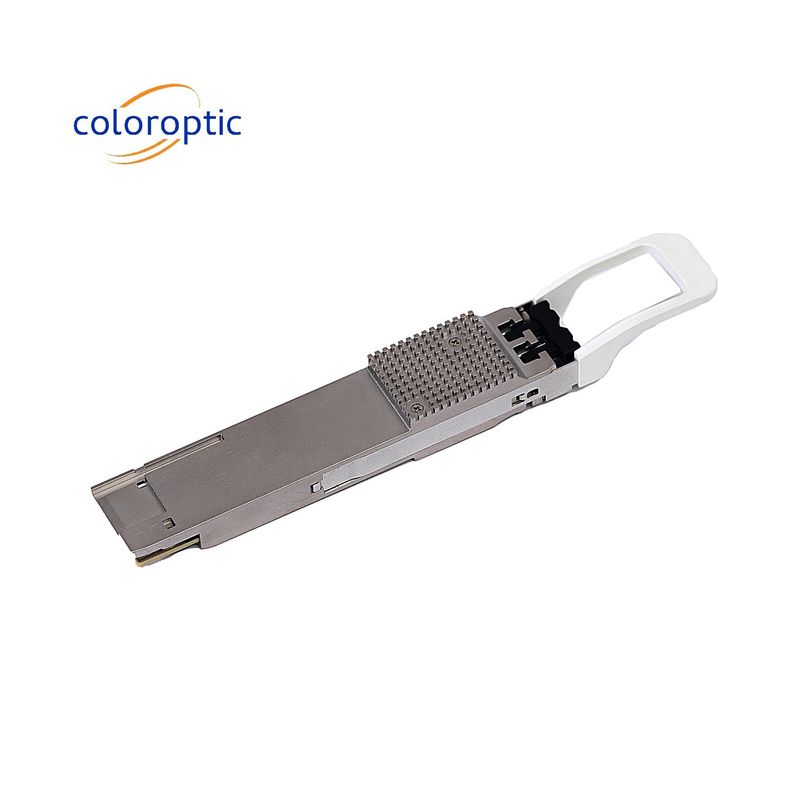

High Power Coherent Optical Module 400G QSFP-DD Open ZR+ For Ethernet Variant
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD4HDCOZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 8 DAYS |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 100 pieces/month |
|
Detail Information |
|||
| Product Name: | Coherent Optical Module | Connector Type: | LC |
|---|---|---|---|
| Optical Power: | 0~+5dBm | Application: | DWDM Transmission |
| Storage Temperature: | -40℃~+85℃ | Transmission Distance: | 480km |
| Warranty: | 3 Years | Operating Temperature: | 0℃~+70℃ |
| Highlight: | High Power Coherent Optical Module,Coherent Optical Module ZR+,400G QSFP-DD |
||
Product Description
Coherent Optical Module 400G QSFP-DD Open ZR+ High-Power For Ethernet Variant
Product Description:
Color Optic is now expanding the range of 400G Digital Coherent QSFP-DD transceivers, introducing High Tx Power variants (+1dBm of Tx Power). Thanks to the miniaturization of the technology with a 7-nm manufacturing procedure and innovation in silicon photonic technology, it is now possible to also squeeze an Optical Amplifier (Mini-EDFA) within a QSFP-DD form factor.
Color Optic 400G QSFP-DD High-Power (Bright) Optical module’s small size and low power make it an optimal choice for a wide range of DCI/Cloud, metro access/aggregation, wireless backhaul, and campus interconnect applications.
Cisco 400G QSFP-DD High-Power (Bright) Optical module is mechanically compliant to the QSFP-DD Type 2A Module Specification. The QSFP-DD module contains a PCB with a 76-contact card-edge electrical interface to external host-side logic. The media interface is a duplex LC connector coupled to a 1550-nm optical fiber carrying the DP-mQAM coherent signal. The signaling operates in the C-band.
Features:
- Full C-band 75GHz ITU-T transmitter
- Built in client and line OTN processing
- Low latency E-FEC Data rate up to 400Gbps DP-16QAM
- Compliant with QSFP-DD MSA and 400GE
- Transmission distance up to 480km
- Integrated with EDFA Duplex LC receptacles
- Hot-pluggable electrical interface
- Commercial operating case temperature range: 0℃ to 70℃
- 3.3V power supply voltage
Technical Parameters:
| Part No. | CO-QD4HDCOZ | Form Factor | QSFP-DD |
| Data Rate | 400G | Distance | 480KM |
| Wavelength | Coherent | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Duplex LC | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | Tunable Coherent Laser | Receiver Type | PIN |
| TX Power | .-6.0~-0dBm | Receiver Sensitivity | < -12.0dBm |
| Protocols | QSFP-DD MSA | Warranty | 3 years |
Applications:
Color Optic's CO-QD4HDCOZ Coherent Optical Module is a high performance optical transceiver designed to provide a dependable optical connection over a 10km distance. This optical module features a 0~+5dBm optical power and an excellent OSNR performance, allowing it to deliver fast, reliable, and cost-effective transmission across long distances. It is also designed with a robust storage temperature range of -40℃~+85℃, meaning it is highly reliable and suitable for use in a wide variety of applications. Furthermore, Color Optic provides a 3-year warranty and superior customer service, offering reassurance to its customers that their investment will be a safe one. With its excellent performance, robust storage temperature range, and long-term warranty, the CO-OS8H Coherent Optical Module is the ideal choice for anyone looking for a reliable, high-quality COHERENT QSFP-DD OPTICAL MODULE.
Packing and Shipping:
Coherent Optical Module Packaging and Shipping:
- The optical module should be placed in an anti-static bag and sealed in the original box.
- The box should be securely sealed and labeled with the product's name.
- The box should be placed in another box with shock-absorbing materials to protect the product.
- The outer box should be labeled with “Fragile” and “Handle with Care”.
- The package should be shipped using a reliable shipping method.
