QSFP112-DD DOM MPO SMF Optical Transceiver Module 1310nm For 400G Ethernet
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS |
| Model Number: | CO-QD4H13D4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 3 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Wavelength (nm): | 1310nm | DDM/DOM Support: | Yes |
|---|---|---|---|
| Warranty: | 3 Years | Application: | 400G Ethernet, Data Center Interconnect |
| Form Factor: | QSFP112-DD | Label: | Can Be Customized |
| Technology: | Parallel Optics | Temperature Range: | 0°C To 70°C |
| Highlight: | MPO Optical Transceiver Module,QSFP112-DD Optical Transceiver Module |
||
Product Description

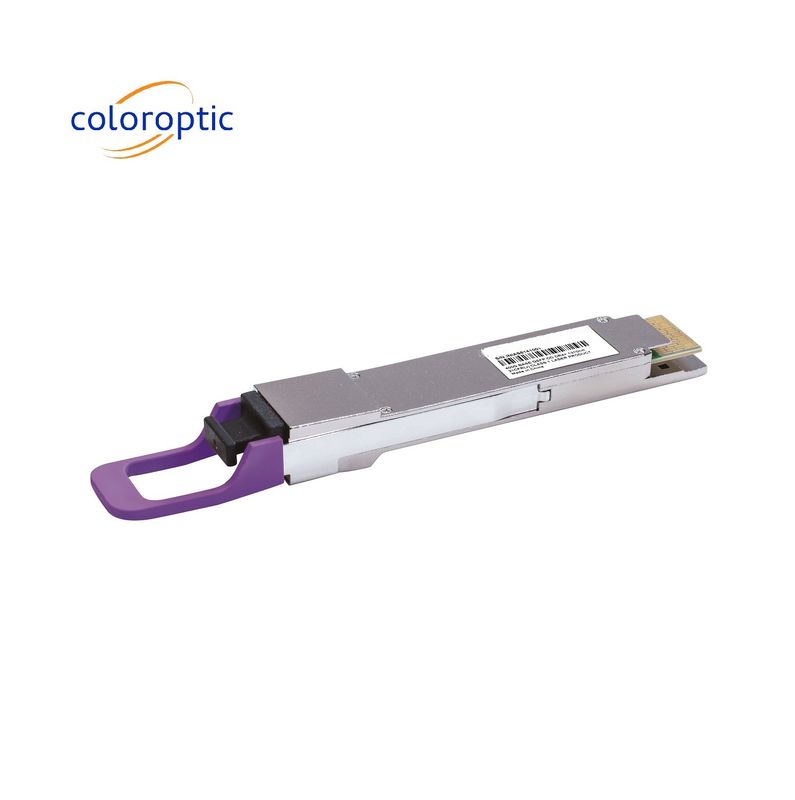

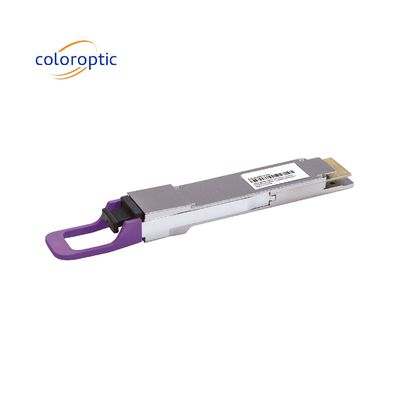

Arista QDD-400G-DR4 Compatible 400GBase-DR4 QSFP112-DD 1310nm 500m DOM MPO SMF Optical Transceiver Module
Product Description:
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP112-DD) optical module designed for 500m optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data.

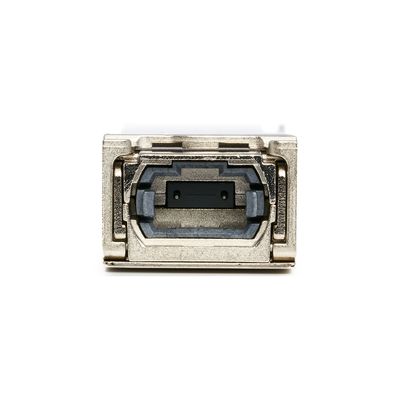

An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP112-DD DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP112-DD MSA-compliant edge type connector.
The product is designed with form factor, optical/electrical connection, and digital diagnostic interface according to the QSFP112-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity, and EMI interference. .
Features:
- QSFP112 MSA compliant
- Parallel 4 Optical Lanes
- IEEE 802.3bs 400GBASE-DR4
- Specification compliant
- Up to 500m transmission on single
- mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 4x106.25Gb/s electrical interface(400GAUI-4)
- Data Rate 106.25Gbps (PAM4) per channel
- Maximum power consumption 10W
- MPO-12 connector
- RoHS compliant
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 2 | 500 | m | ||
| Power Consumption | 10 | W | ||||
| Center Wavelength | λC | 1304.5 | 1310 | 1317.5 | nm | |
| Average Launch Power, each Lane |
PAVG | -2.9 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter), each Lane |
POMA | -0.8 | 4.2 | dBm | ||
| Average Receive Power, each Lane |
-5.9 | 4 | dBm | |||
| Receiver Sensitivity (OMAouter), each Lane |
SEN | max(-3.9,SECQ-5.3) | dBm |
Applications:
The ColorOptic CO-QD4H13D4C QSFP112-DD Module is a high-performance and reliable solution designed for 400G Ethernet networks.
- Data Center Interconnect
- 400G Ethernet
- Infiniband interconnects
- Enterprise networking
