Cisco QDD-400G-FR4 1310nm 400G QSFP DD Transceiver DOM Duplex LC SMF Optical Module
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD4H13F4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2000 pieces/month |
|
Detail Information |
|||
| Form Factor: | QSFP-DD | Wavelength (nm): | 1310nm |
|---|---|---|---|
| Data Rate: | 400G | Warranty: | 3 Years |
| Label: | Can Be Customized | Technology: | Parallel Optics |
| Distance: | 2Km | Type Of Media: | SMF |
| Highlight: | QDD-400G-FR4,1310nm 400G QSFP DD Transceiver,400G QSFP DD Transceiver DOM |
||
Product Description

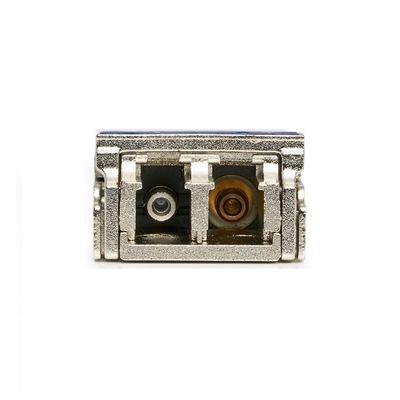

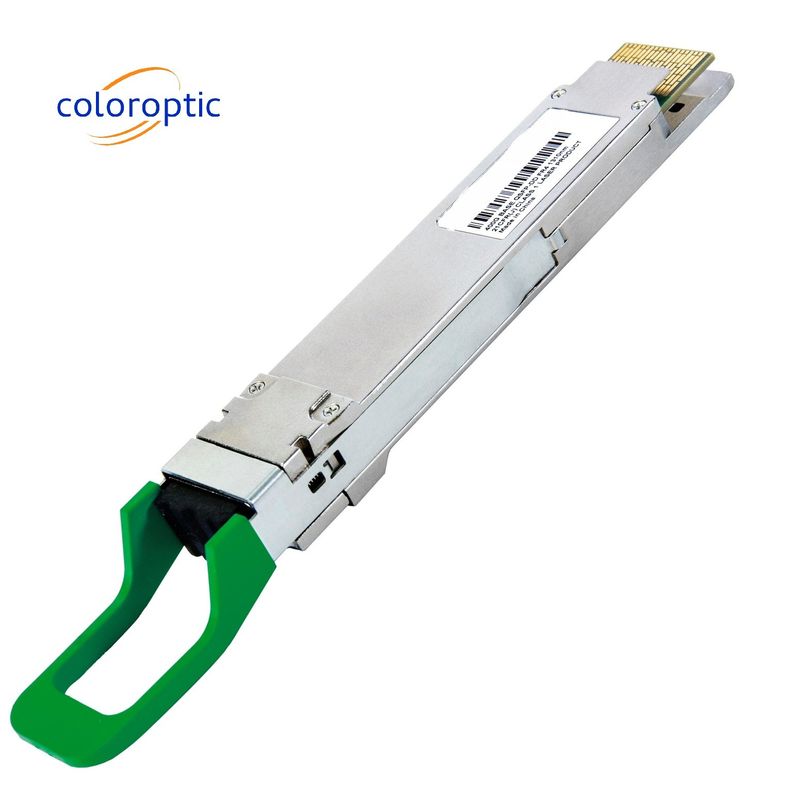

Cisco QDD-400G-FR4 Compatible 400GBase-FR4 QSFP112-DD 1310nm 2km DOM Duplex LC SMF Optical Transceiver Module
Product Description:
The CO-QD4H13F4C is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP112-DD) optical module designed for 2km optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of CWDM optical signals and multiplexes them into a single channel for 400Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 400Gb/s optical input into 4 channels of CWDM optical signals, and converts them to 4 channels of 100Gb/s (PAM4) electrical output data.
The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. The CO-QD4H13F4C contains a duplex LC connector for the optical interface and a 76-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Features:
- QSFP112 MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- IEEE802.3cu 400G-FR4 Specification compliant
- Up to 2km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- 4x106.25Gb/s electrical interface (400GAUI-4)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 10W
- Duplex LC connector
- RoHS compliant
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.002 | 2 | km | ||
| Power Consumption | 10 | W | ||||
| Center Wavelength | L0 | 1264.5 | 1271 | 1277.5 | nm | |
| L1 | 1284.5 | 1291 | 1297.7 | nm | ||
| L2 | 1304.5 | 1311 | 1317.5 | nm | ||
| L3 | 1324.5 | 1331 | 1337.5 | nm | ||
| Average Launch Power,each Lane | PAVG | -3.2 | 4.4 | dBm | ||
| OMA, each Lane | POMA | -0.2 | 3.7 | dBm | ||
| Average Receive Power,each Lane | -7.2 | 4.4 | dBm | |||
| Receive Power(OMA),each Lane | 3.7 | |||||
| Receiver Sensitivity(OMA) | SEN | max(-4.6,SECQ-6.0) | dBm |
Applications:
- Data Center Interconnect
- 400G Ethernet
- Infiniband interconnects
- Enterprise networking
