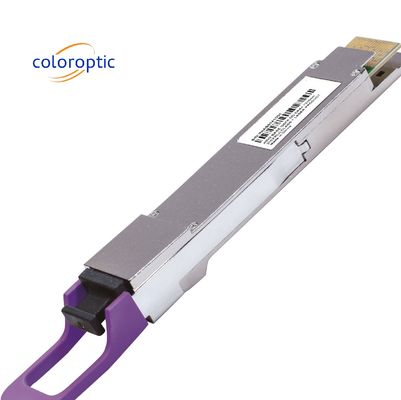

Arista QDD-400G-DR4 QSFP56-DD DOM MPO Optical Transceiver Module 1310nm 500m

Product Description

Arista QDD-400G-DR4 Compatible 400GBase-DR4 QSFP56-DD 1310nm 500m DOM MPO SMF Optical Transceiver Module

_{Product Description:}

_{Coloroptic's CO-QD4H13DC is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP56-DD) optical module designed for 500m optical communication applications. The module converts 8 channels of 50Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 8 channels of 50Gb/s (PAM4) electrical output data.}

_{An optical fiber cable with an MTP/MPO-12 connector can be plugged into the QSFP56-DD DR4 module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through an QSFP56-DD MSA-compliant edge type connector.}

_{It provides excellent performance and reliability, making it the perfect choice for large-scale and mission-critical networks. The QSFP DD Module is designed for use in data centers, high-speed networks, and other high-performance applications.}

_Features:

• _{QSFP56-DD MSA compliant}
• _{Parallel 4 Optical Lanes}
• _{IEEE802.3bs Specification compliant}
• _{Up to 500m transmission on single mode fiber (SMF) with FEC}
• _{8x53.125Gb/s electrical interface (400GAUI-8)}
• _{Data Rate 106.25Gbps (PAM4) per channel.}
• _{Maximum power consumption 12W}
• _{MPO-12 connector • RoHS compliant}
• _{Operating Case Temperature:}
• _{Standard: 0°C to +70 °C o}
• _{Extended -5°C to +85 °C}

_{Technical Parameters:}

_{Applications:}

_{• 400G Ethernet}

_{• Infiniband interconnects}

_{• Datacenter Enterprise networking}

_{Customization:}

_{400G QSFP DD Transceiver: ColorOptic CO-QD4H13DC QSFP-DD Transceiver Module, with 500m distance and 1310nm wavelength, is designed with Parallel Optics and Wavelength Division Optics technology. The label can be customized according to customer’s requirements.}
