Cisco QSFP28 SFP Optical Module O-Band DWDM 100G Ethernet SM 40KM 18.5dB LC DWDM
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | ROHS |
| Model Number: | CO-Q813DEC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 8 DAYS |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 5000 pieces/month |
|
Detail Information |
|||
| Wavelength: | O-BAND DWDM | Application: | Ethernet Network |
|---|---|---|---|
| Receiver Type: | APD | Form Factor: | QSFP28 |
| Data Rate: | 100G | Temperature Range: | 0~75℃ |
| Fiber Type: | Singlemode | DDM: | Yes |
| Highlight: | QSFP28 SFP Optical Module,SFP Optical Module 40KM |
||
Product Description
Cisco QSFP28 O-Band DWDM 100G Ethernet SM 40KM 18.5dB LC DWDM SONET OC-192&SDH STM-64
Product Description:

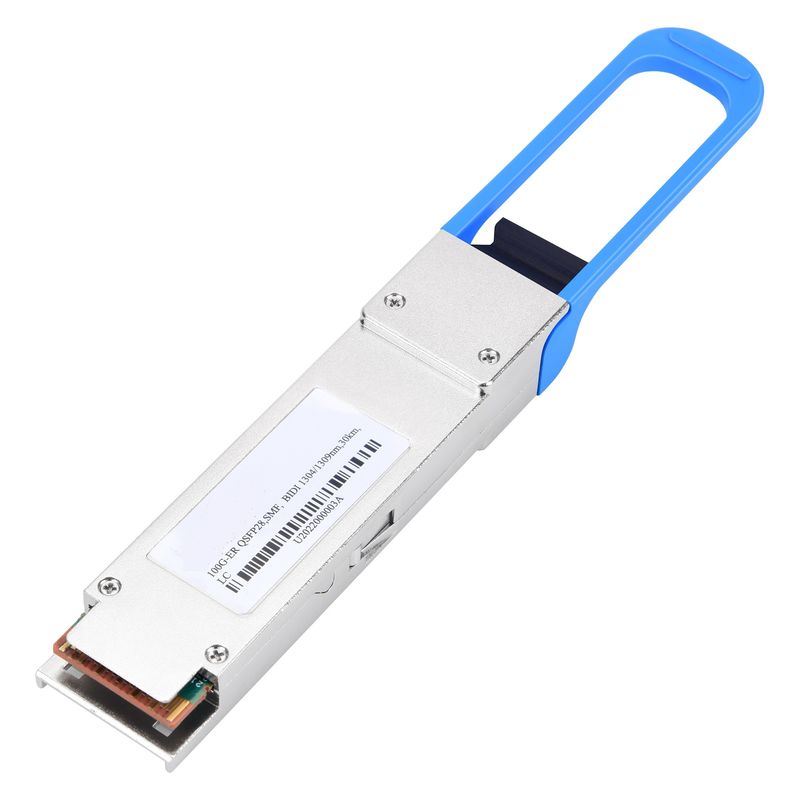

CO-Q813DEC is a QSFP28 form-factor O-Band DWDM transceiver for 100 Gbps Ethernet applications. It is intended for use in intra- and interconnect applications within and between data centers between switches, routers, storage equipment etc.
The transceiver is provided in 8 channel versions with 200GHz spacing. The optical performance enables distances of up to 40km over a SingleMode (SM) G.652 fiber-pair cable.
The module includes FEC coding Forward Error Correction (P-FEC) to ensure reliable system operation. The host system shall thus not have FEC activated. The optical parameters will provide a corrected bit error ratio (BER) after FEC to be better than 1 x 10-12.
The TQ2030-OXXC-SO transceivers uses a single lane carrier @ 50Gbaud with PAM4 modulation to transport the Ethernet signal.
The electrical interface is 4x 25.78Gbps and compliant with OIF CEI-28G-VSR. Digital diagnostics functions (DDM) are available via an I2C interface, as specified by the QSFP28 MSA.
The transceivers provide digital diagnostic functions via a 2-wire serial interface as defined by the SFF-8472 specification.
Specification

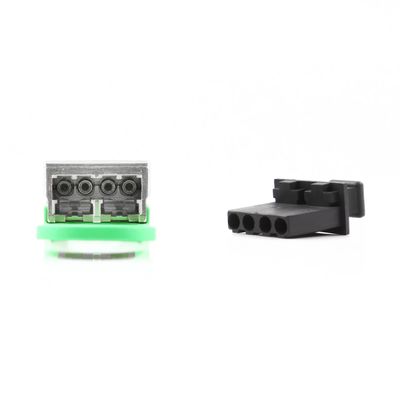

- QSFP28 transceiver with LC connectors
- 8 single-lambda, PAM4 modulated O-Band DWDM channel versions @ 200GHz grid; 228.4 - 229.8 THz
- Up to 40km distance w/o optical amplifiers
- 18.5dB power budget
- Less than 6.0W power consumption
- C-temp operating conditions (0°C to +70°C)
Packing and Shipping:
The SFP Optical Module is packaged in a sturdy and compact box to ensure safe transportation and storage. The box is made of high-quality materials to protect the module from any external damage.
Inside the box, the SFP Optical Module is placed in an anti-static bag to prevent any electrostatic discharge during handling and shipping. The bag is sealed to maintain the module's cleanliness and protect it from dust and moisture.
Additional padding and cushioning materials are added to the box to provide extra protection for the SFP Optical Module during transportation.
The SFP Optical Module is shipped using reliable and fast delivery services to ensure timely and secure delivery to our customers.
The modules are carefully packed and labeled with the necessary information, including the product name, serial number, and destination address.
For international shipping, all necessary customs documentation and declarations are prepared to comply with the regulations of the destination country.
We take great care in packaging and shipping our SFP Optical Modules to ensure that they reach our customers in perfect condition and ready for use.
