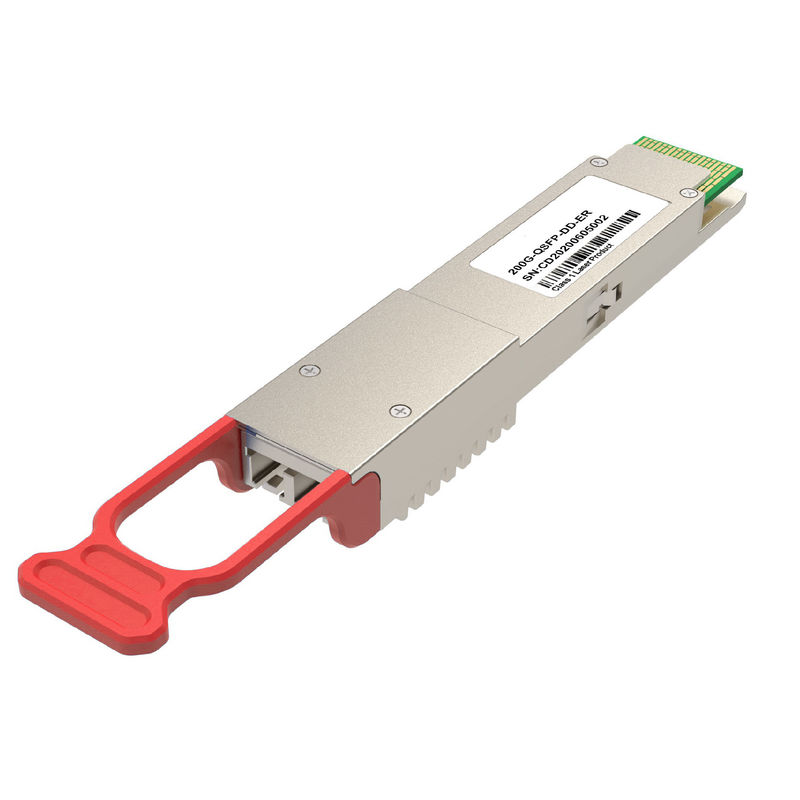

200G QSFP DD Module 2X100G CWDM4 2km Duplex CS SMF Transceiver
Product Details:
| Place of Origin: | China |
| Brand Name: | Coloroptic |
| Certification: | CE, UL, FDA, RoHs, FC, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 per month |
|
Detail Information |
|||
| Data Rate: | 200G | Wavelength: | CWDM |
|---|---|---|---|
| Connector: | Duplex CS | Distance: | 2km |
| Highlight: | 200G QSFP DD Module,QSFP DD Module CWDM4,Duplex CS SMF Transceiver |
||
Product Description
200G QSFP-DD 2X100G CWDM4 2km CS SMF Transceivers
This is 2x100G QSFP-DD CWDM4 optical transceiver transmits data over single mode fibre at a distance of up to 2km. The transceiver operates on 2x 4CWDM wavelengths and works in point-to-point scenario. 2x100G QSFP-DD CWDM4 transceivers have 8 optical lanes that operate at 25Gbps NRZ modulation. They are compliant with QSFP-DD MSA and with the Common Management Interface Specification (CMIS).
Key Features
Hot-pluggable QSFP-DD form factor 8 x CWDM – Uncooled DFB Laser (1271/1291/1311/1331nm) PIN Photo Detector 0°C to +70°C case operating temperature range 2km transmission with SMF 3.3V power supply Contain Clock Data Recovery (CDR) - Clock and Data Recovery Power consumption < 7W Compliant with QSFP-DD MSA Type 2 Compliant with IEEE 802.3bm/100G-CWDM4 MSA Specification Digital diagnostic functions (Via I2C) Compliant with RoHS Compliant with UL & TUV Dual CS connector module receptacle
Application
2x100G QSFP-DD CWDM4 applications with FEC
Product Details
| Part No. | QDD-2002C31-02CC | Form Factor | QSFP-DD |
| Data Rate | 2X100GbE | Distance | 2KM |
| Wavelength | 2x CWDM4 | Operation Temperature | 0 to 70°C (32 to 158°F) |
| Connector | Dual CS | Voltage | 3.3V |
| Cable Type | SMF | DDM | Yes |
| Transmitter Type | 8 x CWDM | Receiver Type | PIN |
| TX Power | -6.5~+2.5dBm | Receiver Sensitivity | < -11.5dBm |
| Protocols | QSFP-DD MSA | Warranty | 3 years |
