200G Ethernet Transceiver QSFP DD Module For ER4 40km SMF 12W Power Consumption
Product Details:
| Place of Origin: | China |
| Brand Name: | coloroptic |
| Certification: | UL, TUV, CE, RoHS, REACH, CMRT |
| Model Number: | C-QD2H13EC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plates with Carton |
| Delivery Time: | 7~15 days |
| Payment Terms: | TT, LC, Western Union |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Data Rate: | 200G | Wavelength: | 1310 |
|---|---|---|---|
| Distance: | 40 Km | Connector: | Duplex LC |
| Form Factor: | QSFP-DD | Temperature: | 0~70°C |
| DDM: | Yes | Warranty: | 3 Years |
| Label: | Can Be Customized | Protocols:: | MSA |
| Modulation Format: | PAM4 | Application: | Data Center Interconnect |
| Highlight: | ER4 QSFP DD Module,SMF QSFP DD Module,200G Ethernet Transceiver Module |
||
Product Description
QSFP-DD 200G Ethernet Transceiver Module For ER4 40km SMF With FEC,12W Power Consumption
This product is a 200Gb/s transceiver module designed for 40km optical communication applications. The design is compliant to IEEE802.3bs 200GBASE-ER4 standard. The module converts 8 input channels(ch) of 25Gb/s electrical data to 4 channels of LWDM optical signals, and multiplexes them into a single channel for 200Gb/s (PAM4) optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 200Gb/s(PAM4) input into 4 LWDM channels of signals, and converts them to 8 channels output electrical data.
Key Features
- QSFP-DD MSA compliant
- 4 CWDM lanes MUX/DEMUX design
- Up to 40km transmission on single mode fiber (SMF) with FEC
- Operating case temperature: 0 to 70℃
- Maximum power consumption 12W

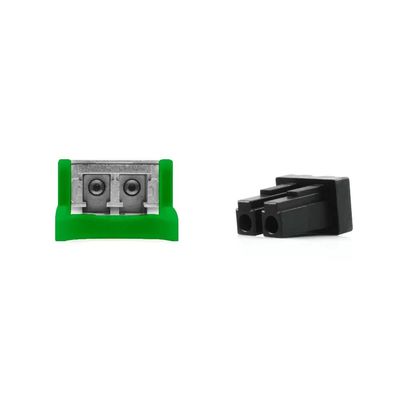

- Duplex LC connector
- RoHS compliant
Application
- 5G Network
- 200G Ethernet
- Enterprise networking
Product Details
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance | D | 0.002 | 30 | km | FEC required on host system to support maximum distance | |
| Link Distance | D | 0.002 | 40 | km | Built-in PFEC is required to support up to 40km | |
| Power Consumption | 12 | W | ||||
| Center Wavelength | L0 | 1294.53 | 1295.56 | 1296.59 | nm | |
| L1 | 1299.02 | 1300.05 | 1301.09 | nm | ||
| L2 | 1303.54 | 1304.58 | 1305.63 | nm | ||
| L3 | 1308.09 | 1309.14 | 1310.19 | nm | ||
| Average Launch Power,each Lane | PAVG | -0.1 | 5.6 | dBm | ||
| OMA, each Lane | POMA | 3.4 | 6.4 | dBm | ||
| Sensitivity, each lane | SEN1 | MAX(-11.1, SECQ-12.5) | dBm | For 30km | ||
| Sensitivity, each lane | SEN2 | MAX(-14.1, SECQ-15.5) | dBm | For 40km | ||
