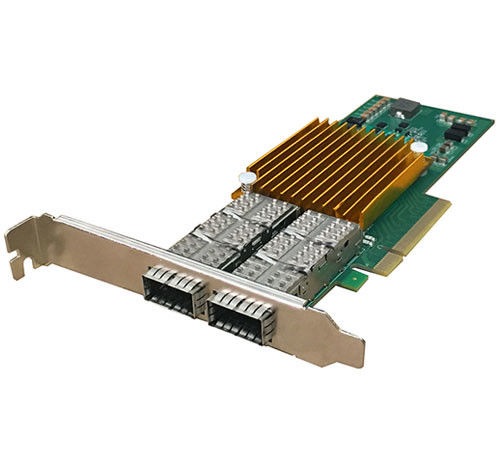

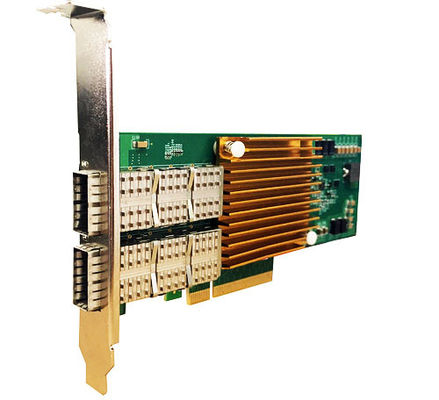

Network Infiniband Pcie Card 40G Dual Port Optical NIC Ethernet Network Adapter
Product Details:
| Place of Origin: | China |
| Brand Name: | Color Optic |
| Certification: | CE, FCC, RoHS |
| Model Number: | CO-4002E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 |
|---|---|
| Price: | USD |
| Packaging Details: | Carton |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, D/P |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| PCI Express Voltage: | +12V ±8% | Storage Temperature: | -20-70°C |
|---|---|---|---|
| Certifications: | CE, FCC, RoHS | Interface Standard: | PCI-Express 3.0specification(8GT/s) |
| Bus Type: | PCIe | Operating System: | Linix/ Windows |
| Data Rate: | 40Gbps | Warranty: | 3 Years |
| Highlight: | Infiniband Pcie Card 40G,Infiniband Pcie Card Dual Port,Network Pcie Card 40G |
||
Product Description
Pcie Network Card 40G Dual Port Optical NIC Ethernet Network Adapter
Product Description:
CO-4002E is a PCI Express X8 dual-port 40GQSFP + Ethernet network adapter developed independently by GRT based on the Intel XL710-BM2 master scheme. At the same time it can be compatible with PCIe X8, PCIe x16 channels.
The company's products have passed FCC, CE, ROHS and other international authoritative certification and national industry certification.
Technical Parameters:
| 40Gigabit QSFP+Ethernet Network Adapter GH4002E | |
| QSFP+ (Quad Small Form factor Pluggable) support |
XLPPI interface supports 40GBase-R PCS and 40Gigabit PMA in order to connect with the QSFP+ 40Gbase-SR4/40Gbase-LR4/4G Direct Attach Cable |
| IEEE Standard/Network Topology: | 40Gigabit Fiber Optic Ethernet, 40Gbase-SR4(850nm LAN PHY) |
| 40Gigabit Fiber Optic Ethernet, 40Gbase-LR4(1310nm LAN PHY) | |
| Operating System Support | |
| Operating System | Windows |
| Linux | |
| General Technical Specifications | |
| Interface Standard |
PCI-Express 3.0specification(8GT/s) |
| Board Size | 165mm X 69mm(6.496" X 2.717") |
| PCB board thickness: 0.062" | |
| PCI Express Voltage | +12V ±8% |
| Bus type | PCI Express X8 Lane |
| Controller | Intel FTXL710-BM2 |
| Bracket | Metal |
| Weight | 170g (5.997 oz) |
| Power Consumption | 2.880 W |
| Storage Humidity | 0%–90%, non-condensing |
| Operating Temperature | 0°C – 45°C (32°F – 113°F) |
| Storage | -40°C–65°C (-40°F–149°F) |
| EMC Certification | FCC PART 15B |
| EN 55022: 2010 | |
| EN 55024: 2010 | |
| EN 61000-3-2:2014 | |
| EN 61000-3-3:2013 | |
| LEDs | |
| LED: | Green light=10Gb linked |
| Yellow light =40Gb linked: Yellow Light | |
| Blu=Activity | |
| Connector | QSFP+ cap: MOLEX, P/N 75586-0010 or compatible |
Applications:
The Infiniband Pcie Card from Color Optic with model number CO- is designed for high-performance computing (HPC) applications that require reliable data transmission and high throughput. This card features an operating temperature range of 0-50°C and is compliant with CE, FCC and RoHS standards. It supports PCI-Express 3.0specification(8GT/s) interface standard and offers a 40Gbps data rate.
This Infiniband Pcie Card is suitable for a wide range of applications, including Windows, Linux, Windows Server and embedded systems. It ensures fast and reliable data transmission and high throughput for high-performance computing. Its compact size makes it suitable for use in space-challenged environments. This card is ideal for mission-critical applications that need to run reliably and efficiently.
The Infiniband Pcie Card from Color Optic is the perfect choice for any application that demands reliable data transmission and high performance. With its advanced features and robust design, it is capable of providing a stable and reliable connection for high-performance computing applications.
FAQ:
A1: The brand name of the Infiniband Pcie Card is Color Optic.
A2: The model number of the Infiniband Pcie Card is CO-.
A3: The place of origin of the Infiniband Pcie Card is China.
A4: The Infiniband Pcie Card is a type of expansion card used to add more features and performance to a computer’s PCIe slot.
A5: The Infiniband Pcie Card provides increased speed and data throughput, reducing latency and improving overall performance.
