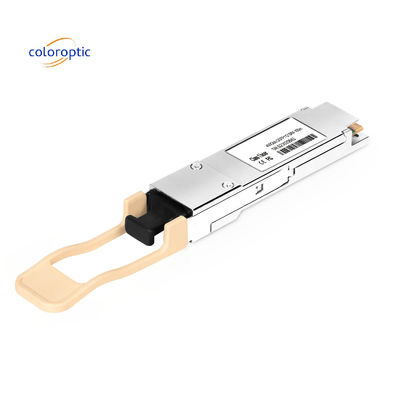

Juniper QDD-400G-SR4 QSFP112-DD MPO MMF Optic Transceiver Module 850nm 100m
Product Details:
| Place of Origin: | China |
| Brand Name: | ColorOptic |
| Certification: | ROHS, CE |
| Model Number: | CO-QD4H85S4C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Seal trays and cartons |
| Delivery Time: | 5 DAYS |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 pieces/month |
|
Detail Information |
|||
| Distance: | 100m | Type Of Media: | MMF |
|---|---|---|---|
| Warranty: | 3 Years | Wavelength (nm): | 850nm |
| Data Rate: | 400G | Technology: | Parallel Optics |
| Fiber Connector: | MPO-12 | Label: | Can Be Customized |
| Highlight: | QDD-400G-SR4,QSFP112-DD Optic Transceiver Module,MMF Optic Transceiver Module |
||
Product Description
Juniper QDD-400G-SR4 Compatible 400GBase-SR4 QSFP112-DD 850nm 100m DOM MPO MMF Optical Transceiver Module
Product Description:
This product is a 400Gb/s Quad Small Form Factor Pluggable-double density (QSFP56-DD) optical module designed for 100m optical communication applications. The module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. Reversely, on the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data.

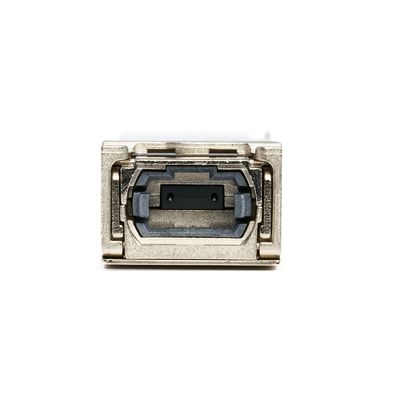

An optical fiber cable with an MTP/MPO-12 connector can be plugged into the module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually cannot be twisted for proper channel to channel alignment. Electrical connection is achieved through a QSFP112-DD MSA-compliant edge type connector.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP112-DD Multi-Source Agreement (MSA) Type 2. It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
Features:
- QSFP112 MSA compliant
- 4 parallel lanes on 850nm center wavelength
- Compliant to IEEE 802.3db Specification
- Up to 100m transmission on multi-mode fiber(MMF) OM4 with FEC
- Operating case temperature: 0 to 70℃
- 4x106.25Gb/s electrical interface (400GAUI-4)
- Data Rate 106.25Gbps (PAM4) per channel.
- Maximum power consumption 9W
- MPO APC Connector
- RoHS compliant
Technical Parameters:
| Parameter | Symbol | Min | Typical | Max | Units | No |
| Operating Case Temperature | TOP | 0 | 70 | degC | ||
| Link Distance with OM3 | D | 0.5 | 100 | m | ||
| Power Consumption | 9 | W | ||||
| Center Wavelength | λC | 840 | 850 | 868 | nm | |
| Average Launch Power, each Lane |
PAVG | -5 | 4 | dBm | ||
| Outer Optical Modulation Amplitude (OMAouter), each Lane |
POMA | -3 | 3.5 | dBm | ||
| Average Receive Power, each Lane |
-6.8 | 4 | dBm | |||
| Receiver Sensitivity (OMAouter), each Lane |
SEN | max(−5, SECQ − 6.4) dBm | dBm |
Applications:
• Data Center Interconnect
• 400G Ethernet
• Infiniband interconnects
• Enterprise networking
